Engineering manual - SAB 193-233-283 S A-frame (including ATEX)
80/175
008831 en 2022.02
Physical and connection data
5.3 Mounting of suction isolation valve
The suction isolation valve is shipped separately from the factory, so it can be installed at vari-
ous positions in the suction line piping to the compressor.
Note: Do not install the valve at the compressor suction side with flow against the cone.
If the isolation valve is installed in this position, uneven flow is generated across the suction
check valve, which is mounted at the inlet to the compressor. This uneven flow causes the
discs in the check valve to strike against the stop pin and eventually damage the inside of the
check valve.
If installing an elbow near the check valve, make sure that the plate is stressed evenly.
If the isolation valve is mounted at the compressor suction side, it should be installed with flow
across the cone. Please design your system piping accordingly.
If the suction isolation valve is installed as prescribed, we recommend a minimum distance to
the check valve of 2 x piping diameter. If it is not possible to install the valve as prescribed, or
an elbow is installed, we recommend a distance of minimum 5 x pipe diameter to prevent dam-
aging the check valve.

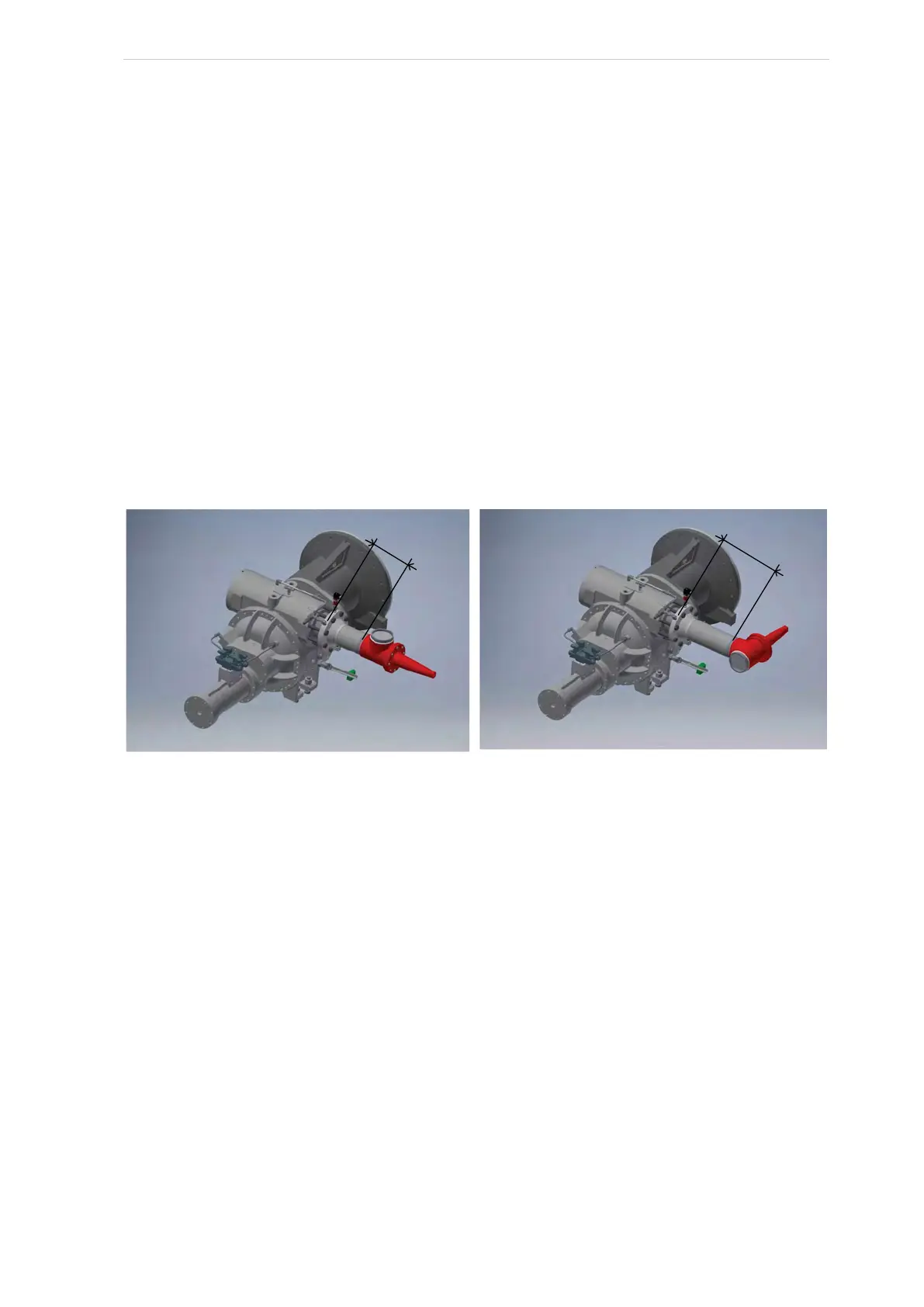

Fig. 55: Correct placement.
Fig. 56: Alternative, but not recommended, placement with lon-
ger distance to check valve.
