Technical data
6. Technical data
This chapter provides the technical data of the equipment. In this chapter technical data is de-
fined as:
• Data for unit
• Data for compressor
• Working range
• Handling the compressor
• Noise level data
• Vibration data
• Test pressure for compressors
This chapter is primarily intended for designers, service engineers, sales personnel and pro-
spective customers.
6.1 Data for compressor units

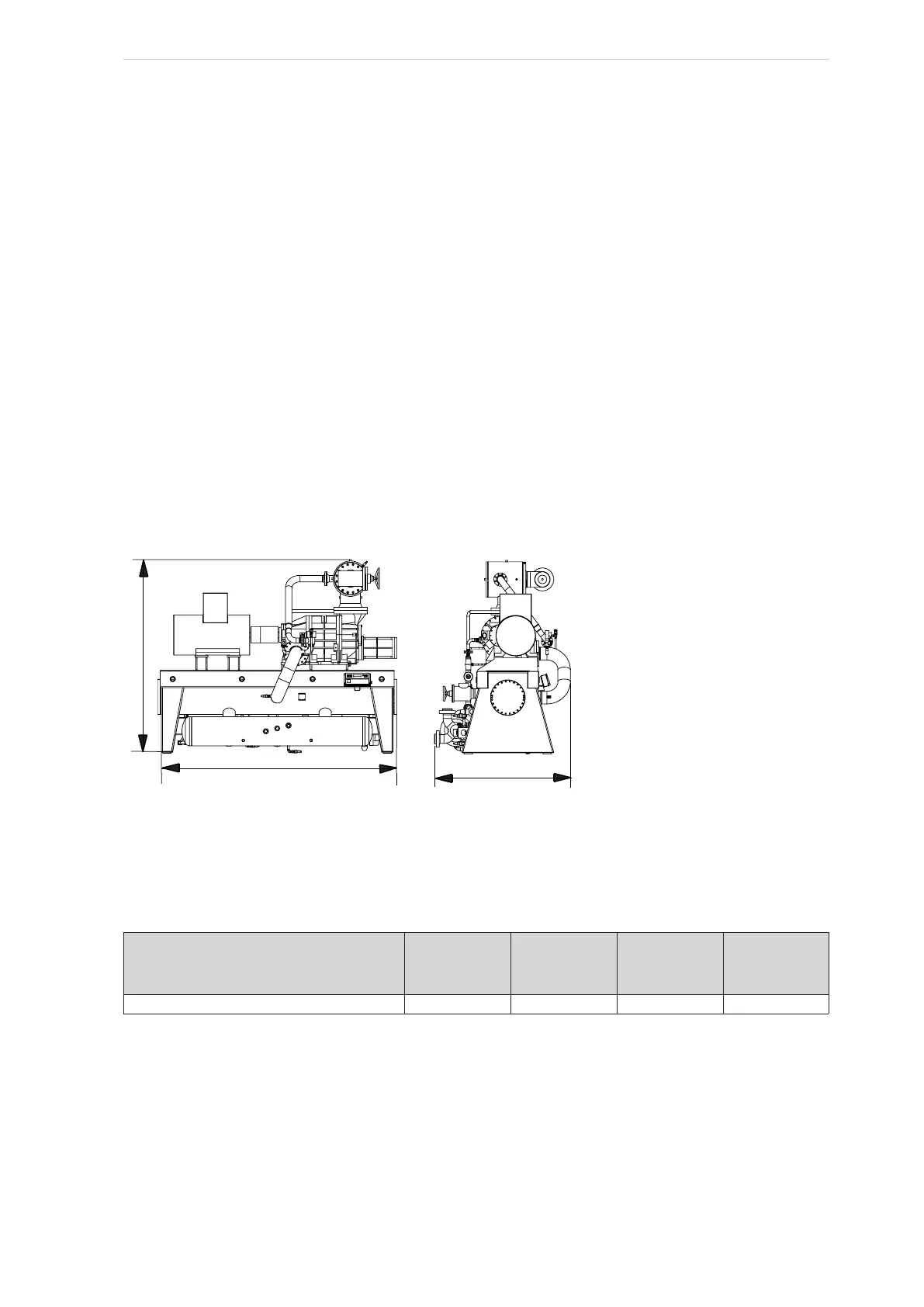

Fig. 64: Dimension sketch
See also complete dimensioned sketches of the individual compressor types and units.
Oil separator OHU 04123
Compressor type
Width
mm *
Length
mm
Height
mm
Max. net.
weight
kg.*
SAB 193 OHU 04123 1475 3250 1900 2800
Table 15: Unit dimension data
Height
Lenght
Width
