ECO MULTI SYSTEM Unit Specifications
0755_M _I
36
54 54
161
26
15
57
100
177
230
615
25 R
155
107
205
260
213
76
67
156
C
B
A
Side panel
Refrigerant tubing space for downward tubing
Air inlet
Rear-tube outlet
Air outlet
Indoor unit : 9, 12, 18, 25 Type
9. Floor-Standing Type (F Type)

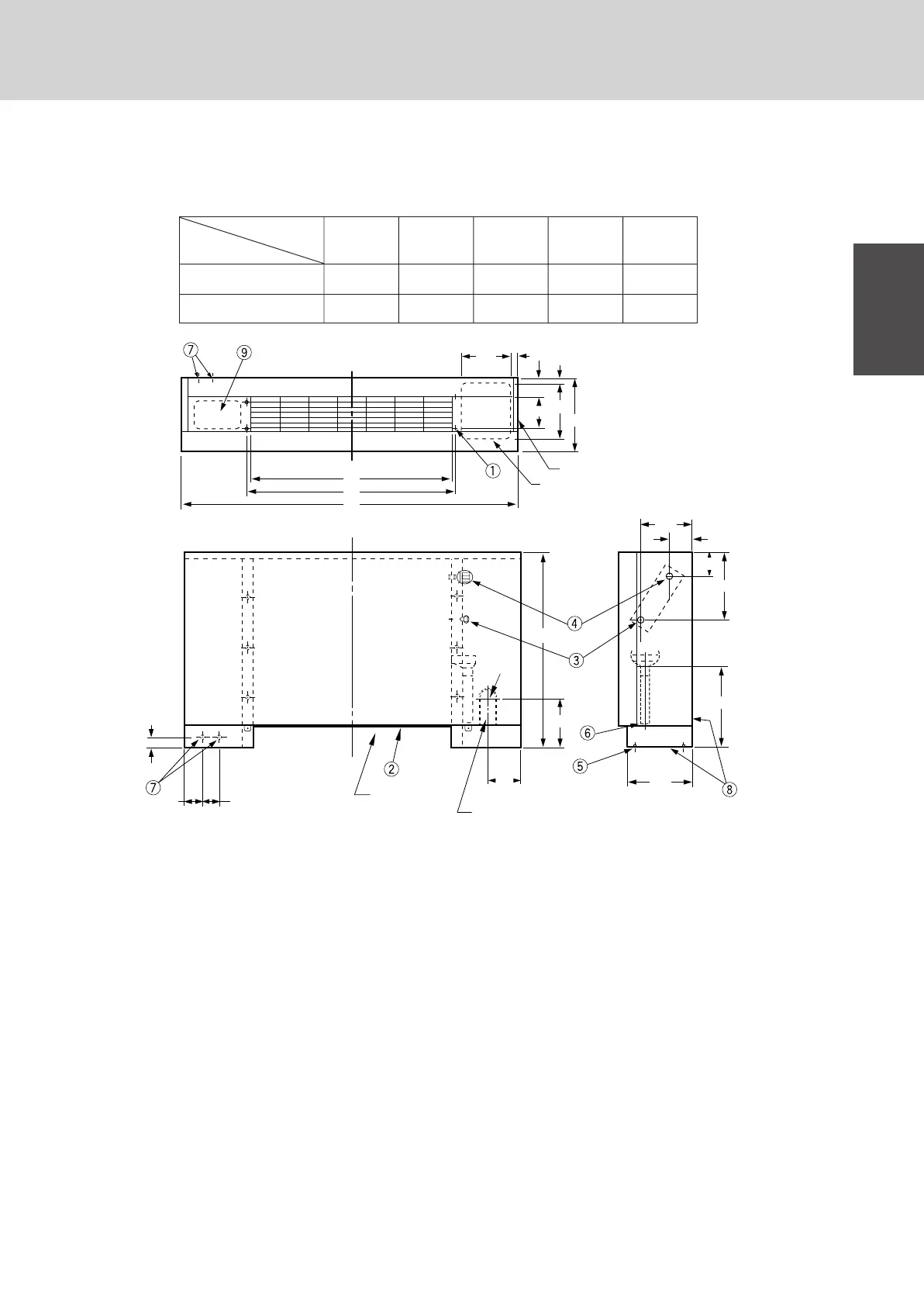

9-4. Dimensional data
ABC
Narrow Wide
tube tube
9, 12 1065 665 632 9.52 12.7
18,25 1380 980 947 9.52 15.88
Size
Type
1 4-Ø12 hole (For fastening the indoor unit to the
floor by screws.)
2 Air filter
3 Refrigerant connection outlet (narrow tube)
4 Refrigerant connection outlet (wide tube)
5 Level adjusting bolt
6 Drain outlet (20 A)
7 Power cord outlet (downward, rear)
8 Refrigerant tubing outlet (downward, rear)
9 Location for mounting the remote controller
(remote controller is attachable in the room)
