II - 13
Processes and Functions
SM830063
2

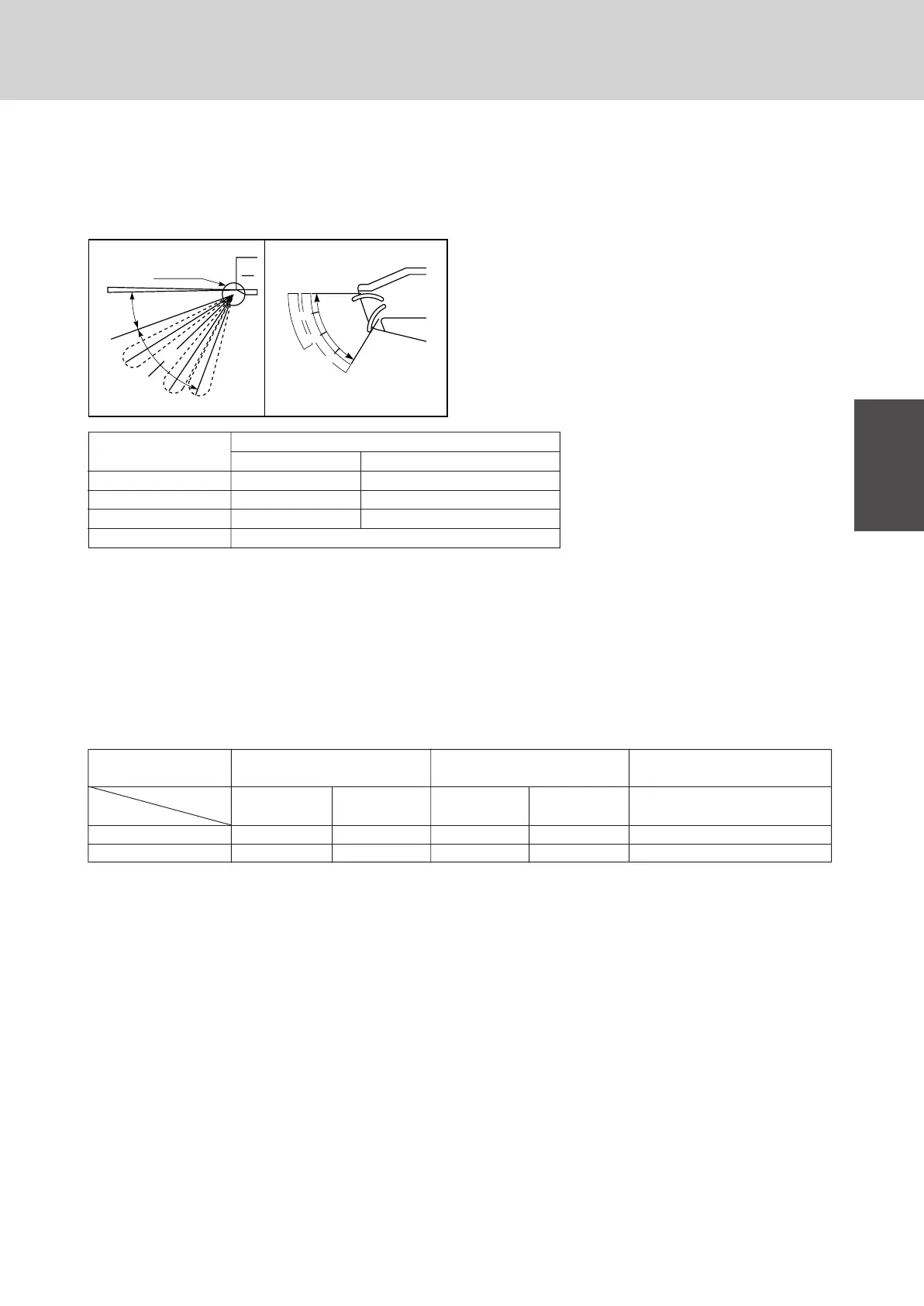

14. Auto-flap Control
14-1. X, S, T Type
The auto-flap controls the air flow to one of the five vertical levels.
X type (4-way), S type (2-way) T type
Operation mode
Flap position
Automatic setting Manual setting
Cooling / drying F2 F1 · F2 · F3 · swing
Fan F2 F1 · F2 · F3 · F4 · F5 · swing
Heating F4 F1 · F2 · F3 · F4 · F5 · swing
Heating preparation F2 (Original position after release)
(1) When the unit is stopped, the auto-flap returns to the F5 position.
(2) When the airflow direction is set manually (optional setting), the auto and swing settings will be released. To return
to automatic airflow direction, change the operation mode.
(3) Once auto-flap is set, it is input into the microcomputer memory.
(4) When the operation mode is changed, the unit begins a sensing operation. (If a search for sensing points does not
succeed in one minute, only the flap moves.)
Remote controller Wired remote Wireless remote controller System controller
configuration controller (RCS-SH80TG) (RCS-SH80TGWL) (SHA-KC64TG)
System
Single Group control Single Group control
Auto-flap
Swing ‡‡ ‡‡ % (*1)
Air direction setting ‡‡ ‡‡ % (*1)
*1: Only possible when remote control unit is not used.
For group control, the settings are for the complete group.
14-2. K Type
When the “SWEEP” button is pressed, swing starts and when it is pressed again, the flap stops in place.
20°
Auto-flap
40°
F1
F2
F3
F4
F5
1267_M_I
F1
F5
60°
Heating F1~F5
Cooling F1~F3
F2
F3
F4
To Next Page
