ECO MULTI SYSTEM Unit Specifications
0756_M_I
D
229
155
66
125
260
402
539
147
205
100
56
D
A
B
C
166
374
147
30
30
70
616
46
Air outlet
(
Internal dimension)
Air inlet
Indoor unit : 9, 12, 18, 25 Type
10. Concealed Floor-Standing Type (FM Type)

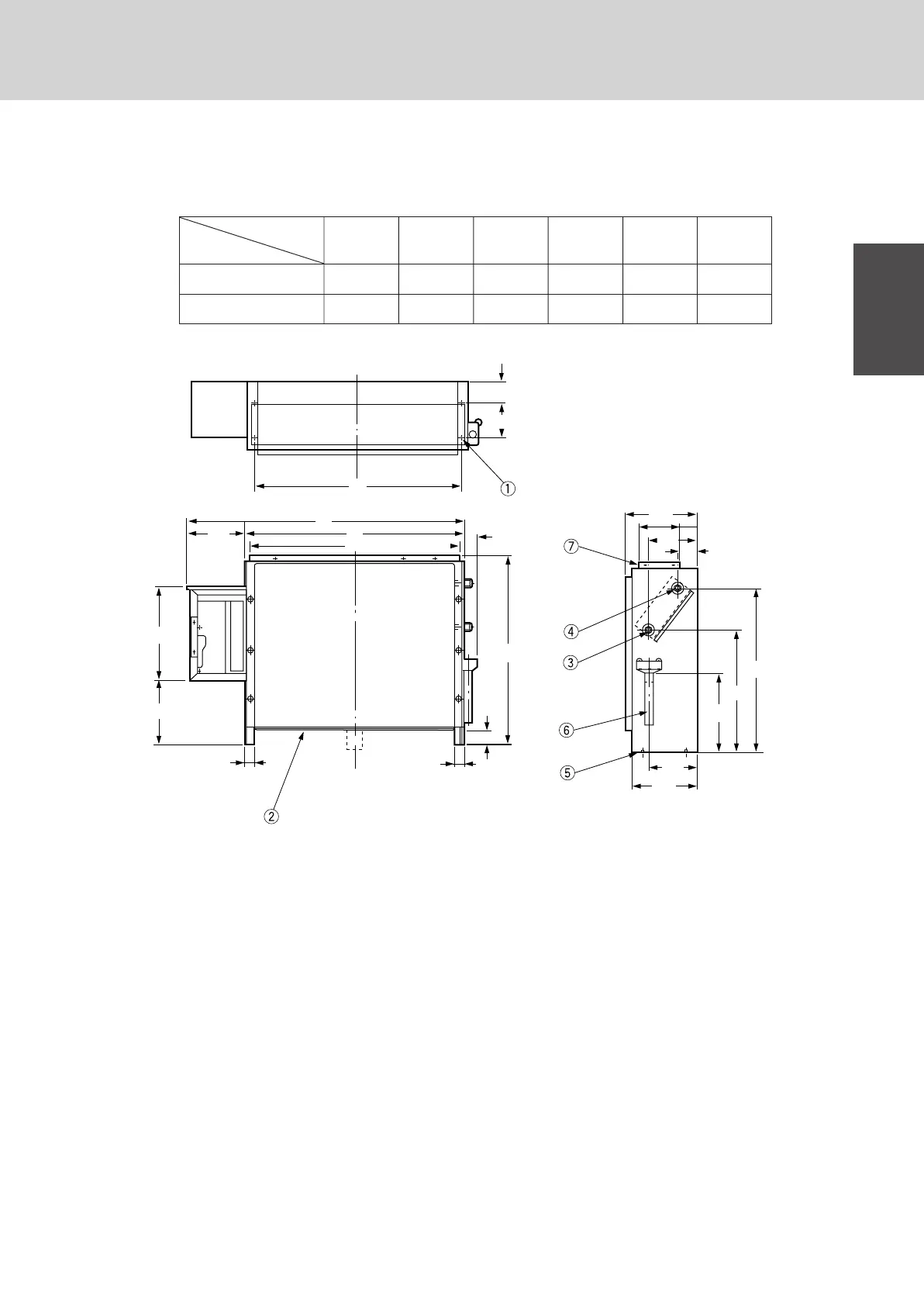

10-4. Dimensional data
ABCD
Narrow Wide
tube tube
9, 12 858 692 672 665 9.52 12.7
18,25 1173 1007 1002 980 9.52 15.88
Size
Type
1 4-Ø12 hole (For fastening the indoor unit to the
floor by screws.)
2 Air filter
3 Refrigerant connection outlet (narrow tube)
4 Refrigerant connection outlet (wide tube)
5 Level adjusting bolt
6 Drain outlet (20 A)
7 Flange for the air-outlet duct
