Sharp PN-80TC3 Service Manual

PN-L803C_80TC3 FIRMWARE UPDATE PROCEDURES 5 - 12

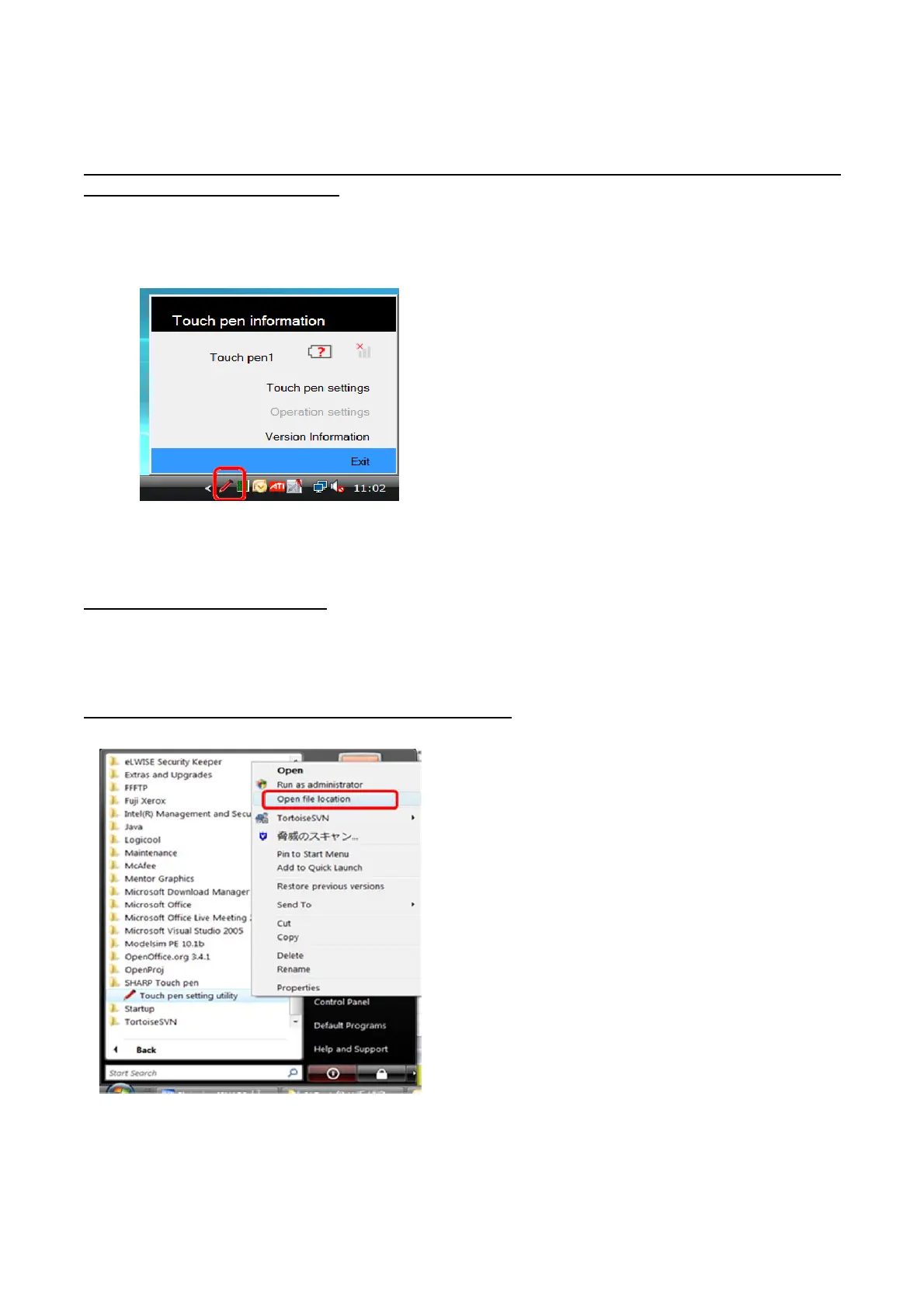

5. TOUCH PEN, TOUCH PEN ADAPTOR FIRMWARE UPDATE
5-1. INSTALL TOUCH PEN UTILITY
1) Prepare the PC and install the touch pen utility.
2) Install Touch pen utility according to guide, and reboot PC.
After rebooting, touch pen utility is automatically run on user mode.
Left-click Touch pen utility icon in task tray, and select [Exit] to exit the touch pen utility.
3) Click [All Programs]-[Start up] from [START] menu and delete [Touch pen setting utility] not to start up the
Touch pen setting utility when the PC is started up next time.
5-2. PREPARE FIRMWARE DATA
1) Prepare firmware data for touch pen and that for pen adapter and save them to the PC.
Firmware data for touch pen : pen_fw_ut.****.zbp (**** is version No.)
Firmware data for pen adapter : dongle_fw_ut.****.zbd (**** is version No.)
5-3. START TOUCH PEN UTILITY ON THE SERVICE MODE
1) Click [All Programs]-[SHARP Touch pen] from START menu, and right-click [Touch pen setting utility], then select [Open file location].
