PN-L803C/80TC3 SERVICE MENU/VARIOUS SETTING TOOL OPERATING PROCEDURES 4- 15
8. SERIAL NUMBER WRITING PROCEDURES
8-1. OPERATING CONDITIONS OF THE SERIAL
NUMBER SETTING TOOL
The operating conditions of the Gamma setting read tool of the
information display are as follows.
OS
(32bit/64bit)
- Windows 8/8.1
- Windows Vista
- Windows 7
Communication
port
- RS-232C port which is recognized as COM
port (with communication speed: 9600,
19200, 38400bps)
- LAN(100 BASE-TX / 10BASE-TX)
■ When connected to the information display
with a LAN cable
Connect the monitor and the PC by the cross cable or the straight
cable through the hub. When the monitor and the PC is connected
directly by the cross cable, the settings for the monitor and the PC
needs to be done.
When the monitor is connected to the network, ask your system
administrator about how to set the PC for connecting the monitor.
(MEMO)
This tool cannot be operated correctly when the monitor is in the
power waiting state or the signal waiting state. In this case, send
the input signal to the monitor or set the power management to
OFF.
8-2. START-UP OF THE SERIAL NUMBER
SETTING TOOL
Press [Serial Number] button of the Service Tool Launcher.

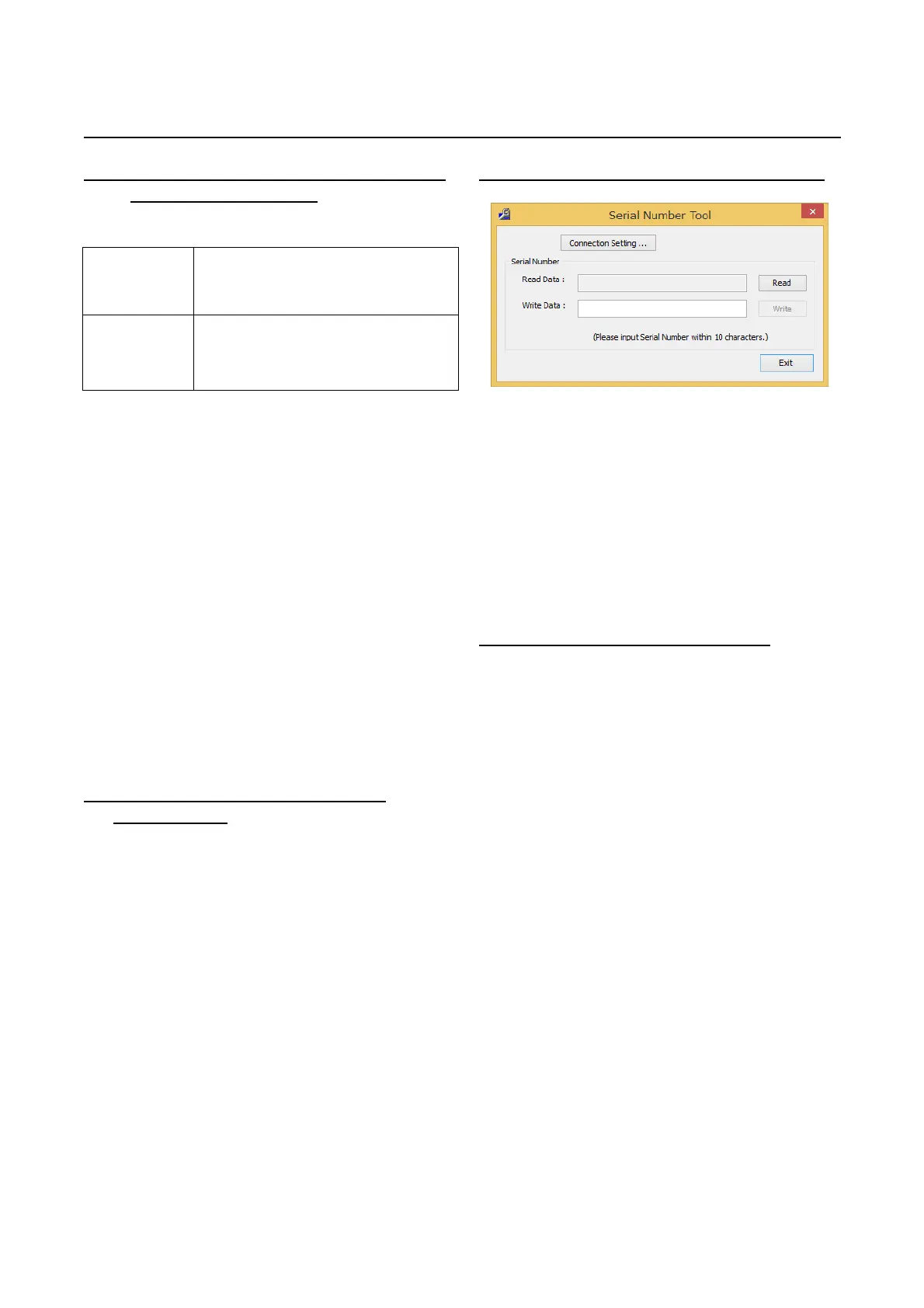

8-3. SERIAL NUMBER SETTING PROCEDURES
The procedures of setting serial numbers with use of the Serial
Number Setting Tool are as follows.
1) Press [Connection Setting...] button to configure the
communication settings.
2) Input the serial number you need to set in the field of Write
Data.
3) Press [Write] button.
4) Press [Read] button, and confirm that the set serial number is
displayed in the Read Data field..
8-4. SERIAL NUMBER CHECK METHOD
Press [Display] button on the remote controller to indicate the
display information, and check the serial number.
