Sharp PN-80TC3 Service Manual

PN-L803C/80TC3 DISASSEMBLY AND ASSEMBLY 6 - 3

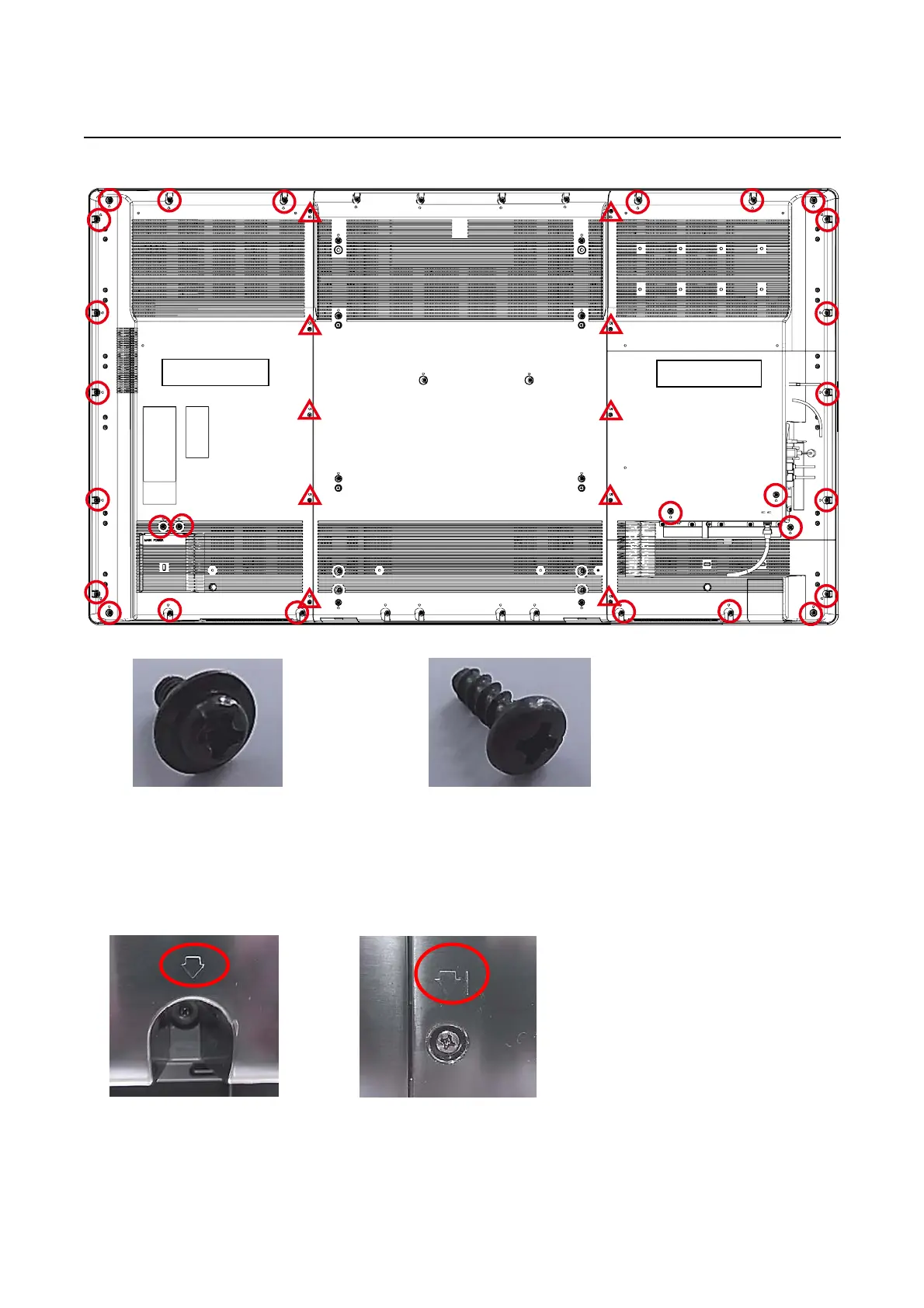

3. REAR COVER L/R/C
1) Remove the 27 screws O (M3x6 Cup Screw) and the 10 screws 󰅿(M3x8 Bind Screw) Then, remove the
Rear Cover R and L.
Screw O M3x6 Cup Screw Screw󰅿 M3x8 Bind Screw
<MEMO>
- There are raised arrow marks on the Rear Covers. It is possible to find out where are screw O and
screw 󰅿.
[Screw O: Arrow] [Screw 󰅿: Arrow and line]
Rear cove
r
R
Rear cove
r
L
