PN-L803C/80TC3 DISASSEMBLY AND ASSEMBLY 6 - 10
8. AFE PWB

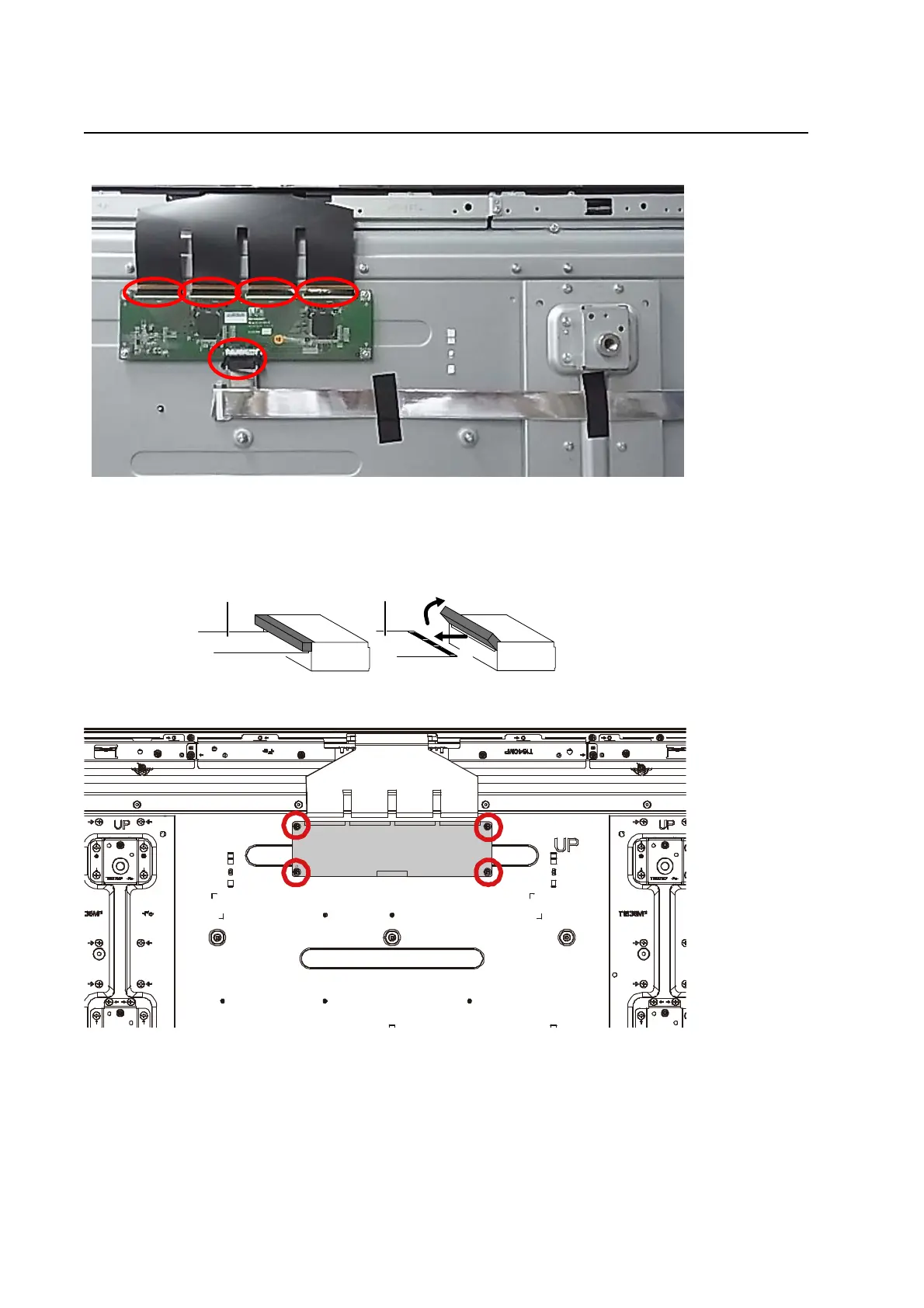

1) Remove the Rear Cover L/R/C.
2) Remove the five connectors.
<CAUTION>
When the FPC connector is removed, lift up the black part of the connector to unlock the connector.
3) Remove the four screws (M3x6 SW+W) and remove AFE PWB.
FPC
FPC
①
②
