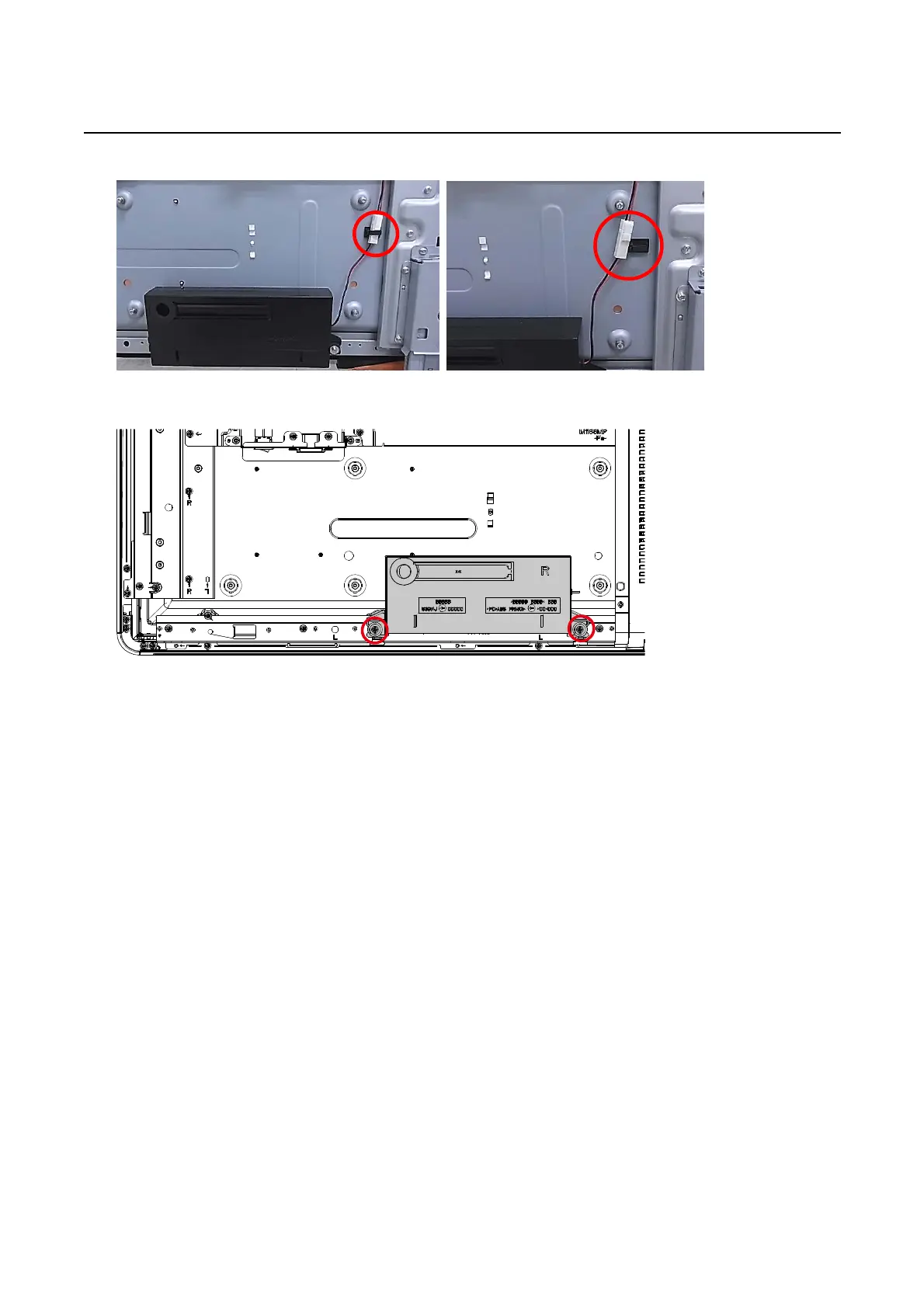

PN-L803C/80TC3 DISASSEMBLY AND ASSEMBLY 6 - 28
14. SPEAKER R
1) Remove the Rear Cover R.
2) Open the connector fixing the Speaker harness and disconnect the connector of the Speaker harness.
3) Remove the Speaker R.
