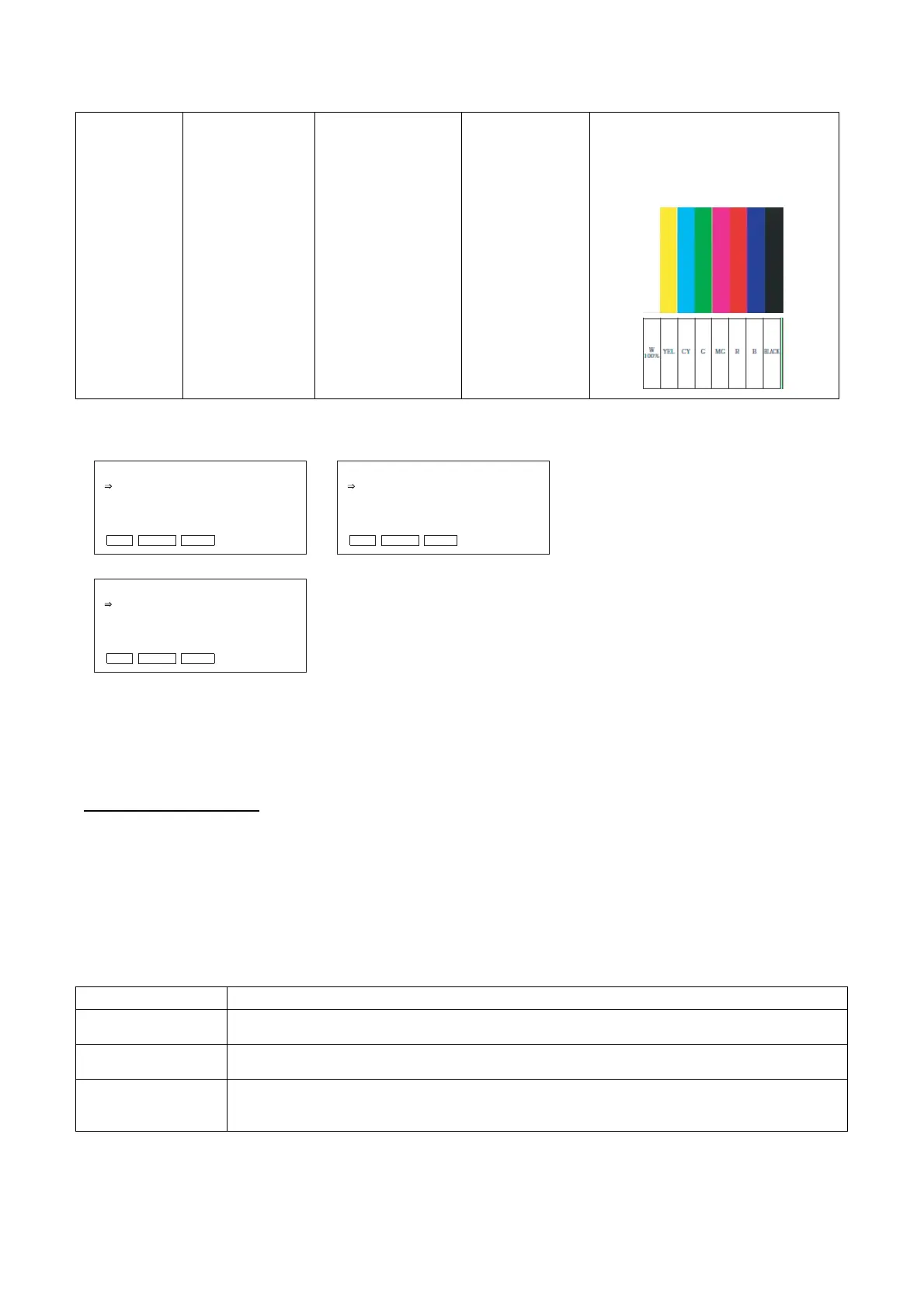

PN-L803C/80TC3 SERVICE MENU/VARIOUS SETTING TOOL OPERATING PROCEDURES 4- 4
D-SUB1
[VIDEO]
VIDEO signal
(NTSC3.58)
0.714 Vp-p
（From Pedestal to
White）
NTSC3.58 Full color bar (WHITE100%/ Degree of
Color saturation 100%)
*Recommended signal generator:
ASTRODESIGN Products VG-849,
VG-859
3) Display SERVICE MENU 2
4) Select "CALIBRATION" with [VOL + ()], [VOL - (↓)] keys and press [ENTER] key. CALIBRATION screen appears.
5) Select "AUTO CALIBRATION" with [VOL + ()], [VOL - (↓)] keys. Press [ENTER] key.
Calibration is performed and stored in EEPROM.
The adjustment result is displayed on the ADC OFFSET1/ADC OFFSET2/ADC GAIN items.
6) Select "OK" with [VOL + ()], [VOL - (↓)] keys. Press [RETURN] key. CALIBRATION screen is closed.
4. FACTORY RESET
Resets the user adjustment value, USAGE TIME and the Operation log to the factory preset values.
<CAUTION>
*When resetting is made, the operation logs are also deleted. If necessary, save the operation logs before resetting.
1) Display the SERVICE MENU 2.
2) Select "FACTORY RESET" with [VOL + ()], [VOL - (↓)] key, and press [ENTER] key.
3) Select "ON" with [BRIGHT - ( )],[BRIGHT + ()] keys, and press [ENTER] key. "RESETTING" is displayed.
4) Turn the main power switch off and then back on.
(MEMO)
ITEM RESET ITEMS
FACTORY RESET Used to reset the all settings to the factory setting.
（It includes USAGE TIME, Operation log, and Error log）
ALL RESET 1 Used to reset the user adjustment values, the usage time, and the operation logs to the factory setting.
（It excepts USAGE TIME, Operation log and Error log）
ALL RESET 2 Used to reset the user setting values except the LAN settings, the communication speed, network settings,
service/support settings and SNMP settings to the factory setting.
（It excepts USAGE TIME, Operation log and Error log）
CALIBRATION D-SUB (ANALOG)
AUTO CALIBRATION
ADC OFFSET1 R : 999 B : 999G : 999
ADC OFFSET2 R : 999 G : 999 B : 999
ADC GAIN R : 999 G : 999 B : 999
OK CANCEL RESET
CALIBRATION SCREEN WHEN PC3/PC4 ANALOG MODE
CALIBRATION COMPONENT (D-SUB)
AUTO CALIBRATION
ADC OFFSET1 Y : 999 Cr : 999Cb : 999
ADC OFFSET2 Y : 999 Cb : 999 Cr : 999
ADC GAIN Y : 999 Cb : 999 Cr : 999
OK CANCEL RESET
CALIBRATION SCREEN WHEN AV3 COMPONENT MODE
CALIBRATION COMPONENT (D-SUB)
AUTO CALIBRATION
ADC OFFSET1 : 999
ADC OFFSET2 : 999
ADC GAIN : 999
OK CANCEL RESET
CALIBRATION SCREEN WHEN AV5 VIDEO MODE
