PN-L803C/80TC3 DISASSEMBL
Y
AND ASSEMBL
Y
6 - 14

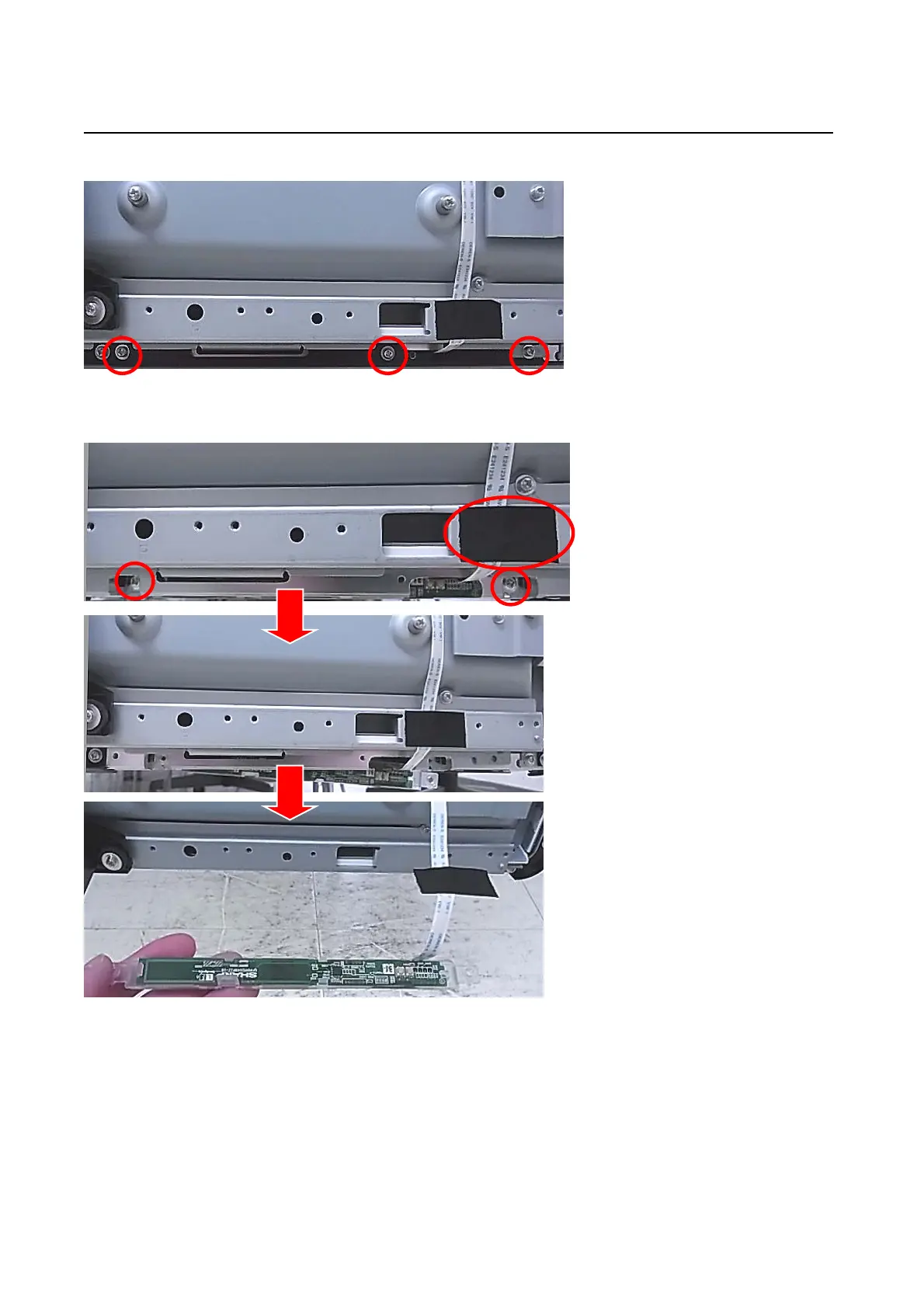

11. KEY PWB
1) Remove the Rear Cover L.
2) Remove three screws (M3x6 SW+W)
and remove the Frame Bottom Short.
3) Remove the tape fixing the Key FFC harness for
the Key PWB.
And remove the two screws (M3x6
Cup Screw (Silver)).
Then, remove the Key
Angle Unit.
157
159
