Configuration (WBM)
5.13 Monitoring
LOGO! CMR2020, LOGO! CMR2040
Operating Instructions, 10/2016, C79000-G8976-C356-03
109
Monitoring functions
The monitoring functions

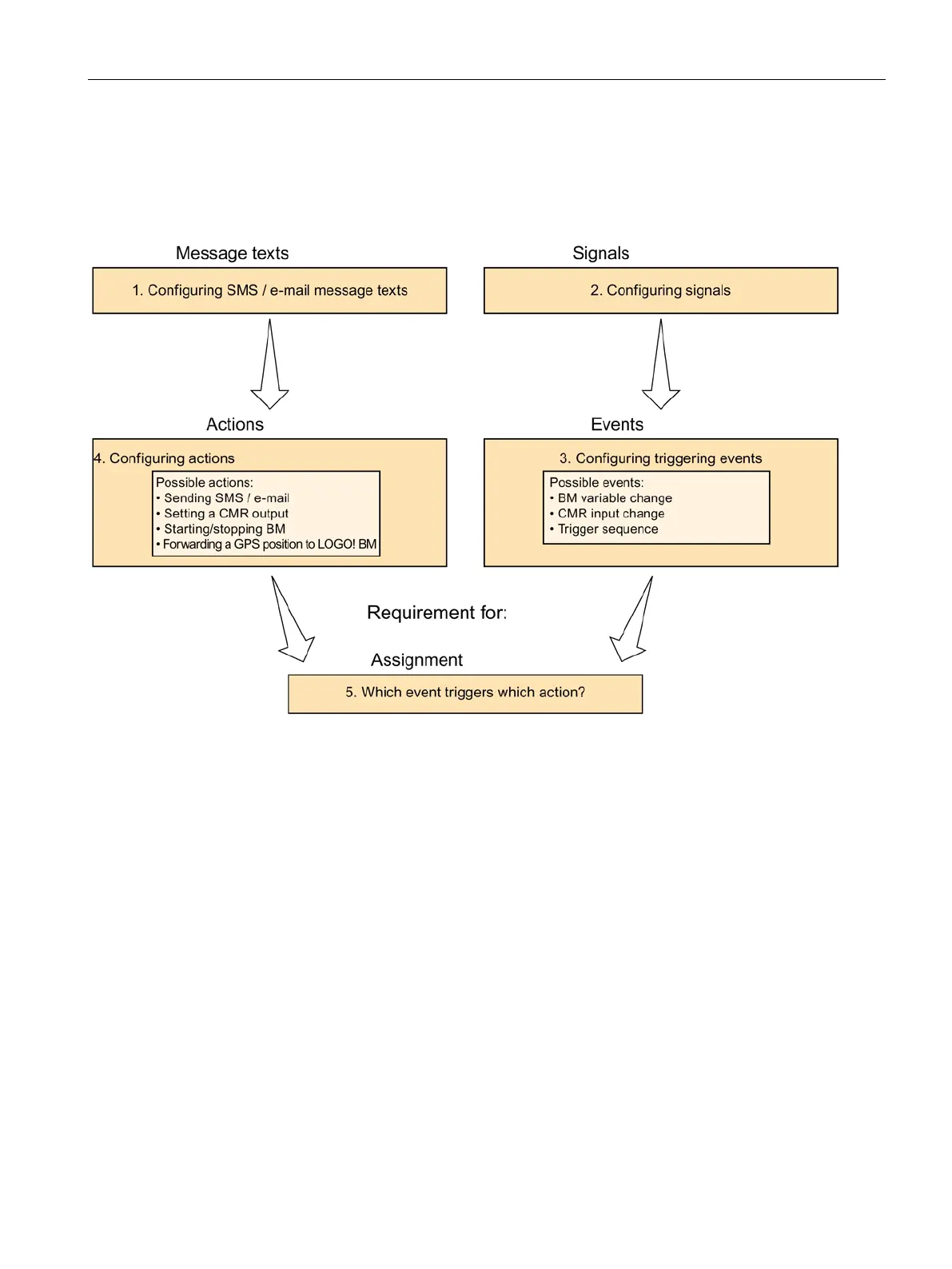

Figure 5-4 Monitoring - procedure for configuration
Tabs of the group "Monitoring" - Overview.
●
The "Overview" tab shows all configured signals and their current status.
When shipped, the inputs and outputs of the CMR have already been created as signals.
Signals of the signal source LOGO! BM are displayed in red if there is no connection
between the CMR and BM.
●
tab
A connection between the CMR and BM is only established if you have selected the
"Active" option.
If the option is disabled, no connection to the BM is established.
– Enter the IP address of your BM.
– Check whether the entered IP address can be reached by the CMR.
– Query interval for process image: Specify the intervals at which the process image of
the BM is read by the CMR.
