Application and functions
1.4 Application examples
LOGO! CMR2020, LOGO! CMR2040
Operating Instructions, 10/2016, C79000-G8976-C356-03
25
● The services used are activated in the CMR via the WBM.
● You have contracts with suitable service providers.

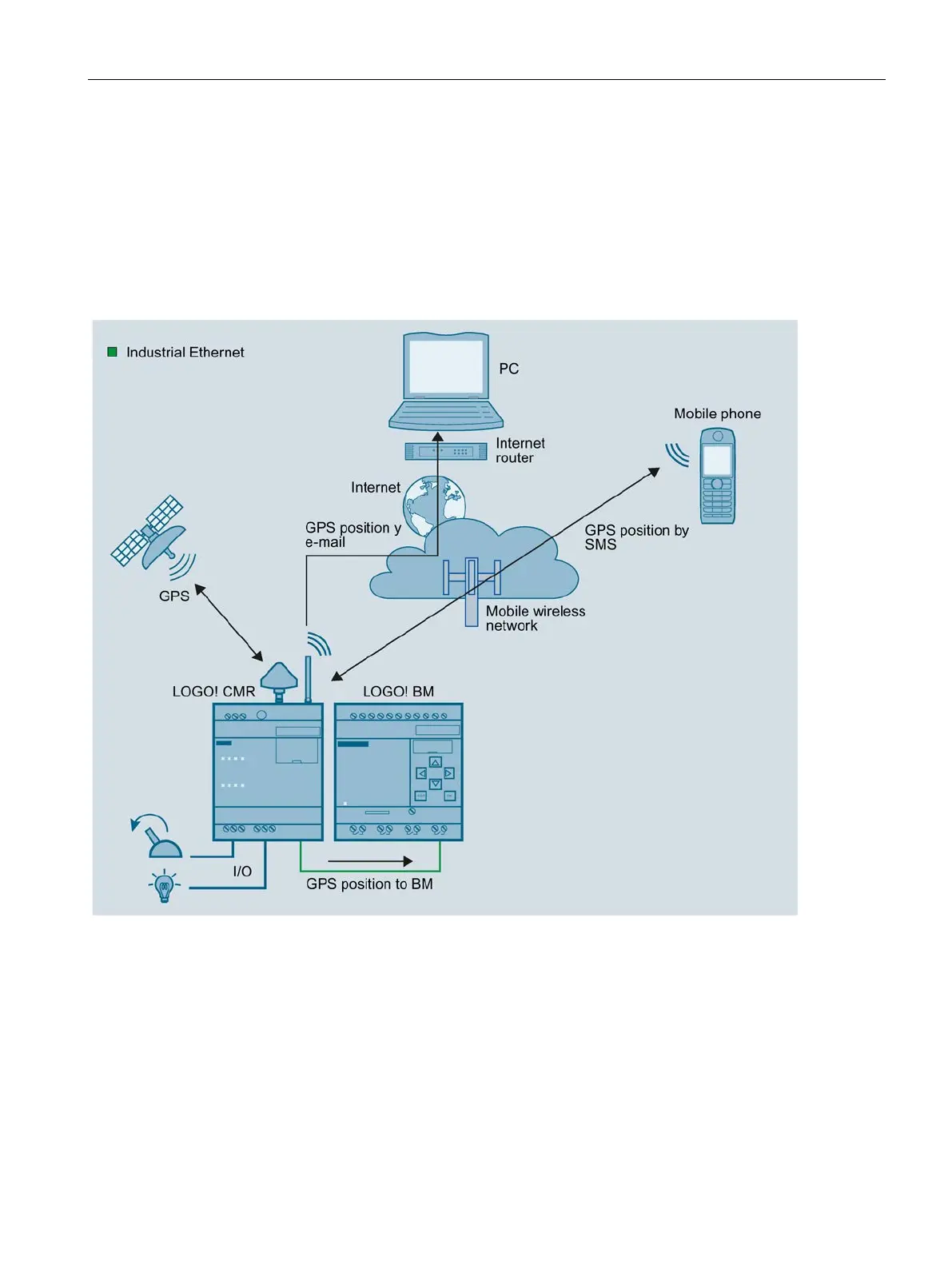

Figure 1-5 Position detection (GPS)
The CMR is equipped with a GPS interface via which the position data of the LOGO! station
can be determined. If a GPS antenna is connected to the GPS interface, the following
functions are available to you:
● Detecting position data:
– Due to an event at an input of the CMR.
– Due to an event from the BM.
– Due to a received SMS message (with the mobile wireless antenna connected)
