Siemens SINUMERIK 828D Service Manual

Service cases - hardware
4.8 SINAMICS S120 Combi
Hardware and Software
Service Manual, 03/2011, 6FC5397-5DP40-0BA0
123
4.8.4 How to mount an S120 Combi Power Module
Precondition
The reinforcement plates are installed in order to mount an S120 Combi Power Module.
Mounting
Procedure:
1. Mount the self-clinching flush head studs M6.
2. Position the S120 Combi Power Module and initially tighten the M6 nuts by hand with
0.5 Nm.
3. Then tighten the nuts in the specified sequence 1 to 4 with 10 Nm.
0RXQWLQJSDQHO
0VHOIFOLQFKLQJIOXVKKHDG
VWXGV
,QVWDOODWLRQFXWRXWIRUDQ
H[WHUQDOIDQVXEDVVHPEO\
:DVKHU
0QXW





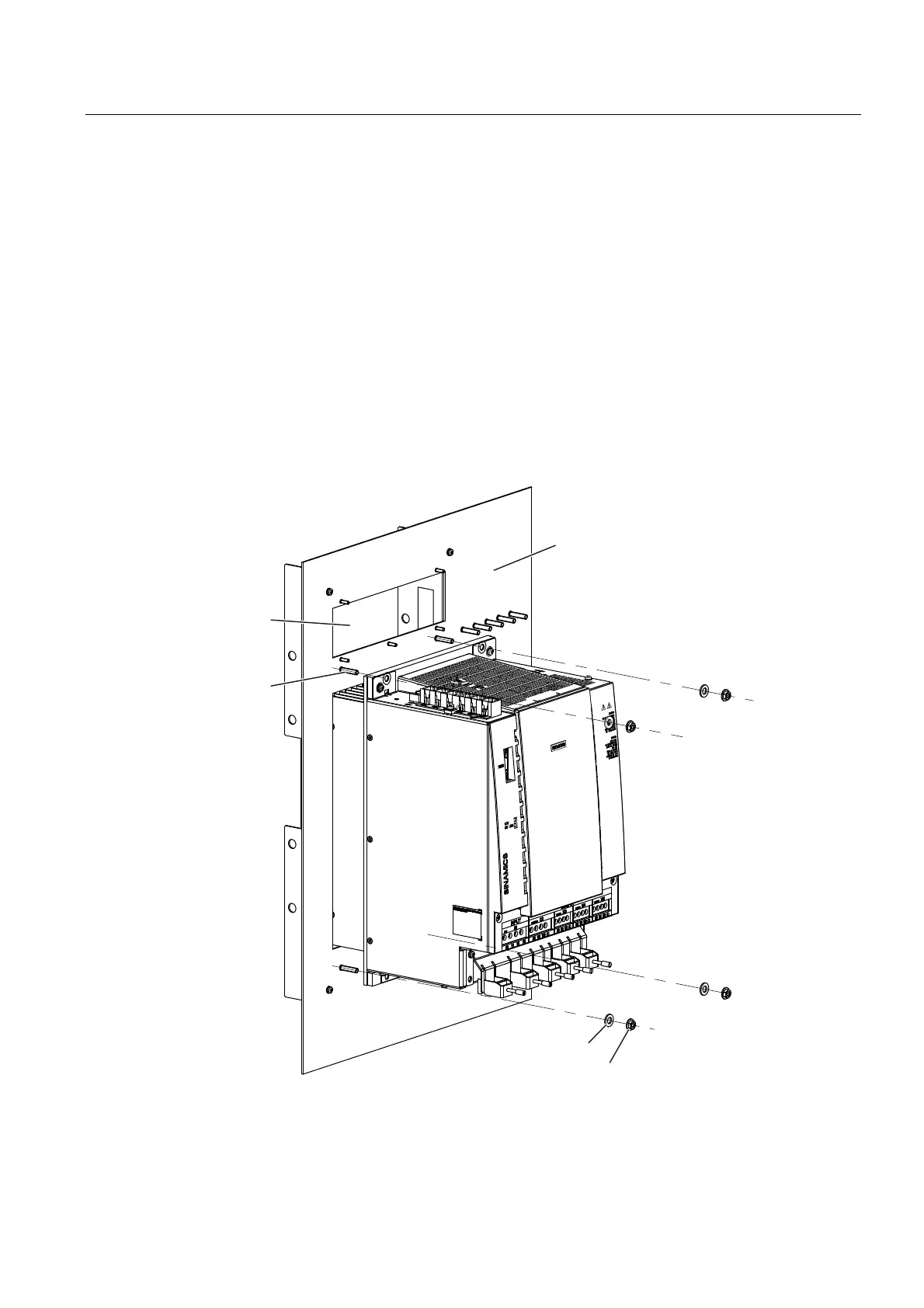

Figure 4-28 Installing an S120 Combi Power Module
