Siemens SINUMERIK 828D Service Manual

Service cases - hardware
4.15 Sensor Modules External
Hardware and Software
190 Service Manual, 03/2011, 6FC5397-5DP40-0BA0
Procedure:
1. Release the encoder connecting cable of the SME20.
2. Withdraw the DRIVE-CLiQ cable from the SME20.
3. Release the protective conductor connection of the SME20.
4. Remove the defective SME20.
Installing
Procedure:
1. Now install the new SME20.
2. Screw on the protective conductor connection.
3. Reconnect the encoder connecting cable.
4. Connect the DRIVE-CLiQ cable.
CAUTION
Connections/cables
Only measuring systems where the measuring system power supply is not grounded may
be connected.
The maximum DRIVE-CLiQ cable length is 100 m.
The maximum encoder cable length is 3 m.
In order to guarantee the degree of protection, all of the plug connectors must be correctly
screwed into place or snapped into place.
4.15.3 SME25 connections
Connections
3URWHFWLYHJURXQGFRQQHFWLRQ
01P
'5,9(&/L4LQWHUIDFH
(QFRGHUV\VWHP
LQWHUIDFH
SROH

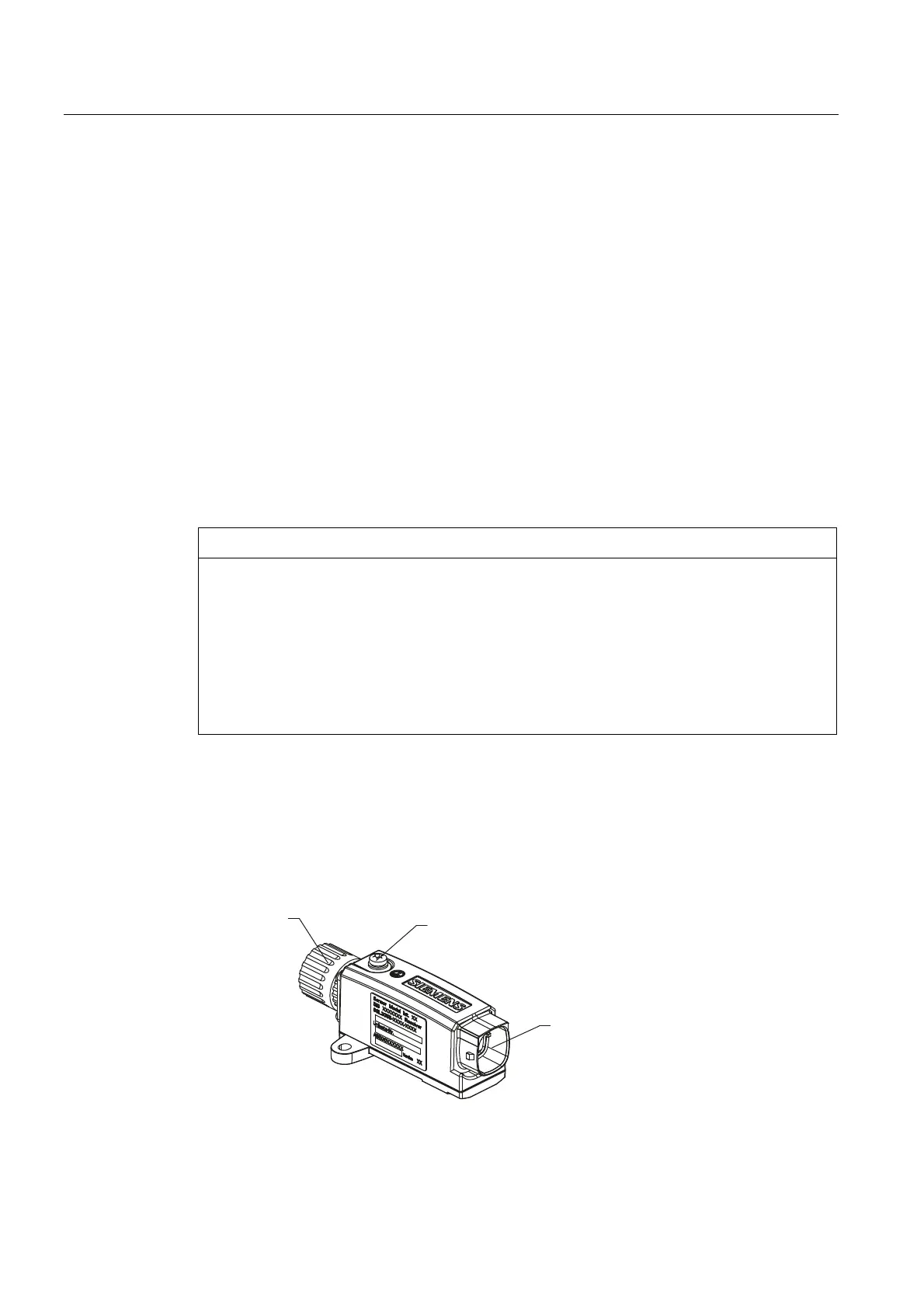

Figure 4-44 Connections SME25
