Service cases - hardware
4.4 Machine control panels
Hardware and Software
96 Service Manual, 03/2011, 6FC5397-5DP40-0BA0

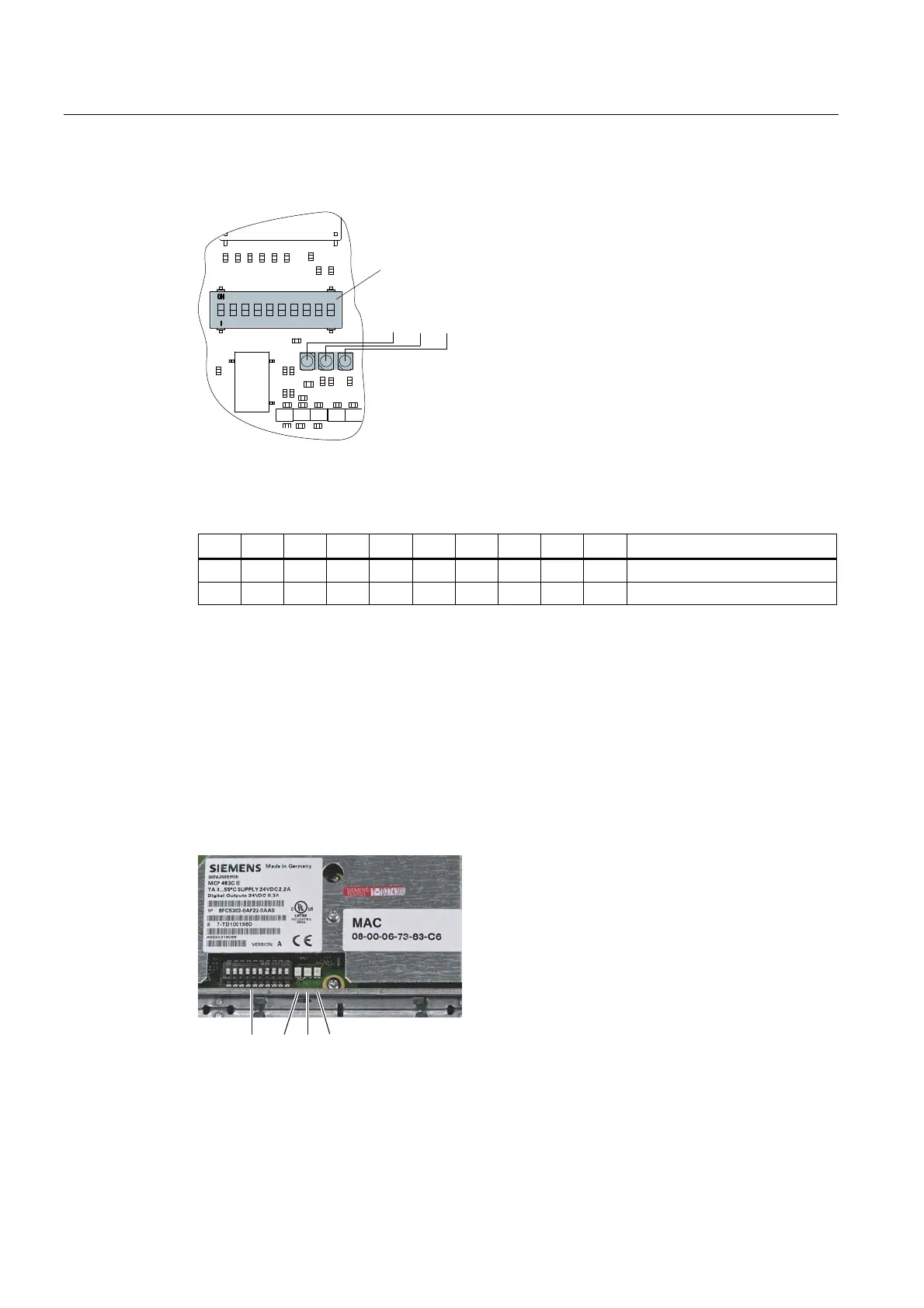

DIP switch S2
6
+ + +
Figure 4-9 Switch S2
Switch S2 defines the IP address of the machine control panel:
1 2 3 4 5 6 7 8 9 10 Device name
on on
on off on off off off off off mcp-pn64
For SINUMERIK 828D, the IP address = 192.168.214.64 must always be assigned to the MCP.
4.4.4 Status displays, MCP 483C PN
LED status displays
For the MCP 483C PN there are 3 LEDs in a row (H1 - H3), which provide information about
the module state:
6 + + +
Figure 4-10 Status displays
