Siemens SINUMERIK 828D Service Manual

Service cases - software
3.5 Mini boot system on the CompactFlash Card
Hardware and Software
48 Service Manual, 03/2011, 6FC5397-5DP40-0BA0
3.5 Mini boot system on the CompactFlash Card
Application
If the system CompactFlash Card hardware is defective, then it must be replaced. The
replacement card is an empty CompactFlash Card without any system software and without
any user software and cannot be used as system CompactFlash Card as it is without any
additional preparation.
Mini boot system image
"Configuration data" are supplied on the toolbox CD of the SINUMERIK 828D, which include
in the scope of delivery of mini boot system image:

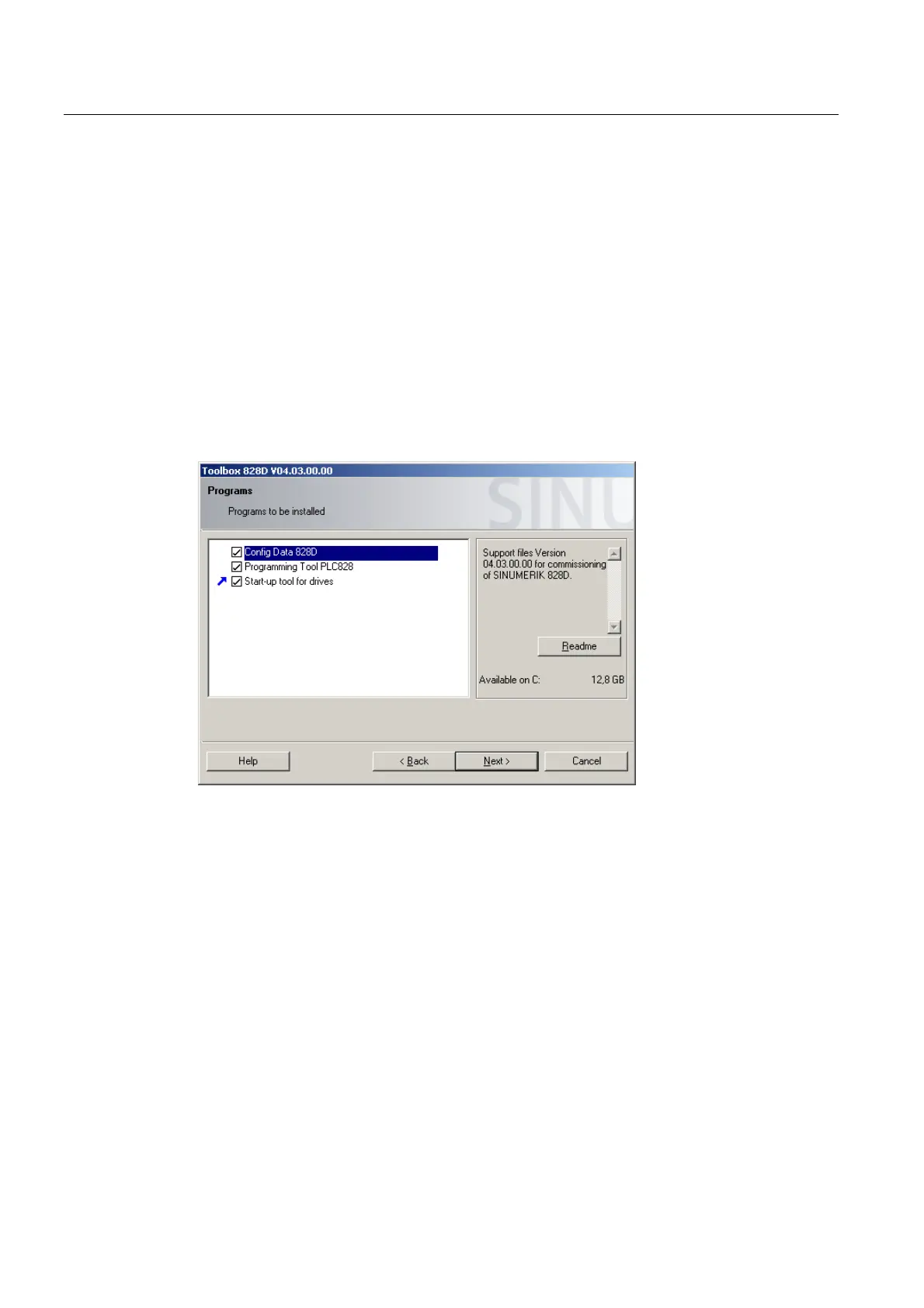

Figure 3-2 Toolbox selection
This program must be installed in order that the image of the mini boot system is installed on
the PC/PG.
3.5.1 This is how you generate a mini boot system
Precondition
The default path to install the mini-boot system is:
C:\Program Files\Siemens\Toolbox 828D\V02060xx00\RecoverySys
The file name of the boot system is: minsys.img
The minsys.img file is copied to an empty replacement card using the RCS commander.
