Siemens SINUMERIK 828D Service Manual

Service cases - hardware
4.8 SINAMICS S120 Combi
Hardware and Software
130 Service Manual, 03/2011, 6FC5397-5DP40-0BA0
6. Install the red 24 V connectors in accordance with the supplied description of the
component to be connected.
7. Close the protective cover of the connected component.
8. Mount the front plate on the S120 Combi.
4.8.8 To connect the second component
Connecting a second component

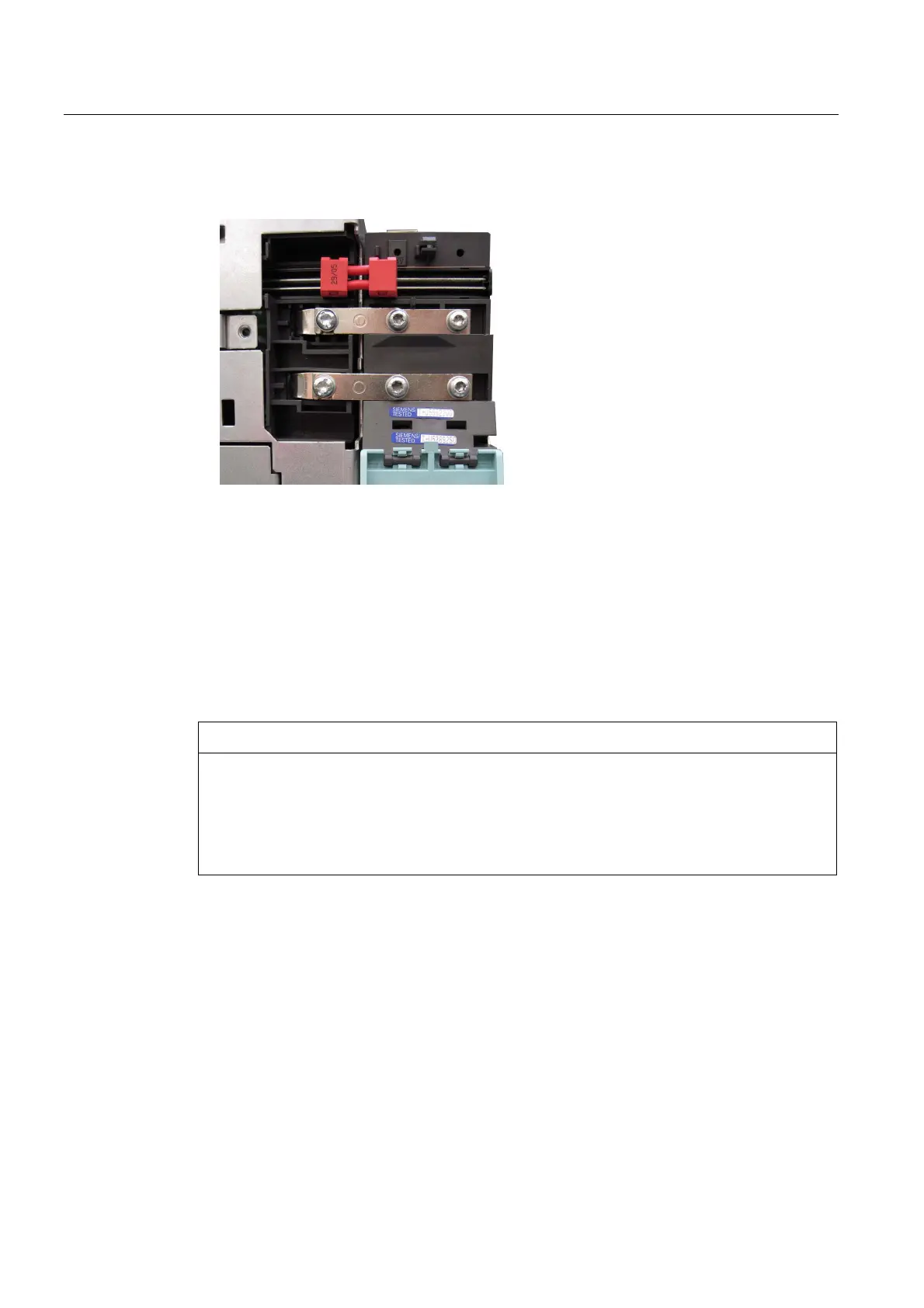

A second component is connected as follows to the DC link busbars and the 24 V busbars:
CAUTION
DC link
Before commissioning the drive line-up, it must be ensured that following items are
complied with:
 The DC link side cover is inserted at the outer component (touch protection).
 The protective covers of the connected components are closed.
