Siemens SINUMERIK 828D Service Manual

Service cases - hardware
4.14 Sensor Modules Cabinet
Hardware and Software
Service Manual, 03/2011, 6FC5397-5DP40-0BA0
187
4.14.8 This is how you install an SMC30
Installing
5RWDWHDVFUHZGULYHUZLWKDZLGHEODGHWR
PPLQWKHVORWRIWKHPRXQWLQJVOLGHWKURXJKr
RUDOWHUQDWLYHO\SUHVVWKHOXJGRZQZDUGV


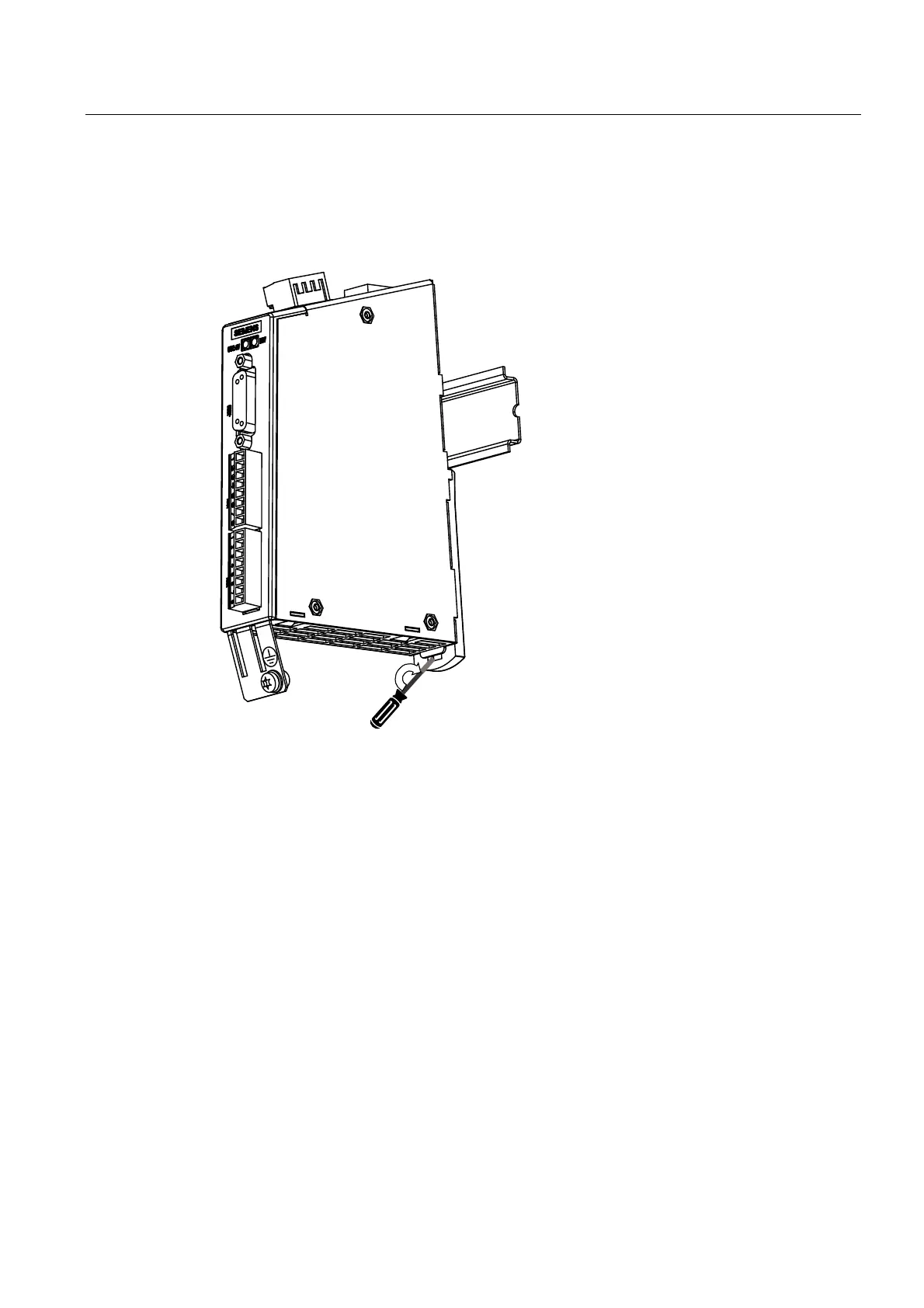

Figure 4-42 Installing SMC30
Procedure:
1. Place the components on the mounting rail.
2. Then, swivel the components on the mounting rail so that the mounting catches click into
place at the rear.
3. Slide the components along the mounting rail to either the left or right up to their final
position.
4. Screw on the protective conductor connection.
5. Screw on the encoder connecting cable to X520 or X521 / X531, if required, also the
shield connection.
6. Insert the DRIVE-CLiQ cable at X500.
7. Insert connector X524 for the electronics power supply.
