Siemens SIPROTEC 5 Hardware Description

[td_io233x, 1, en_US]

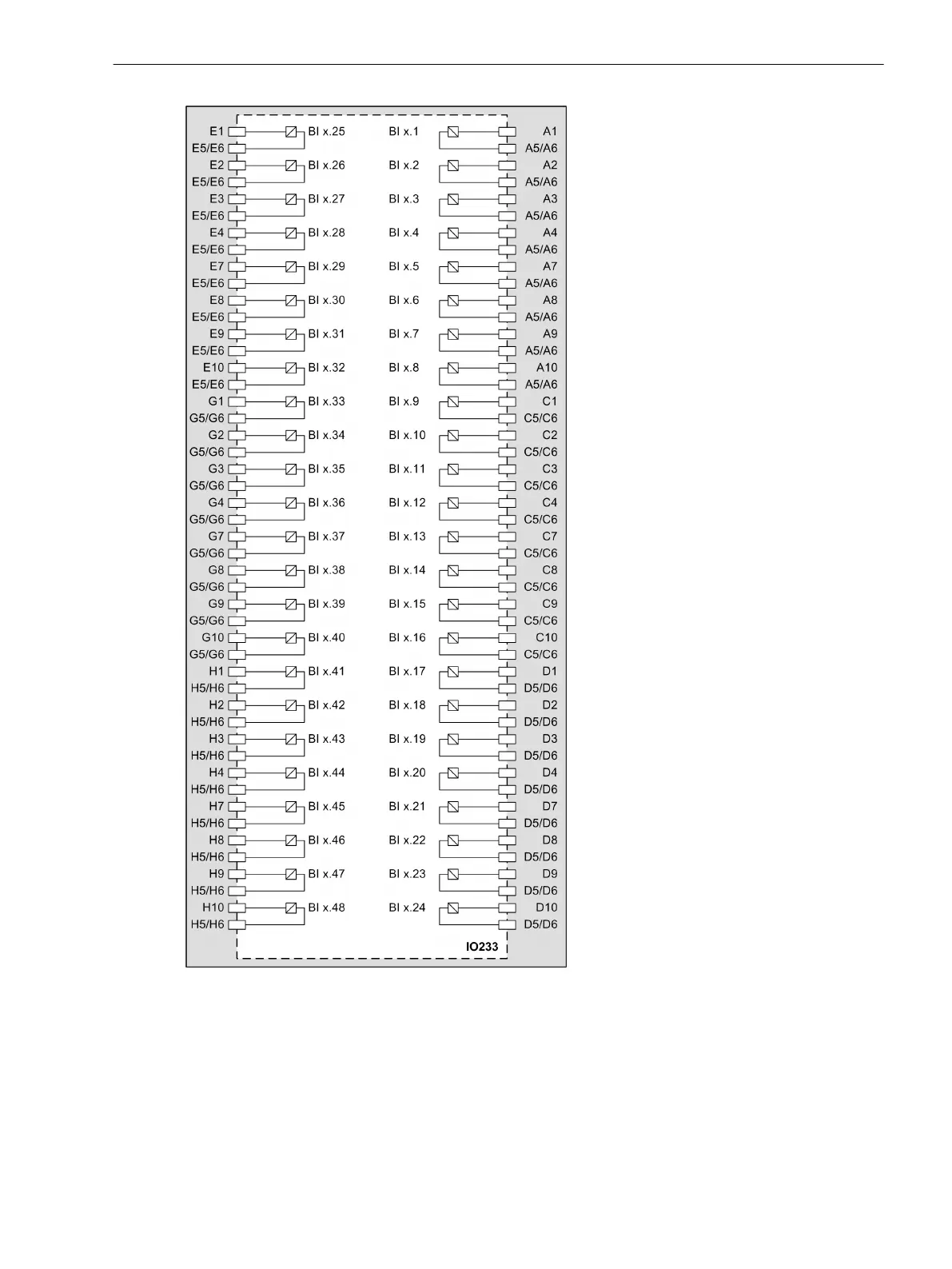

Figure 3-60
IO233 – Connection Diagram
Input and Output Module PB201
Description
The process-bus assembly is used for the reception of Sampled Measured Values (SMV) according to
IEC 61850-9-2 via 6 optical interfaces.
3.2.19
3.2.19.1
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 101
C53000-G5040-C002-C, Edition 10.2017
