Siemens SIPROTEC 5 Hardware Description

Terminals
Overview of Terminals
[dwio211p-211112-01.tif, 2, --_--]

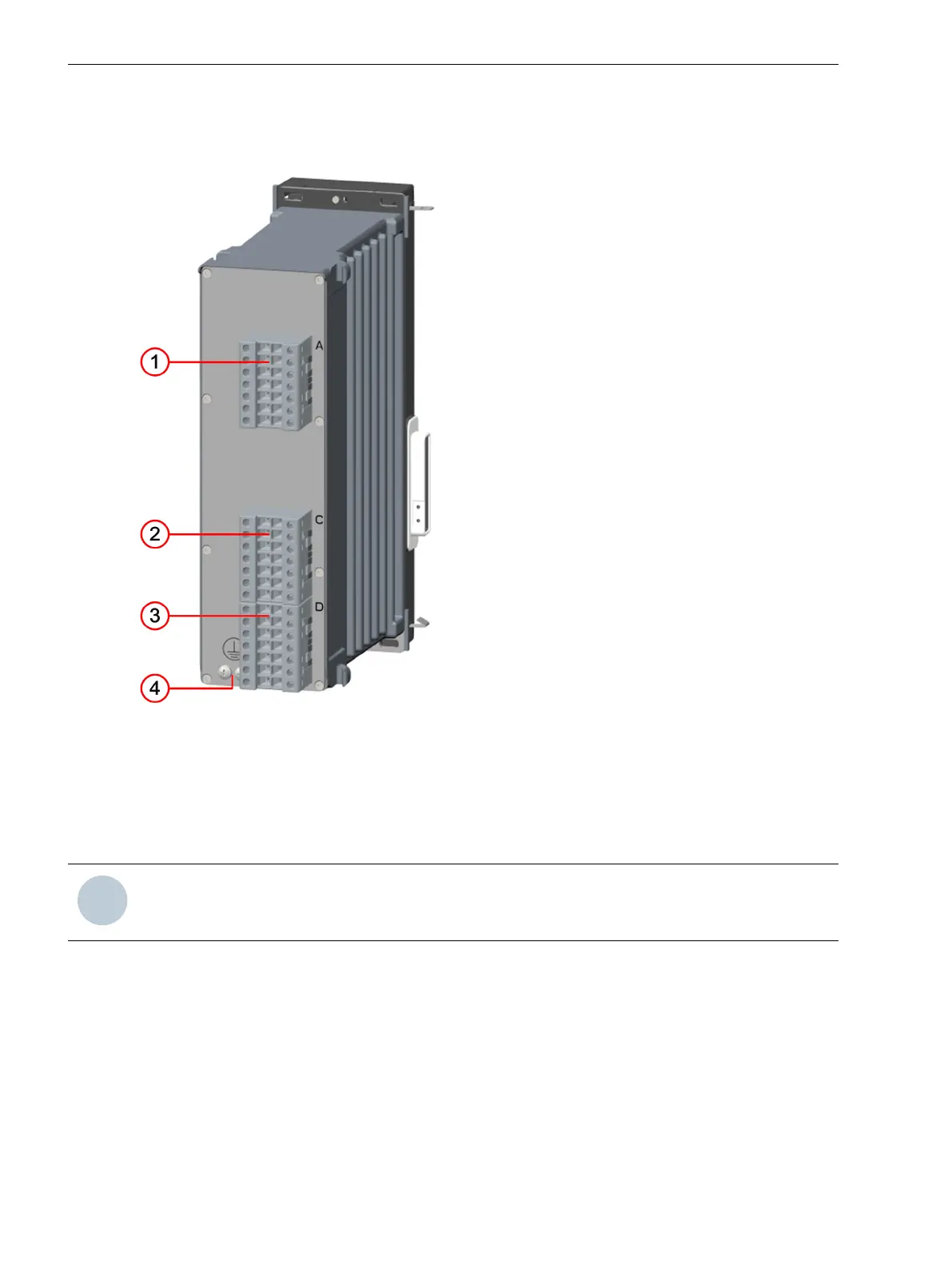

Figure 3-43
IO211 Terminals
(1) Voltage terminal xA
(2) Voltage terminal xC
(3) Voltage terminal xD
(4) Protective grounding terminal
i
i
NOTE
x corresponds to the slot in the 19-inch rack.
3.2.12.2
Electronic Modules
3.2 Input and Output Modules of the Modular Devices
84 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017
