(1) Device bus of the outermost right expansion module of the 1st device row
(2) Sealing plate
(3) Adaptor angle
(4) 2 fastening screws
[dw_schiene-020414-01, 1, --_--]
Figure 3-9 Angle Rail
(1) Angle rail
(2) 2 rubber seals
Plug-In Module Assembly with Integrated Power Supply CB202
Description
The plug-in module assembly CB202 is a module with an internal power supply. The CB202 module is used in
an expansion module. 3 plug-in module positions (M, N and P) are available for installation of plug-in
modules. The plug-in modules can be installed in the following arrangements:
Plug-In Module Position
M N P
Configured with
3 measuring-transducer
modules
Measuring-transducer
module
Measuring-transducer
module
Measuring-transducer
module
Configured with
2 measuring-transducer
modules and
1 communication module
Measuring-transducer
module
Measuring-transducer
module
Communication module
Measuring-transducer
module
Communication module Measuring-transducer
module
Configured with
1 measuring-transducer
module and
2 communication modules
Measuring-transducer
module
Communication module Communication module
Combinations that do not occupy all plug-in module positions are also possible.
NOTE
A communication module cannot be plugged into the plug-in module position M.
The CB202 module communicates with the base module using a communication connection. This communi-
cation connection is established with a special connecting cable. This connecting cable (CAT5 FTP patch cable)
is always included in the scope of delivery of the CB202 module and need not be ordered separately.
The following 2 variants are available for the rated voltage range:
•
DC 24 V to 48 V
•
DC 60 V to DC 250 V and AC 100 V to AC 230 V (50 Hz and 60 Hz)
The CB202 PCB assembly assembly can be used in the 1st and 2nd device rows.
3.1.4
3.1.4.1
Electronic Modules

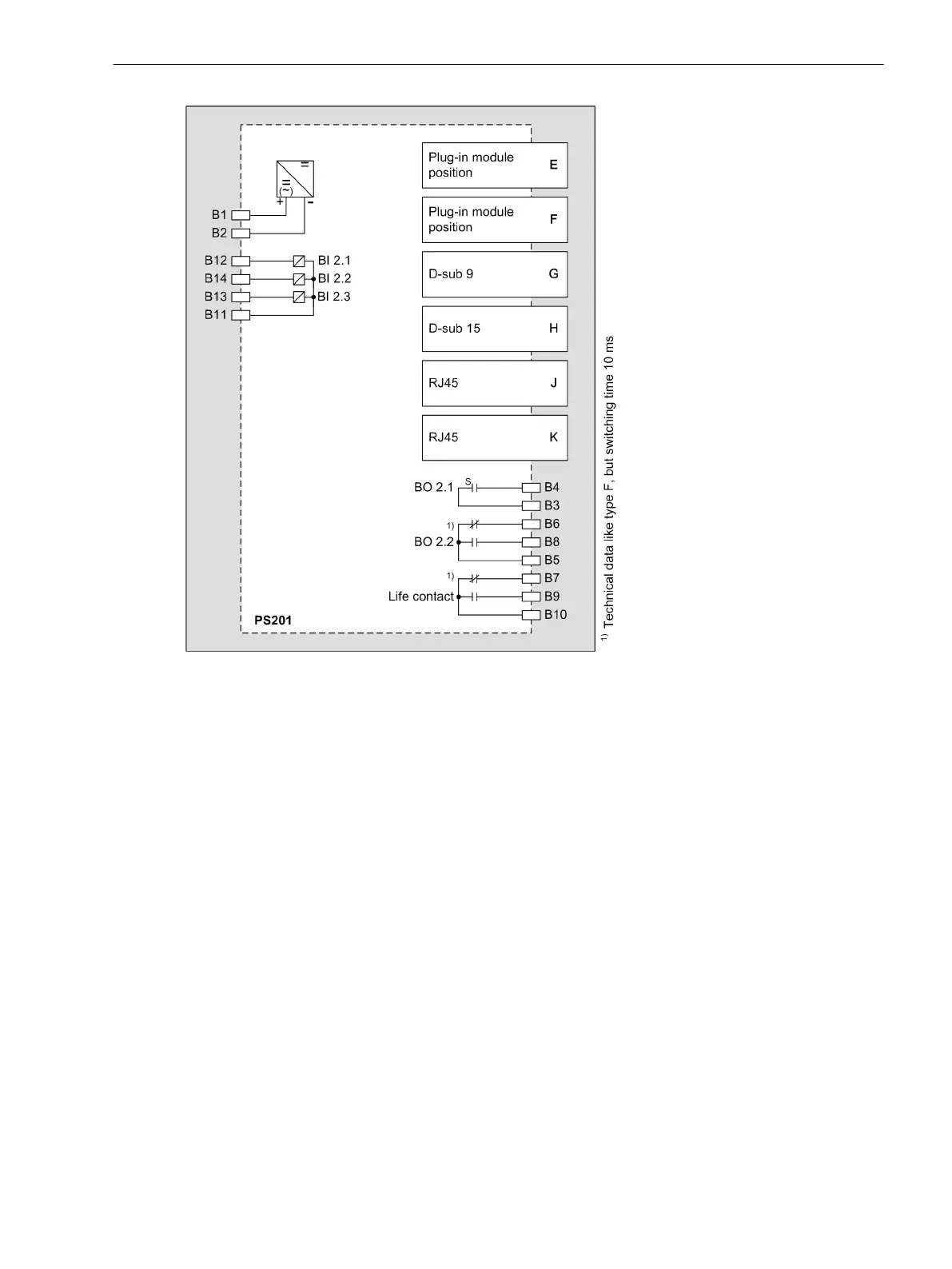

3.1 Power-Supply Modules of the Modular Devices
SIPROTEC 5, Hardware Description, Manual 51
C53000-G5040-C002-C, Edition 10.2017
