Laser class 1 as per EN 60825-1/-2 With the use of 62.5 μm/125 μm and 50 μm/125 μm optical fibers
Comment:
1
Numerical aperture (NA = sin θ (launch angle))

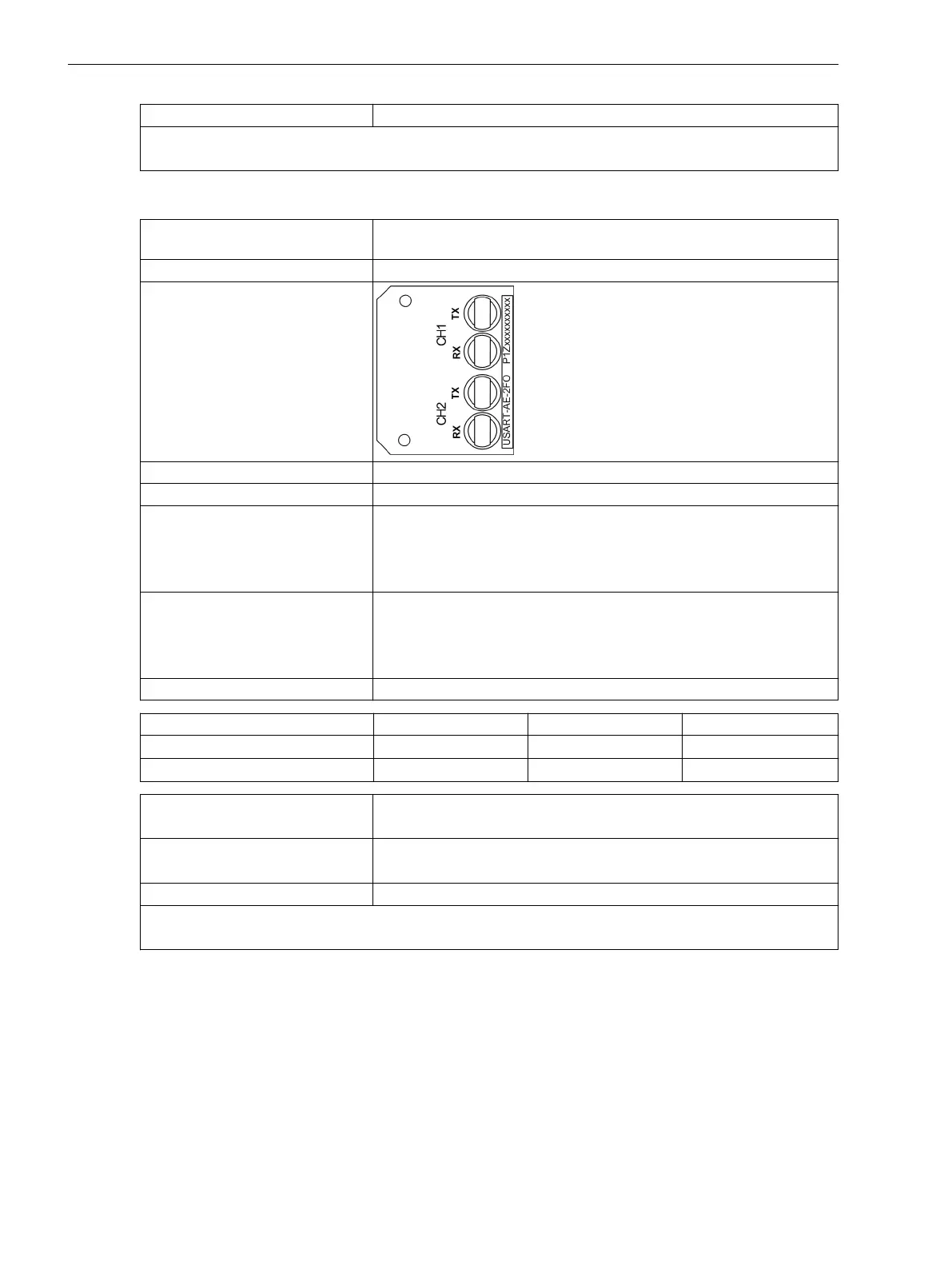

USART-AE-2FO
Description Serial asynchronous or synchronous communication module with
2 independent optical interfaces
Product code P1Zxxxxxxxxxx
Figure
Connector type 4 x ST
Wavelength λ = 820 nm
Baud rate Asynchronous: both connections 1.2 kbit/s to 115.2 kbit/s
Synchronous: both connections 64 kbit/s to 2 Mbit/s
Asynchronous/Synchronous: 1 connection 1.2 kbit/s to 115.2 kbit/s and
1 connection 64 kbit/s to 2 Mbit/s
For 1 or 2 protocols or applications
(1 application per optical connec-
tion)
IEC 60870-5-103
DNP3
SUP serial
Protection-interface communication
Max. distance 2 km when using an optical fiber 62.5 μm/125 μm
Transmitter Power Minimum Typical Maximum
50 μm/125 μm, NA
1
= 0.2
-19.8 dBm -15.8 dBm -12.8 dBm
62.5 μm/125 μm, NA
1
= 0.275
-16.0 dBm -12.0 dBm -9.0 dBm
Receiver sensitivity Maximum +1 dBm
Minimum -32 dBm
Optical budget
Minimum 4.2 dB for 50 μm/125 μm, NA
1
= 0.2
Minimum 8.0 dB for 62.5 μm/125 μm, NA
1
= 0.275
Laser class 1 as per EN 60825-1/-2 With the use of 62.5 μm/125 μm and 50 μm/125 μm optical fibers
Comment:
1
Numerical aperture (NA = sin θ (launch angle))
Serial Modules for Long Distances
Application
The optical protection-interface modules are used for long distances over multimode or singlemode optical
fibers. In the case of the protection interface, they serve the purpose of point-to-point transmission between 2
devices. One possible application is the transmission of differential protection data. For example, if you wish
to transmit only binary data and measured values, you can equip all SIPROTEC devices with these protection
interfaces.
4.2.3.5
4.2.4
4.2.4.1
Plug-In Modules
4.2 Communication Modules
138 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017
