Siemens SIPROTEC 5 Hardware Description

[dwosobb1-040211-01.tif, 2, --_--]

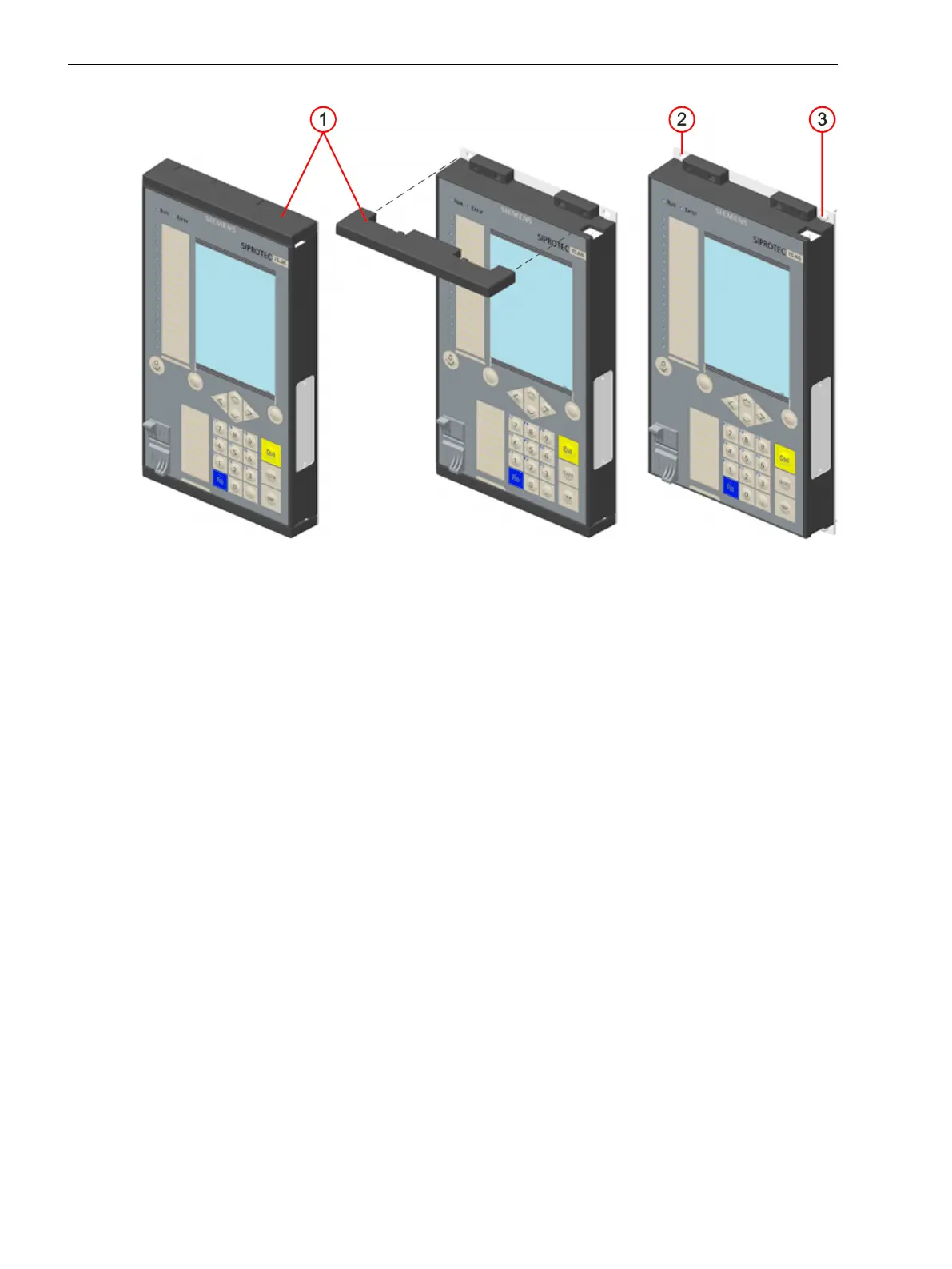

Figure 2-18
Fastening Openings for the On-Site Operation Panel
(1) Screw cover (pull towards you to remove)
(2) Fastening opening
(3) Fastening opening with fastening screw
Forms of Devices and On-Site Operation Panels
2.3 Surface-Mounted Devices with Detached On-Site Operation Panel
36 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017
