Mounting and Commissioning
3.3 Commissioning
SIPROTEC, 7SD5, Manual
C53000-G1176-C169-5, Release date 02.2011
538
3.3.5 Checking the Protection Data Topology
General
The communication topology can either be checked from the PC using DIGSI or with a „ WEB-Monitor“. If you
choose to work with the „WEB-Monitor“, please note the Help files referring to the „WEB-Monitor“.
You can either connect the PC to the device locally using the operator interface at the front, or the service in-
terface on the rear of the PC (example Figure 3-23). Or you can log into the device using a modem via the
service interface (example Figure 3-24)

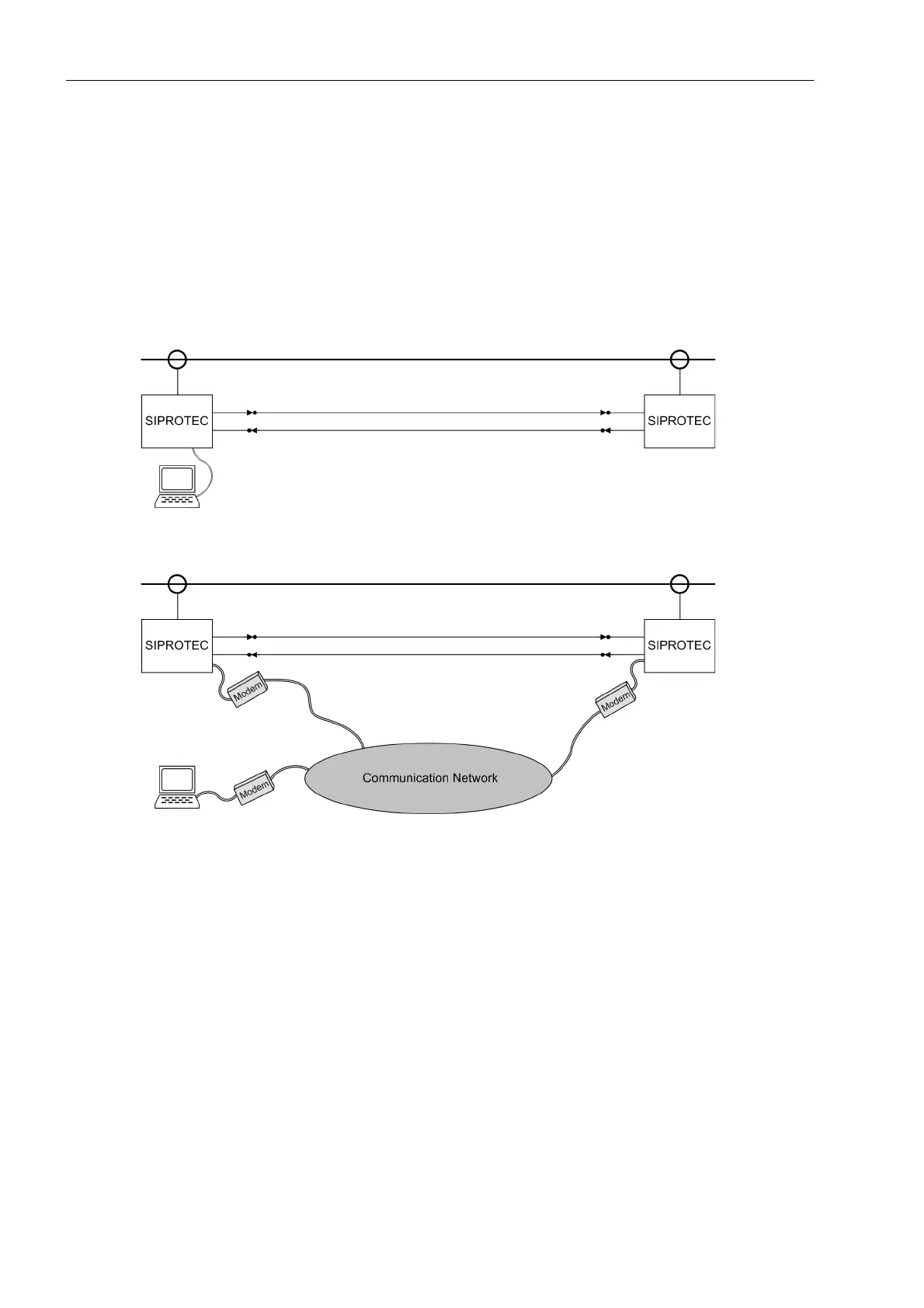

Figure 3-23 PC interfacing directly to one device — schematic example
Figure 3-24 PC interfacing via modem — schematic example
