8 Steering & Front Wheel Repair
Upper Steering Group
Steering Wheel Removal
1. Later-model steering wheels are attached to the
steering shaft assembly with a long spring pin. Use a
pin punch and hammer to drive the spring pin out of
the steering wheel and steering shaft assembly
(Figure 19).

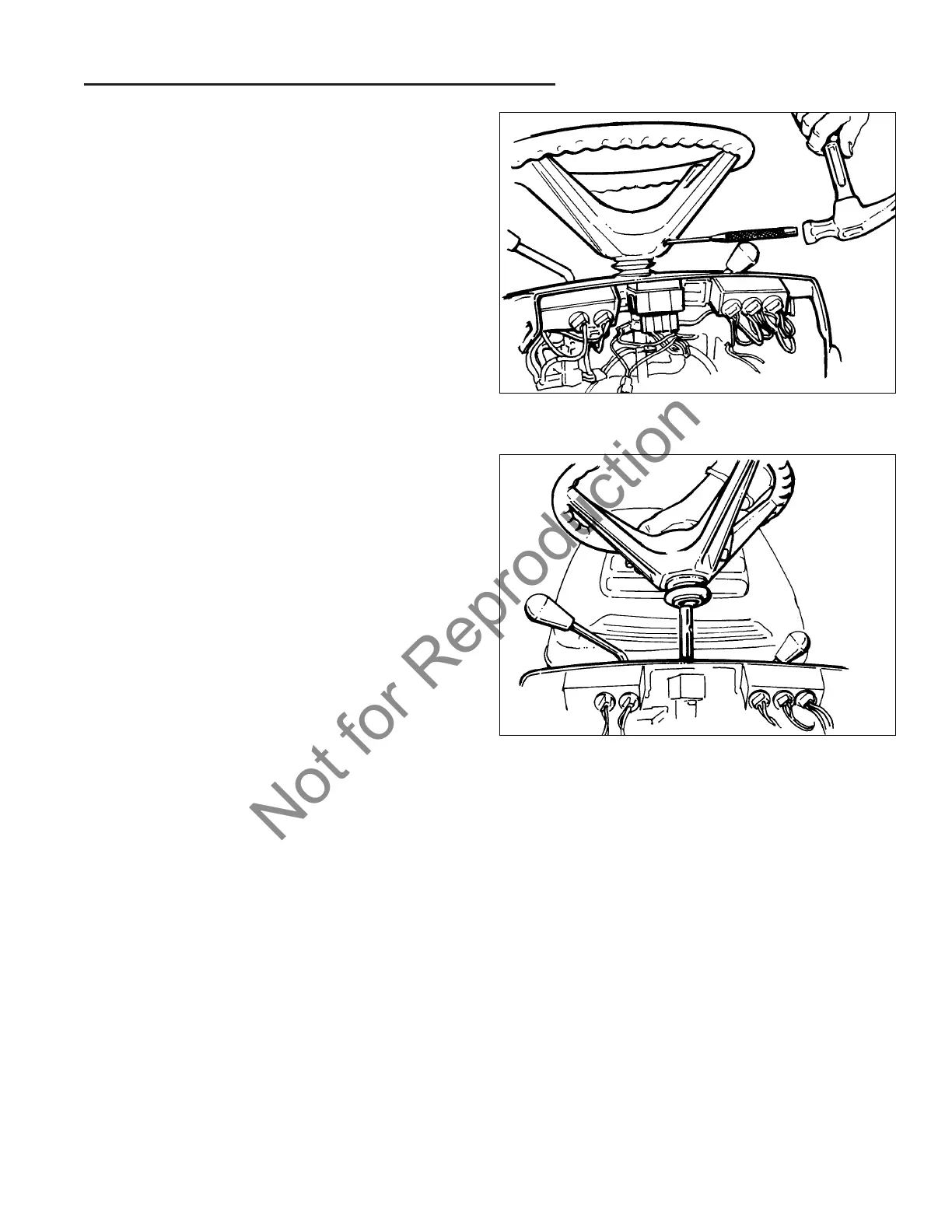

Figure 19. Remove Steering Wheel Spring Pin
Later Models
Figure 20. Remove Steering Wheel
2. Slide steering wheel up to remove from steering shaft
assembly, and note positioning of mounting holes for
later reassembly (Figure 20).
3. Inspect steering wheel and hardware for wear or
damage, and replace as required. Reassemble
steering wheel to steering shaft assembly, or proceed
to next step if steering shaft is to be serviced.
