4 Adjustments
Brake Spring & Foot Pedal Adjustment
4 - 4
BRAKE SPRING ADJUSTMENT
1. Disengage the PTO, stop the engine, block the
wheels, and remove the ignition key. DO NOT
engage the parking brake.
2. Remove the mower deck (see Mower Deck Removal).
3. Locate the brake spring (A, Figure 6) and adjustment
nut (B).
4. With the parking brake disengaged check the brake
spring (A) for movement.
There should be no more that .002” clearance
between the spring (A) and the adjustment nut
(B)–however, spring must NOT be compressed.
If this adjustment does not correct a braking prob-
lem, replace the brake band assembly.
FOOT PEDAL HEIGHT ADJUSTMENT
(FORWARD SPEED ADJUSTMENT)
1. Disengage the PTO, stop the engine, block the
wheels, and remove the ignition key. DO NOT
engage the parking brake.
2. Loosen the carriage bolt and nut (A, Figure 7).
3. Grab the transmission rod (B) with a pair of locking
pliers and pull it fully forward. This will require some
effort.
4. With the transmission rod (B) pulled fully forward, fully
depress the forward ground speed pedal. Hold both
fully forward.
5. Tighten the carriage bolt and nut (A).

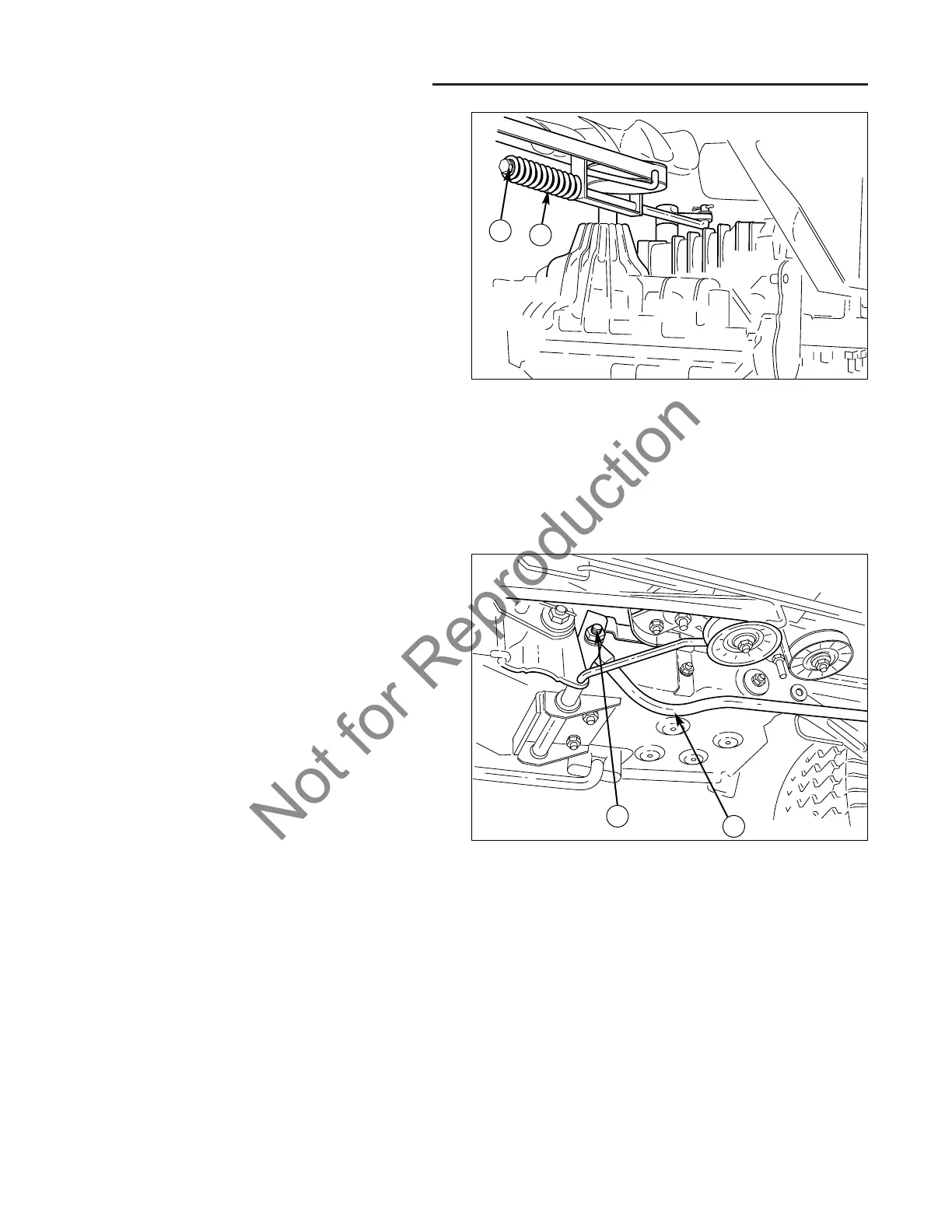

Figure 6. Brake Adjustment Nut
A. Brake Spring B. Adjustment Nut
B
A
Figure 7. Foot Pedal Adjustment
A. Carriage Bolt & Nut
B. Transmission Rod
A
B
