7 - 16
7 Electrical System Service
Location and Replacement
COMPONENT LOCATION AND
REPLACEMENT

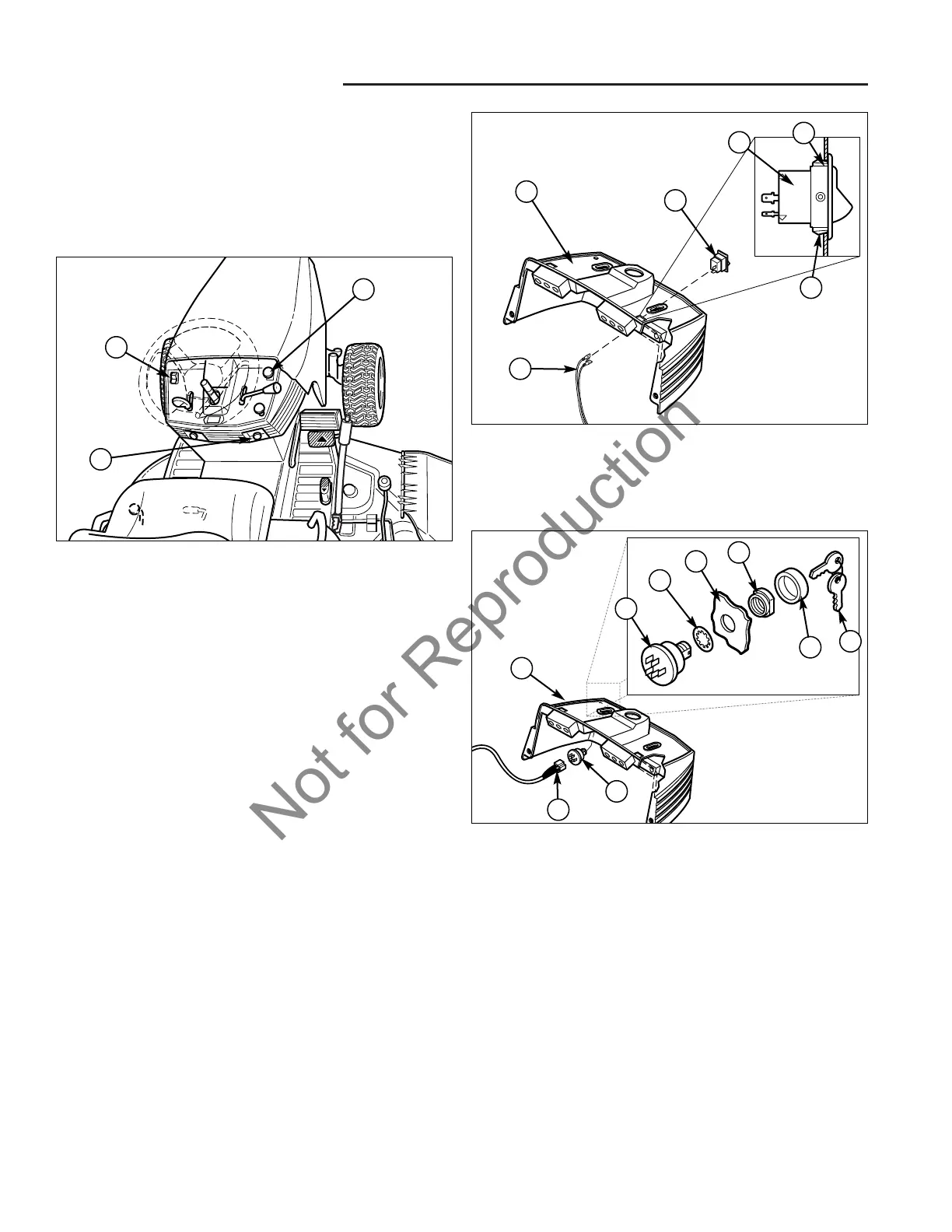

Figure 11. Dashboard Components
A. Headlight Switch C. PTO Switch
B. Ignition Key Switch D. Cruise Control Switch
(Inside Dashboard)
HEADLIGHT SWITCH
The headlight switch (A, Figure 11) is located in the
dashboard on the left-hand side.
1. Disconnect and secure the negative battery cable,
(see Section 6, COMMON SERVICE PROCE-
DURES).
2. Unplug the wire harness (B, Figure 12) from the back
of the switch (C).
3. From behind the dashboard, push in the locking tabs
(D) and remove the switch as shown.
NOTE: Be careful to not press on the tabs that hold the
contact block to the switch rocker. The parts in the con-
tact block are very small and could get lost if separated.
4. Install headlight switch in reverse order of removal.
Figure 12. Headlight Switch Replacement
A Dashboard C. Headlight Switch
B. Wire Harness D. Locking Tabs
B
3. Unplug the wire harness (B) from the back of the igni-
tion key switch (C).
4. Remove the cap (F) using a screwdriver or pliers.
5. Remove the key switch nut (E) from the switch.
6. Remove the switch (C) from the back of the dash-
board (A).
7. Reinstall ignition key switch in reverse order of
removal.
C
C
A
C
B
A
Figure 13. Ignition Key Switch Replacement
A Dashboard E. Key Switch Nut
B. Wire Harness F. Cap
C. Ignition Key Switch G. Keys
D. Washer
G
A
A
F
E
C
D
C
B
NOTE: Most repairs do not require the dashboard to be
removed for component replacement or service. If it is
required, refer to appropriate section for dashboard ser-
vice.
D
D
IGNITION KEY SWITCH
The ignition key switch is located in the dashboard on
the right-hand side of the steering wheel.
1. Remove the key (G, Figure 13) from the switch if not
already done so.
2. Disconnect and secure the negative battery cable,
(see Section 6, COMMON SERVICE PROCE-
DURES).
