11 Drive Controls Service
Brake System Components
11 - 2
Hook Spring
to hole in
Frame above
Transmission
To Notch in Frame
Brake System Components

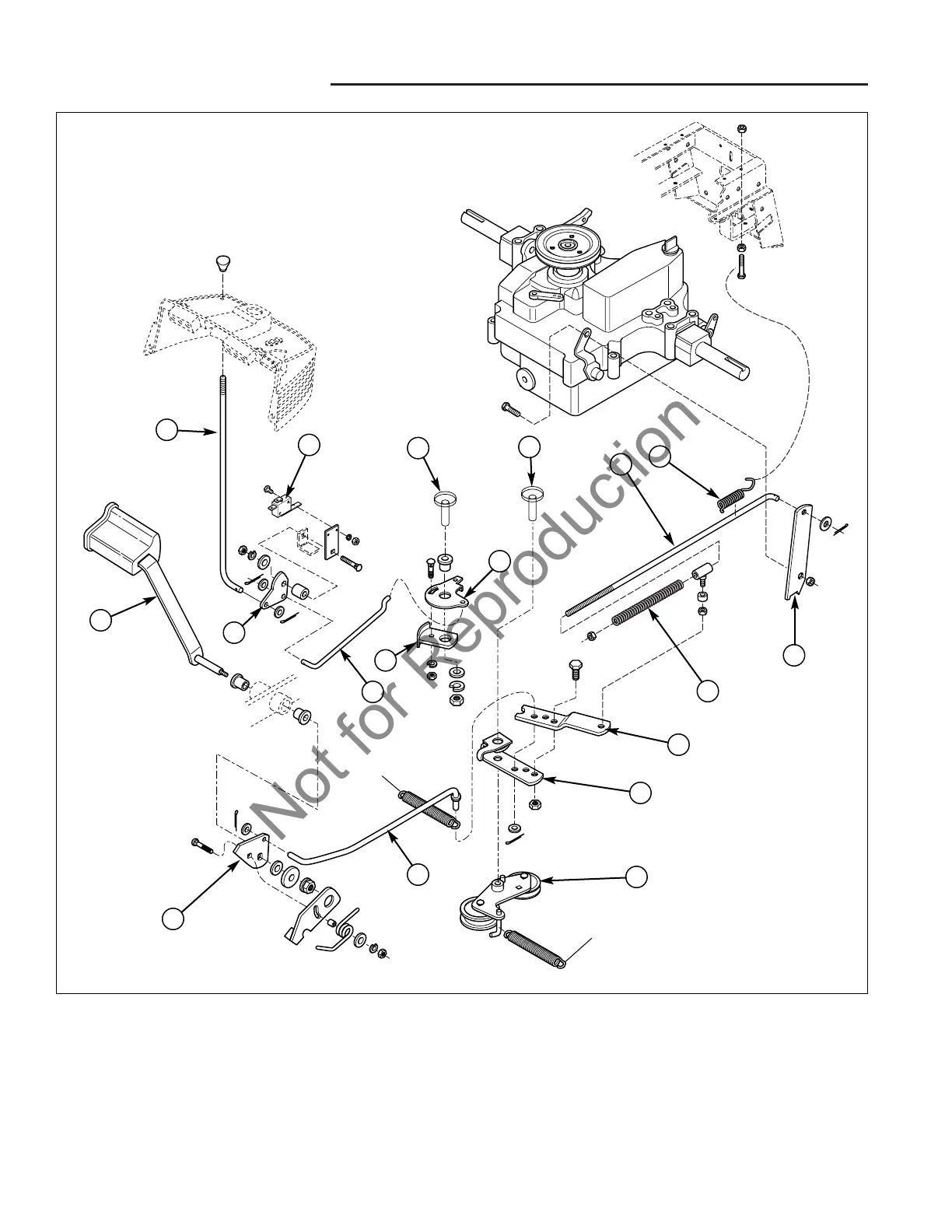

Figure 1. Brake System Components
A. Parking Brake Rod
B. Cruise/P-Brake Light Switch
C. Parking Brake Cam
D. Brake Pedal
E. Foot Pedal Arm
F. Clutch Rod
G. Idler assembly
H. Pivot
I. Brake Lever
J. Brake Spring
K. Brake Arm Extension
L. Brake Return Spring
M. Idler Pivot (Frame)
N. Lock Plate Bracket
O. Plate and Pad Assembly
P. Cruise Rod
Q. Rear Brake Rod
R. Cruise Lock Pivot (Frame)
A
D
E
F
G
H
I
O
N
J
M
R
L
K
C
B
P
Q
