6 Common Service Procedures
Mower Removal & Installation

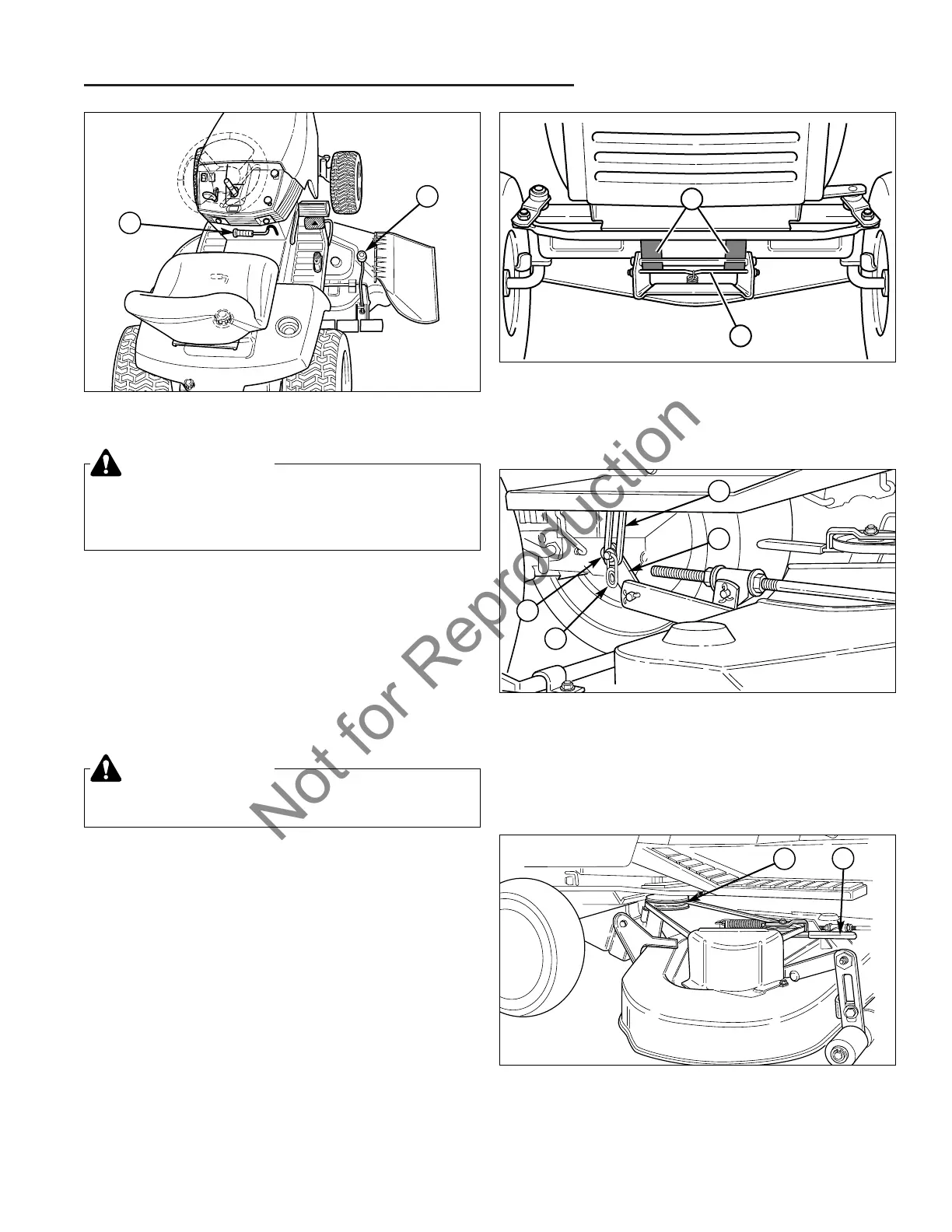

Figure 8. Removing & Installing Belt
A. Idler Arm B. PTO Pulley
Figure 7. Lift Arms
(Viewed from underneath right side of tractor)
A. Mower Lift Arm C. Flat Washer
B. Tractor Lift Arm D. Safety Clip
Figure 6. Mower Hitch
A. Tractor Hitch Brackets
B. Spring-Loaded Lever
Installing the Mower Deck
1. Park tractor, shut off PTO and engine, remove the
key and apply parking brake. Turn the wheels fully to
the left.
2. Place mower height adjuster (B, Figure 5) in the low-
est cutting position. Place the mower lift lever in the
lowest position, also. Slide mower deck under right
side of tractor so that mower hitch is aligned with
front tractor hitch.
3. See Figure 6. Turn wheels straight. Pull back on the
spring-loaded lever (B) while lifting up on the mower
hitch. Install mower hitch onto tractor hitch brackets
(A). When properly installed, the spring-loaded lever
should seat fully underneath the brackets.
4. See Figure 7. Connect the mower lift arm (A) to the
tractor lift arm (B) using the flat washer (C) and safety
clip (D).
5. See Figure 8. Move idler arm (A) to relieve belt ten-
sion. Install belt onto the PTO pulley (B).
Figure 5. Raising & Lowering Mower
A. Mower Lift Lever B. Mower Height Adjuster
CAUTION
The muffler and surrounding areas may be hot.
WARNING
Engage parking brake, disengage PTO, stop
engine and remove key before attempting to
install or remove the mower.
B
A
B
A
C
D
B
A
