THROTTLE CONTROL SERVICE
The throttle (engine speed) control is attached to the
underside of the dashboard and may be accessed by
raising the unit's hood. For greater access and improved
work area, the battery may be removed from the unit.
Throttle Knob Service
The throttle knob (A, Figure 5) snaps onto the throttle
control (C). The knob can be removed by pulling it
straight off the control lever. To install it may be neces-
sary to drive the knob on with a rubber mallet.
Throttle Assembly Replacement
The throttle control is not adjustable and is serviced as
an assembly.
1. Remove the throttle knob (A, Figure 5) by pulling it
straight off.
2. Unscrew the plastite screws (B) securing the one-
piece throttle assembly (C) to the underside of the
dashboard, and remove the one-piece throttle/cable
assembly.
3. Inspect the assembly for wear or damage and
replace as required.
4. Reassemble in reverse order of disassembly.

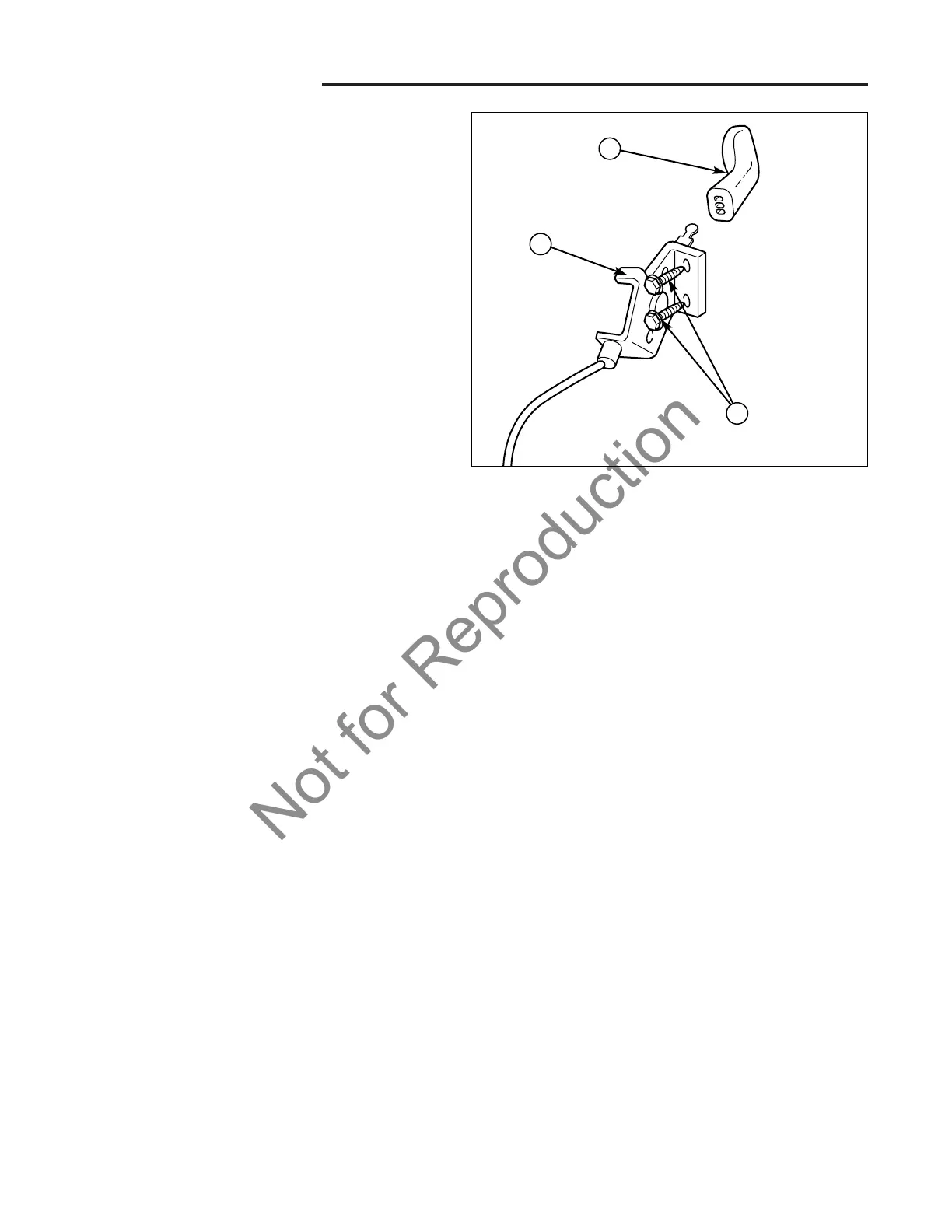

Figure 5. Throttle Assembly
A. Throttle Knob
B. Plastite Screws
C. Throttle Assembly
A
B
C
