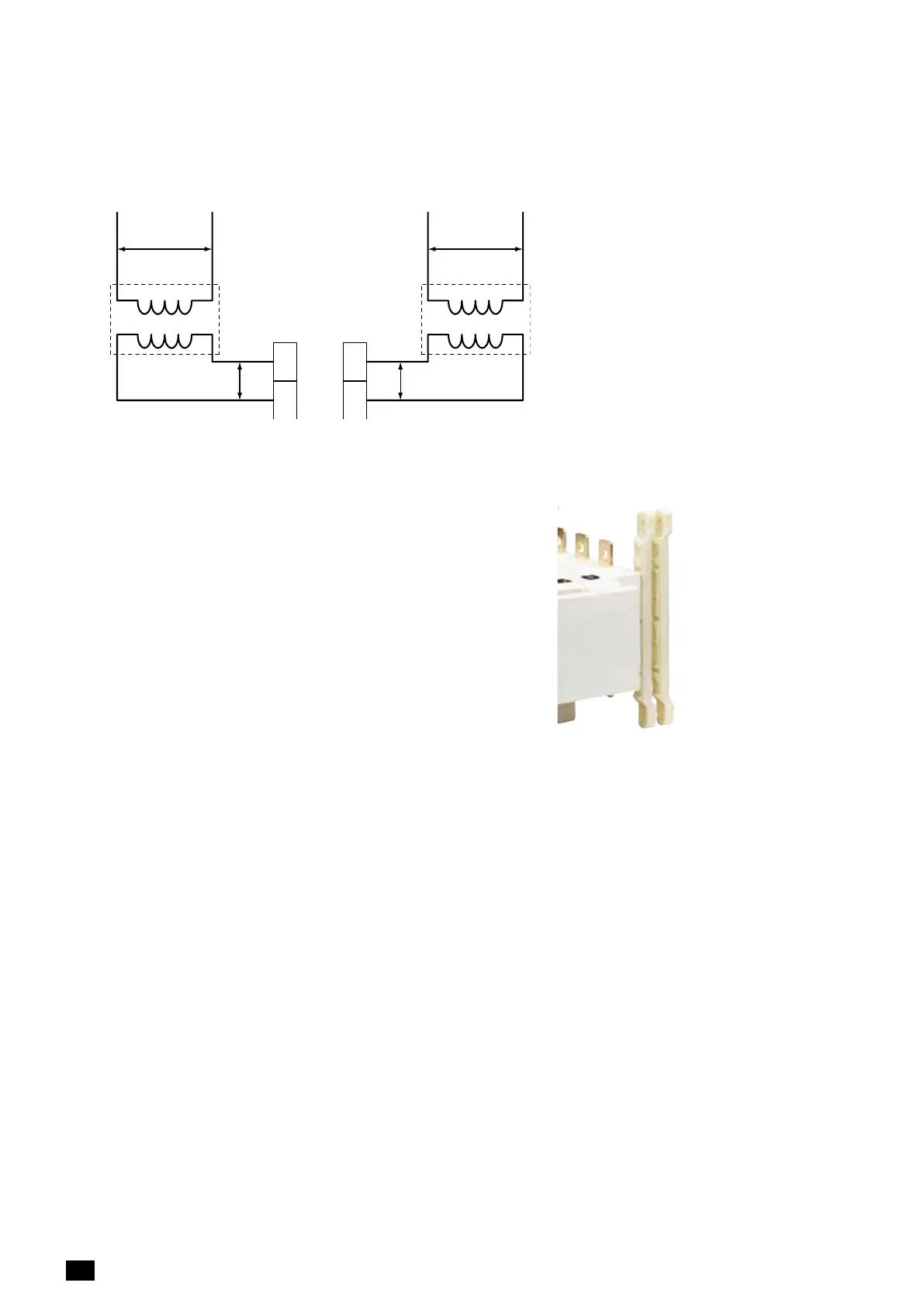

6.3.7. ExternalPowersupply(400VAC-230VAC)
Power Transformer intended for 400VAC, Phase to Phase voltage applications that do not provide the availability
of a neutral conductor. Transformer data: 400VAC – 230VAC: 200VA. The ATySp will require 2 transformers to be
connected as shown.
101
Power 230 Vac
Power 230 Vac
400 Vac
230 Vac
102
Source 1
202
400 Vac
230 Vac
201
Source 2
6.3.8.Raisedmountingspacers
Available for 125A to 630A ratings only
Frames B3, B4 and B5
1 set including 2 spacers raises the device’s
terminals 10 mm away from the bottom of
the enclosure or frame on which the device is
mounted. These may also be used to replace
the original mounting spacers.

socomec ATyS s Specifications

General

Brand	socomec
Model	ATyS s
Category	Switch
Language	English
