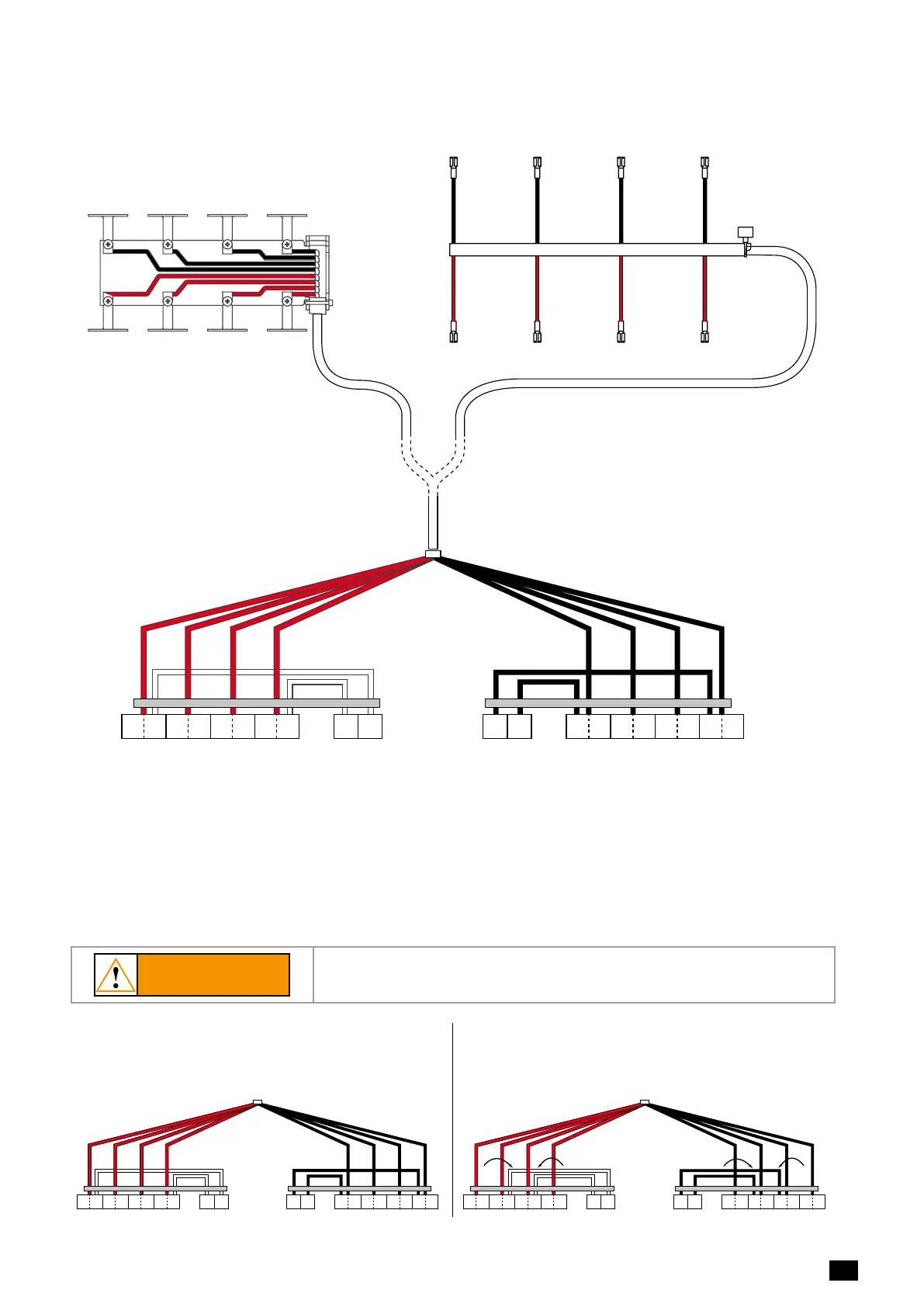

7.4.3. Network
Power inputs (terminals 101-102 & 201-202) are 220/240/277 VAC (208 - 277VAC) ± 20%. It is necessary to adapt
the power input cable connections according to the network conguration. (Power supply to be taken between
phase to phase or between phase and neutral).
CAUTION
Verify that the power supply between terminals 101 – 102 and 201 – 202 (nominal

• Standard kit:
Network 380/415 VAC ± 20% with neutral
conductor (no kit modication required):
• Kit Modication:
For network 220/240 VAC ± 20%, power supply
cables A-B to connect between phases
mechanical
cables
support
ABAB
N/LL/N 1/23/45/67/8
L/N N/L 7/8 5/6 3/4 1/2
Red wires Black wires
ABAB
N/LL/N 1/23/45/67/8
L/N N/L 7/8 5/6 3/4 1/2
Black wires
Red wires
mechanical
cables
support
