5. Contrast Adjustment (PD-155 Board)
Set the level of the VIDEO signal for driving the LCD to the speci-
fied value.
If deviated, the LCD screen image will be blackish or saturated
(whitish).
Mode PLAY
Signal Arbitrary
Measurement Point Pin 9 of CN305 on FR-181
board (PANEL_VG)
External trigger: Pin 8 of
CN305 on FR-181 board
(PANEL_COM)
Measuring Instrument Oscilloscope
Adjustment Page D
Adjustment Address EA
Specified Value A = 2.65 ± 0.07 Vp-p
Adjusting method:
Order Page Address Data Procedure
1 0 01 01
2 D 1E 10 Press PAUSE button.
34 F103
4D EA
Change the data and set the
voltage (A) to the specified
value.
5 D EA Press PAUSE button.
Processing after Completing Adjustments:
Order Page Address Data Procedure
1 D 1E 01 Press PAUSE button.
24 F100
3 0 01 00
6. V-COM Level Adjustment (PD-155 Board)
Set the common electrode drive signal level of LCD to the speci-
fied value.
Mode PLAY
Signal Arbitrary
Measurement Point Pin 8 of CN305 on FR-181
board (PANEL_COM)
Measuring Instrument Oscilloscope
Adjustment Page D
Adjustment Address E7
Specified Value A = 5.42 ± 0.05 Vp-p
Adjusting method:
Order Page Address Data Procedure
1 0 01 01
2 D 1E 10 Press PAUSE button.
34 F103
4D E7
Change the data and set the
voltage (A) to the specified
value.
5 D E7 Press PAUSE button.
Processing after Completing Adjustments:
Order Page Address Data Procedure
1 D 1E 01 Press PAUSE button.
24 F100
3 0 01 00

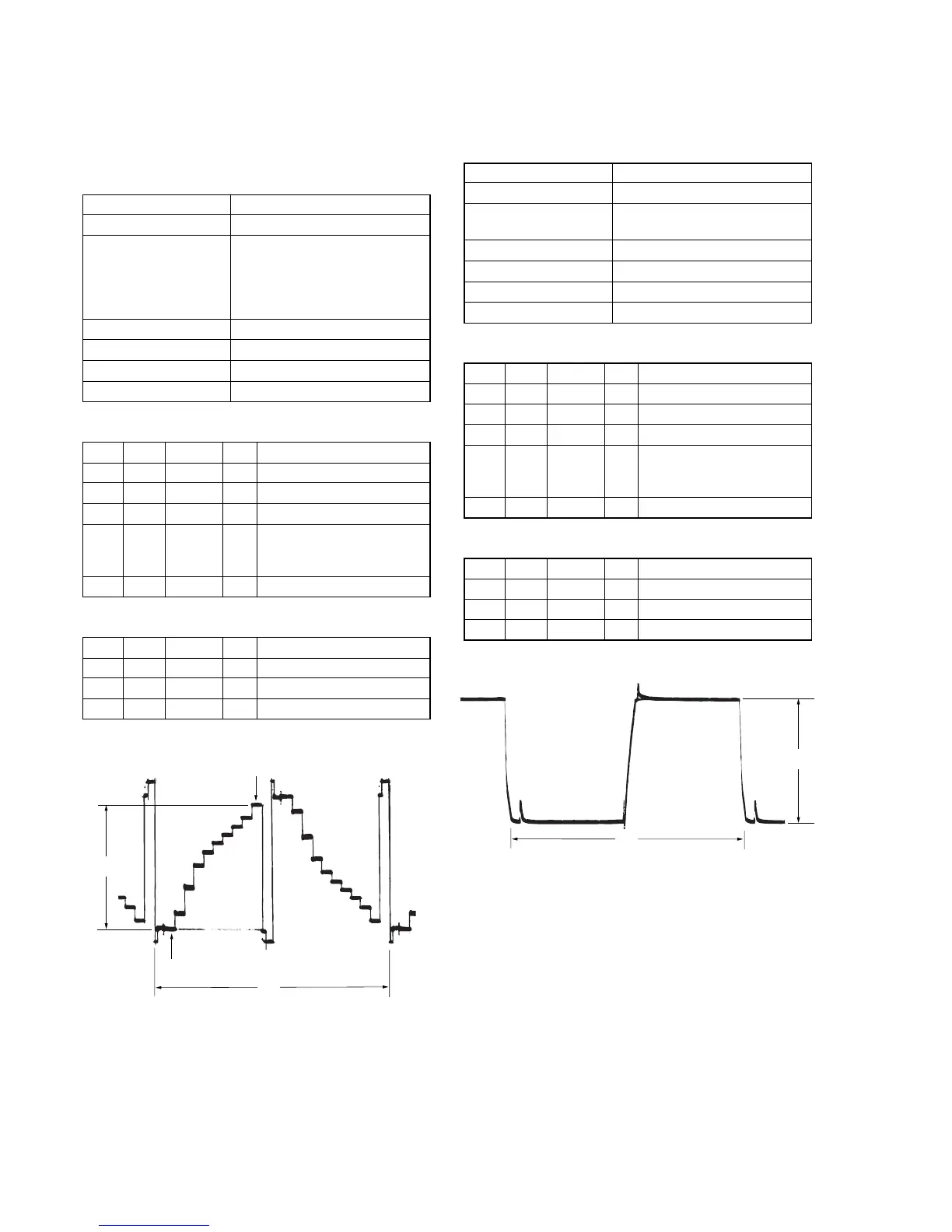

Fig. 5-1-23
A
2H
10 steps peak
Pedestal
A: Between the pedestal and 10 steps peak
Fig. 5-1-24
A
2H
