DSC-F707
2-2

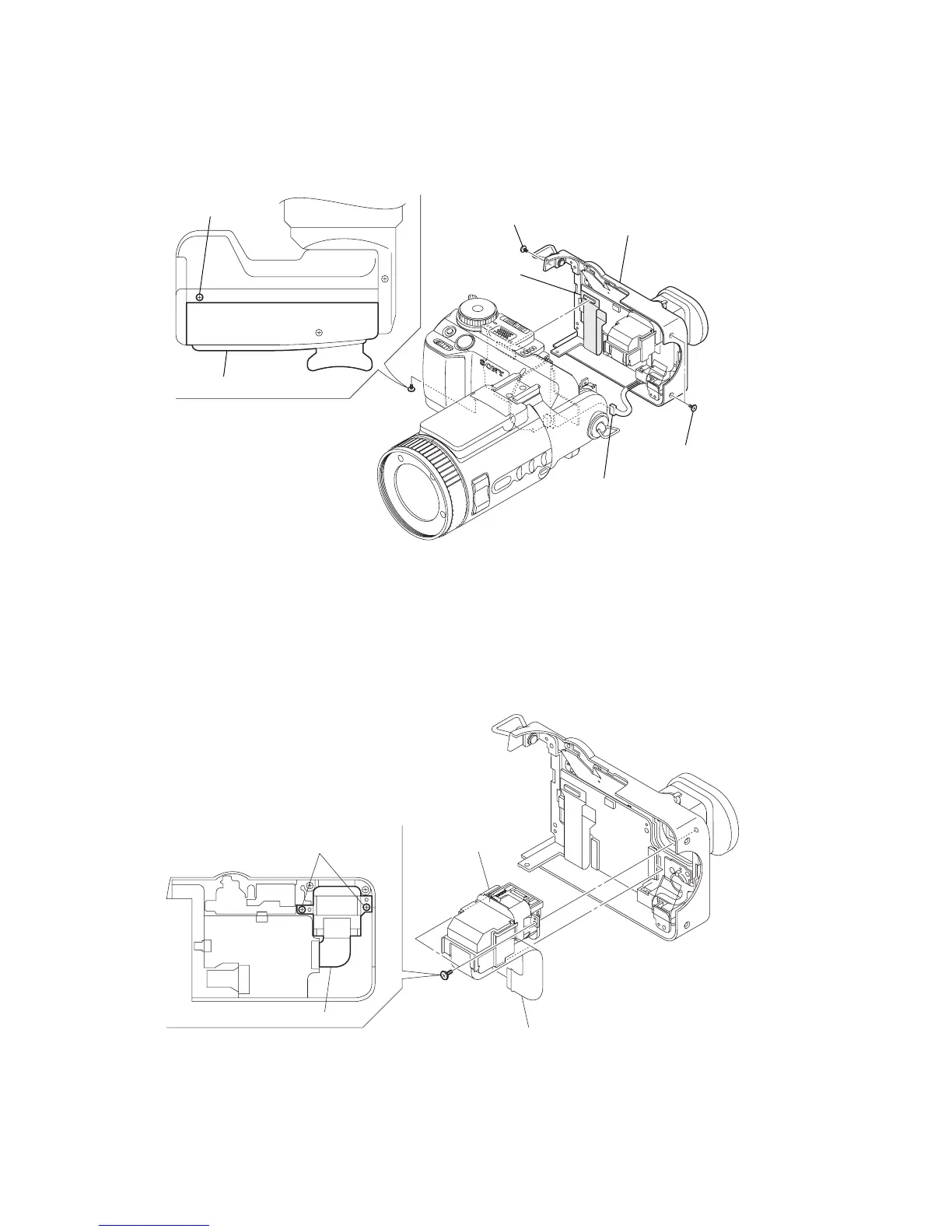

2-2. EVF ASSEMBLY
2-1. CABINET (REAR) ASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
2 Two screws
(M1.7)
6 Connector
(CN401)
1 Screw
(M1.7)
3 Screw
(M1.7)
4 Cabinet (rear)
assembly
Cabinet (rear) assembly
5 Flexible board
(CN308)
1 Flexible board
(CN704)
3 EVF assembly
EVF assembly
2 Two screws
(DIA.1.7 × 4.5)
Ver. 1.1 2002. 02
