DSC-F707
2-7

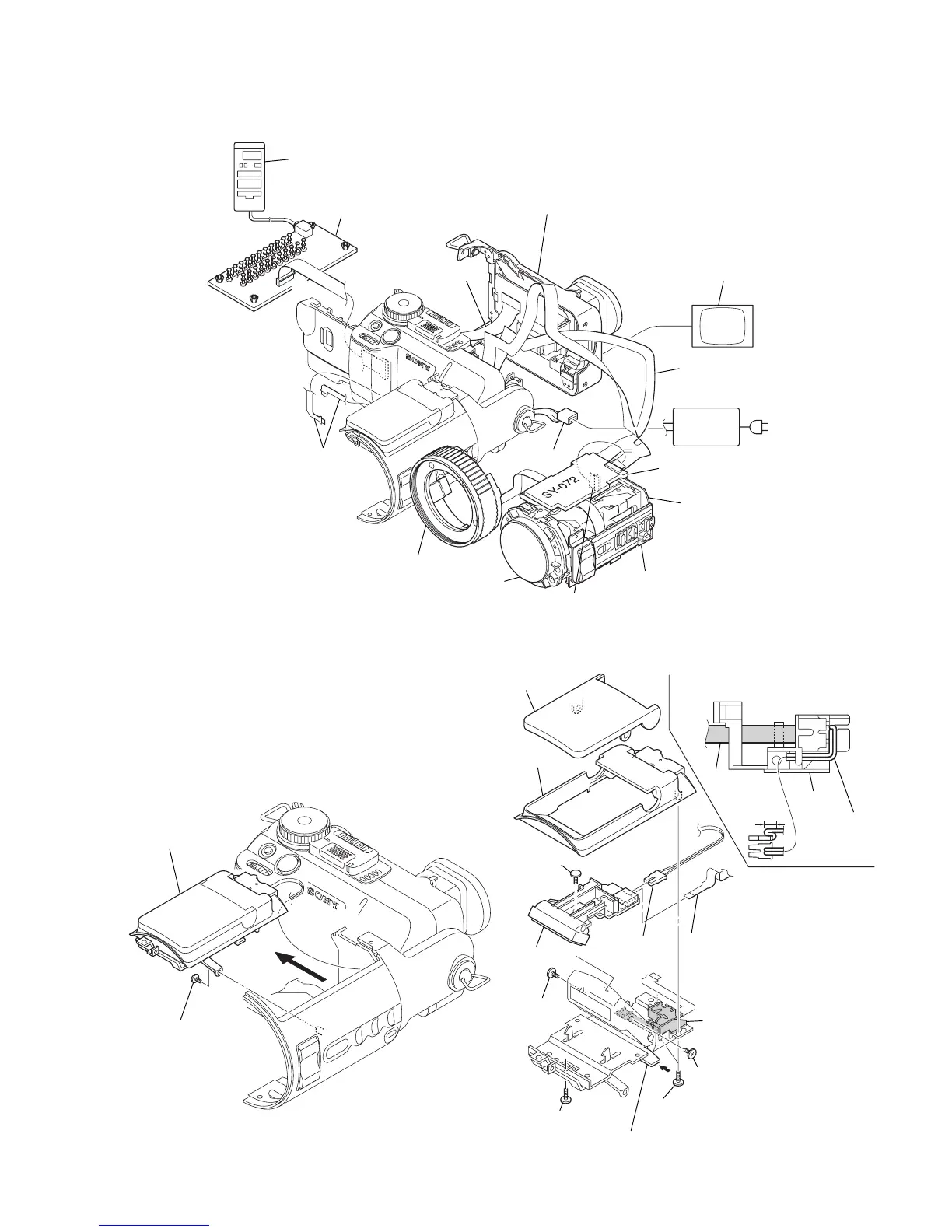

[SERVICE POSITION (SY-072: SIDE A AND CD-355 BOARDS)]
1
1
22
22
AC power
adaptor
AC IN
Color monitor
Rear cabinet assembly
FP-423 flexible board
Need not connected
(CN302, 303)
Cabinet (MF) assembly
Control switch block
(CF50780)
Lens block assembly
Extension cable
(J-6082-448-A)
Extension cable
(1-683-095-11)
SY-072 board
CD-355 board
DC-IN jack
Adjustment remote
commander
CPC-12 jig
(J-6082-436-A)
2-12. FLASH UNIT
0 Connector
(CN001)
qd FP-448 flexible board
(CN002)
3 Push the lever of ST
sheet metal assembly.
6 Cabinet (ST)
9 Cabinet (LST)
qs Flash unit
7 Two screws
(DIA.1.7 × 4.5)
8 Screw
(DIA.1.7 × 4.5)
4 Screw
(M1.7)
5 Screw
(M1.7)
qa Screw
(DIA.1.7 × 4.5)
PT-130
harness
FP-448
flexible board
4.0mm
ST switch
arm
ST switch arm
PT-130 HARNESS AND
FP-448 FLEXIBLE BOARD SETTING
2 Stroboscope
assembly
1 Screw
(M1.7)
Ver. 1.1 2002. 02
