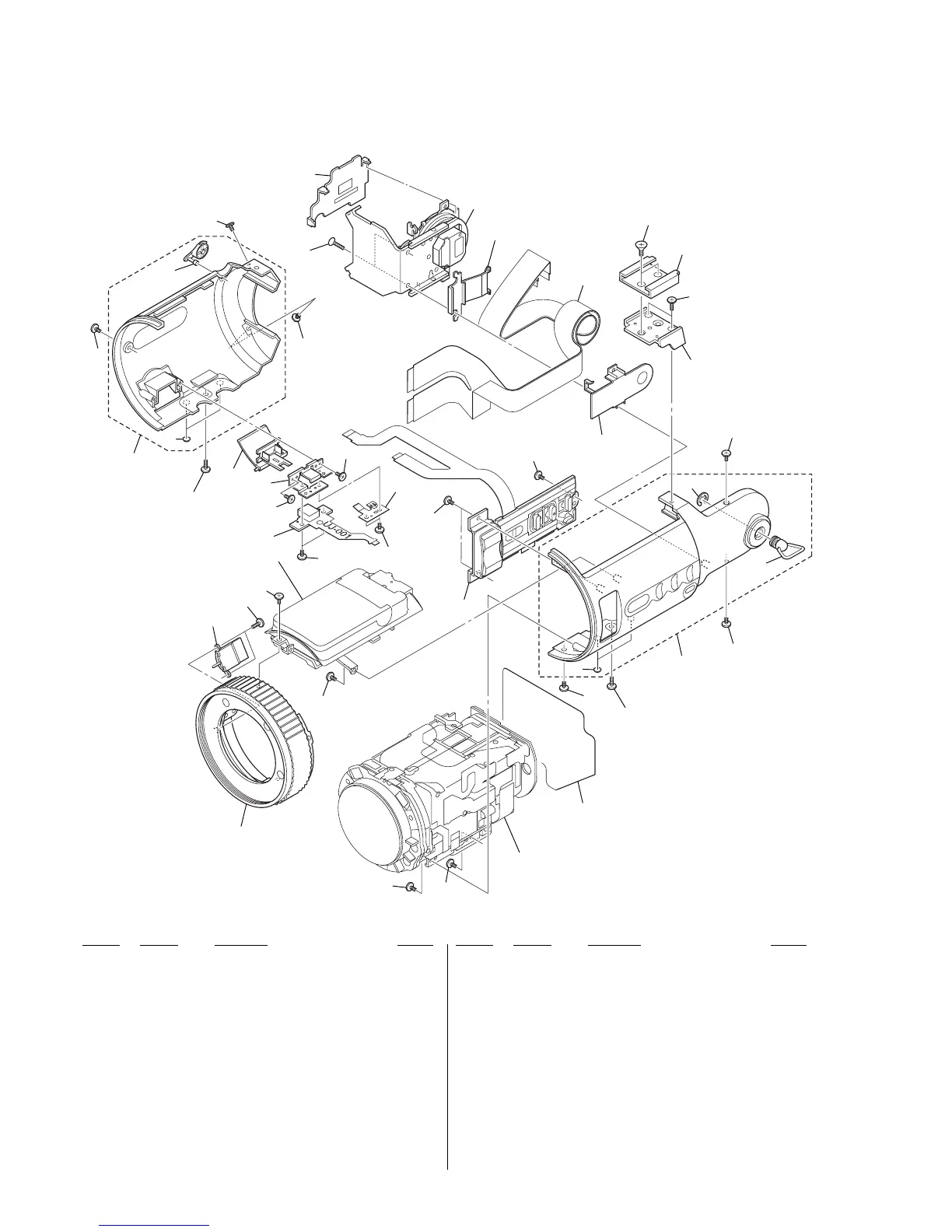

6-1-2. CABINET (L) BLOCK ASSEMBLY
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-3952-003-1 CABINET (MF) ASSY
52 1-476-956-11 FOCUS BLOCK, MANUAL
53 3-072-498-01 SCREW (DIA. 1.7X4.5), PRECISION
54 3-989-735-51 SCREW (M1.7), LOCK ACE, P2
55 A-7074-998-A UJ-001 BOARD, COMPLETE
56 3-071-346-01 SPRING, USB COVER
57 3-071-264-01 FRAME, USB
58 X-3952-005-1 COVER ASSY, USB
59 3-072-453-01 SCREW (M2), EG GRIP, P2
60 X-3952-004-1 CABINET (LL) ASSY
61 3-071-262-01 CAP, ACC
62 3-071-350-01 SCREW (M1.7), PLATE SMALL
63 3-071-326-01 HOLDER, FP
64 X-3952-012-1 HINGE ASSY
65 1-683-095-11 FP-421 FLEXIBLE BOARD
66 3-071-347-01 GUARD (L), FP
67 3-072-452-01 EG GRIP, +K SCREW (M2)
68 3-067-469-11 SHOE, ACCESSORY
69 3-071-360-01 HOLDER, SHOE
70 X-3952-014-1 CABINET (LR) ASSY
71 7-624-106-04 STOP RING 3.0, TYPE -E
72 3-068-615-01 SHAFT (S), STRAP
73 1-476-954-11 SWITCH BLOCK, CONTROL (CF50780)
74 3-071-340-01 GUARD (CD), FP
75 3-051-124-01 FOOT, RUBBER
60
61
62
63
64
65
66
67
68
59
59
69
51
56
59
58
57
52
55
54
54
54
53
54
54
54
54
54
54
54
54
54
70
71
72
75
75
73
74
54
54
54
54
not supplied
Stroboscope block assembly
(See page 6-3.)
Lens complete assembly
(See page 6-4.)
