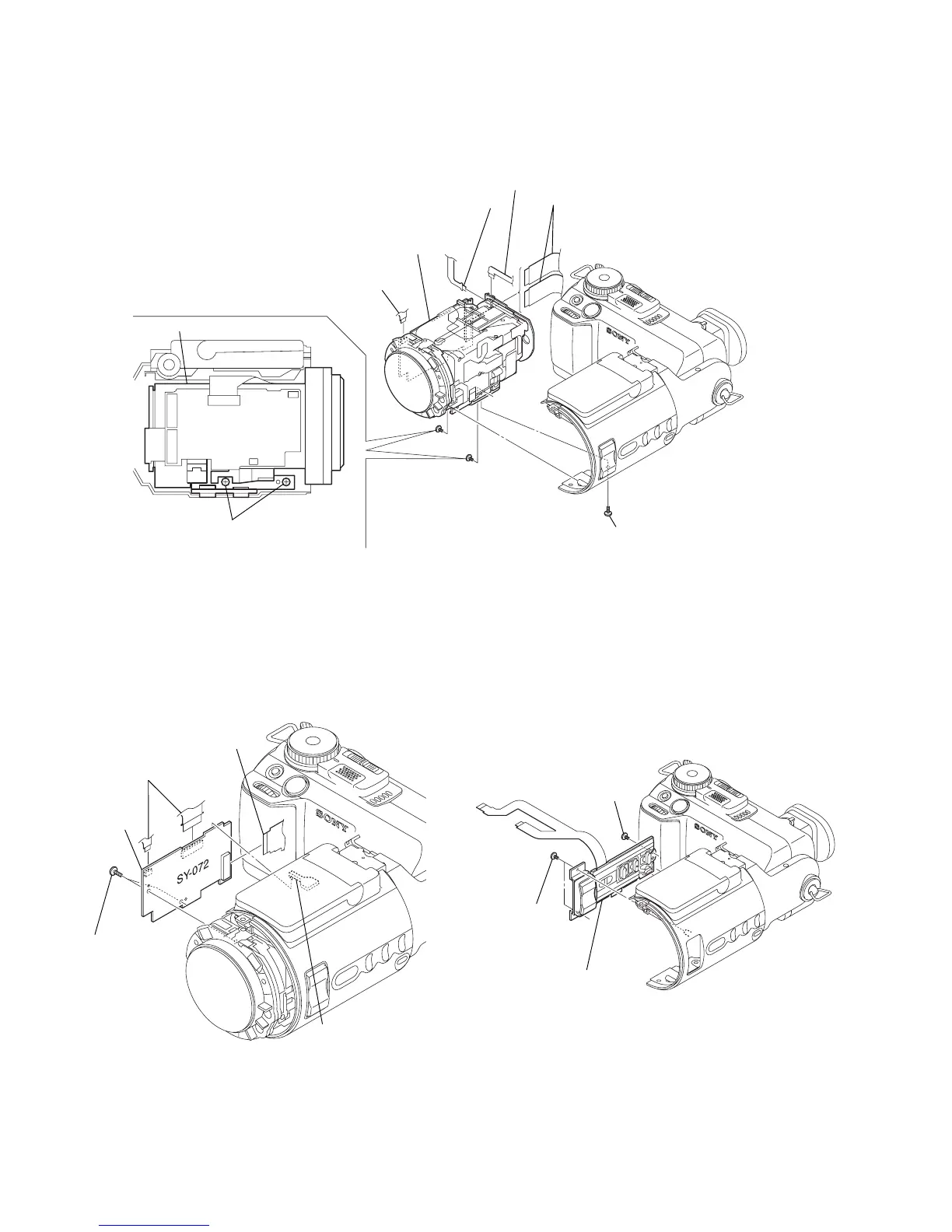

2-9. LENS COMPLETE ASSEMBLY
2-10. SY-072 BOARD
2 Flexible board
(CN302)
3 Flexible board
(CN704)
7 Flexible board
(CN303)
6 Lens complete
assembly
Lens complete assembly
5 Two screws
(M1.7)
1 Two flexible boards
(CN701, 702)
4 Screw
(P M2)
1 Two flexible boards
(CN203, 704)
5 Flexible board
(CN101)
4 SY-072
board
3 Claw
2 Two screws
(DIA.1.7 × 4.0)
2-11. CONTROL SWITCH BLOCK
(CF50780)
3 Control switch block
(CF50780)
1 Two screws
(M1.7)
2 Screw
(M1.7)
Ver. 1.1 2002. 02
