DSC-F707
R-Y
B-Y
2 mm
0.5 mm
6 mm
6 mm

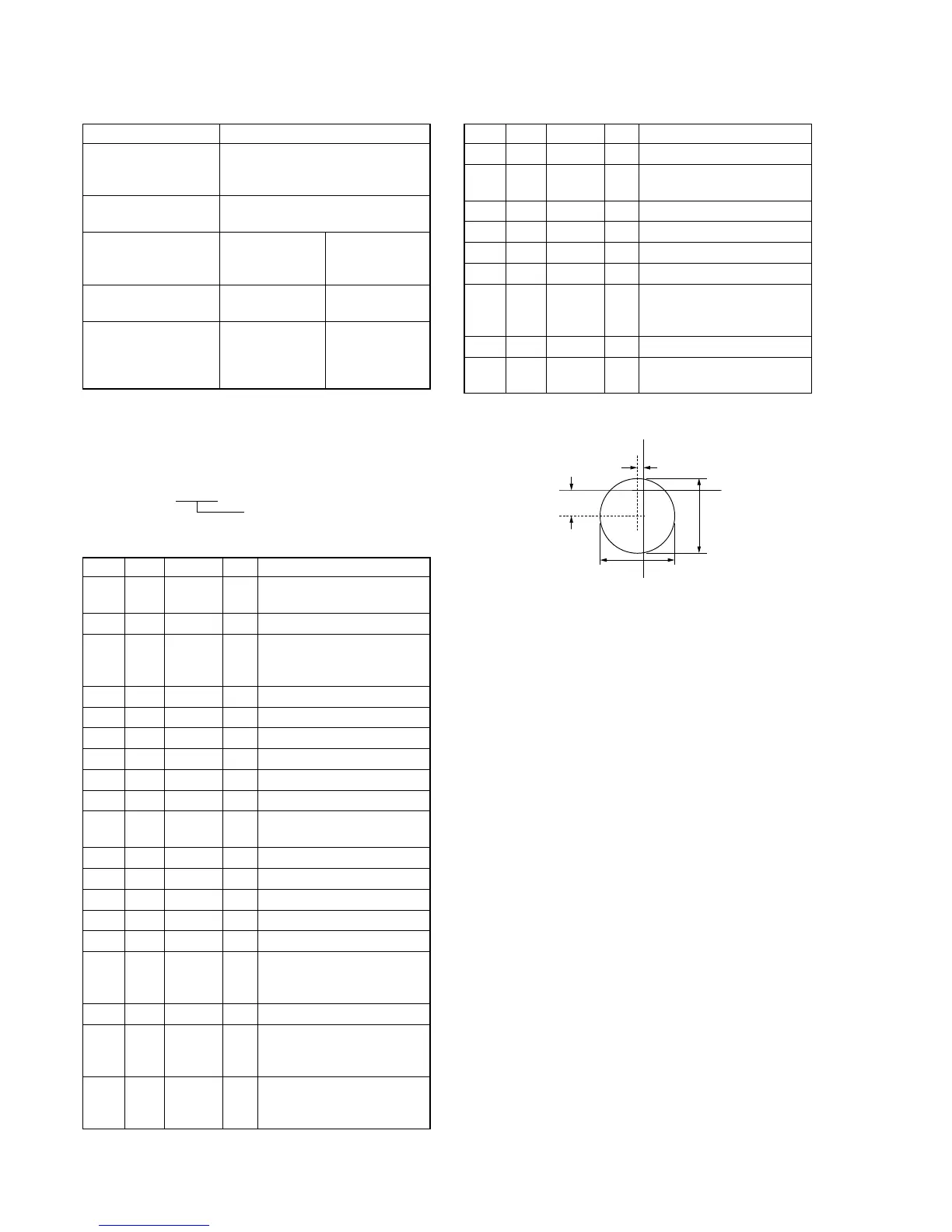

15. Auto White Balance 5800K Check
Mode CAMERA
Subject Clear chart
(Standard picture frame with the
zoom lens at WIDE end)
Filter Filter C14 for color temperature
correction
Measurement Point Displayed data of Video terminal of
Page: 1 (Note 3) A/V OUT jack
(75 Ω terminated)
Measuring Instrument Adjusting remote Vectorscope
commander
Specified Value R ratio: Fig. 5-1-17
29E0 to 2B20
B ratio:
5D20 to 5E60
Note 1: Check that the data of page: 6, address: 02 is “00”.
If not, turn the power of unit OFF/ON.
Note 2: Refer to “Picture Frame Setting” for YH and YL.
Note 3: The right four digits of the page: 1 displayed data of the
adjusting remote commander.
1:XX:XX
Displayed data
Checking method:
Order Page Address Data Procedure
1
Place the C14 filter on the
lens.
2 0 01 01
3
Perform “Data setting during
camera system adjustment”.
(Refer to page 5-13)
46 2C01
5 6 90 00
6 6 91 00
7 6 92 YL (Note 2)
8 6 93 YH (Note 2)
9 6 01 79 Press PAUSE button.
10 6 07
Check the data changes to
“01”.
11 6 01 00 Press PAUSE button.
12 9 B4 Note down the data.
13 9 B4 20 Press PAUSE button.
14 6 01 3F Press PAUSE button.
15 0 03 04
16 1
Check that the displayed data
(Note 3) satisfied the R ratio
specified value.
17 0 03 05
18 1
Check that the displayed data
(Note 3) satisfied the B ratio
specified value.
19
Check that the center of the
white luminance point within
the circle shown Fig 5-1-17.
Processing after Completing Adjustment:
Order Page Address Data Procedure
1 6 01 00 Press PAUSE button.
29 B4
Set data noted down at step
12, and press PAUSE button.
3 0 03 00
46 2C00
5 6 92 00
6 6 93 00
7
Release the data setting
performed at step 3.
(Refer to page 5-13)
8 0 01 00
9
Remove the C14 filter on the
lens.
Fig. 5-1-17
To Next Page
