4-47 4-48
LCD DRIVE, TIMING GENERATOR
PD-155
• For Printed Wiring Board.
• :Uses unleaded solder.
• PD-155 board is four-layer print board. However, the patterns
of layers 2 to 3 have not been included in the diagram.
• There are a few cases that the part isn't mounted in this model
is printed on this diagram.
• See page 4-69 for printed parts location.
• Chip transistor
EB
C
31
5
5
2
46

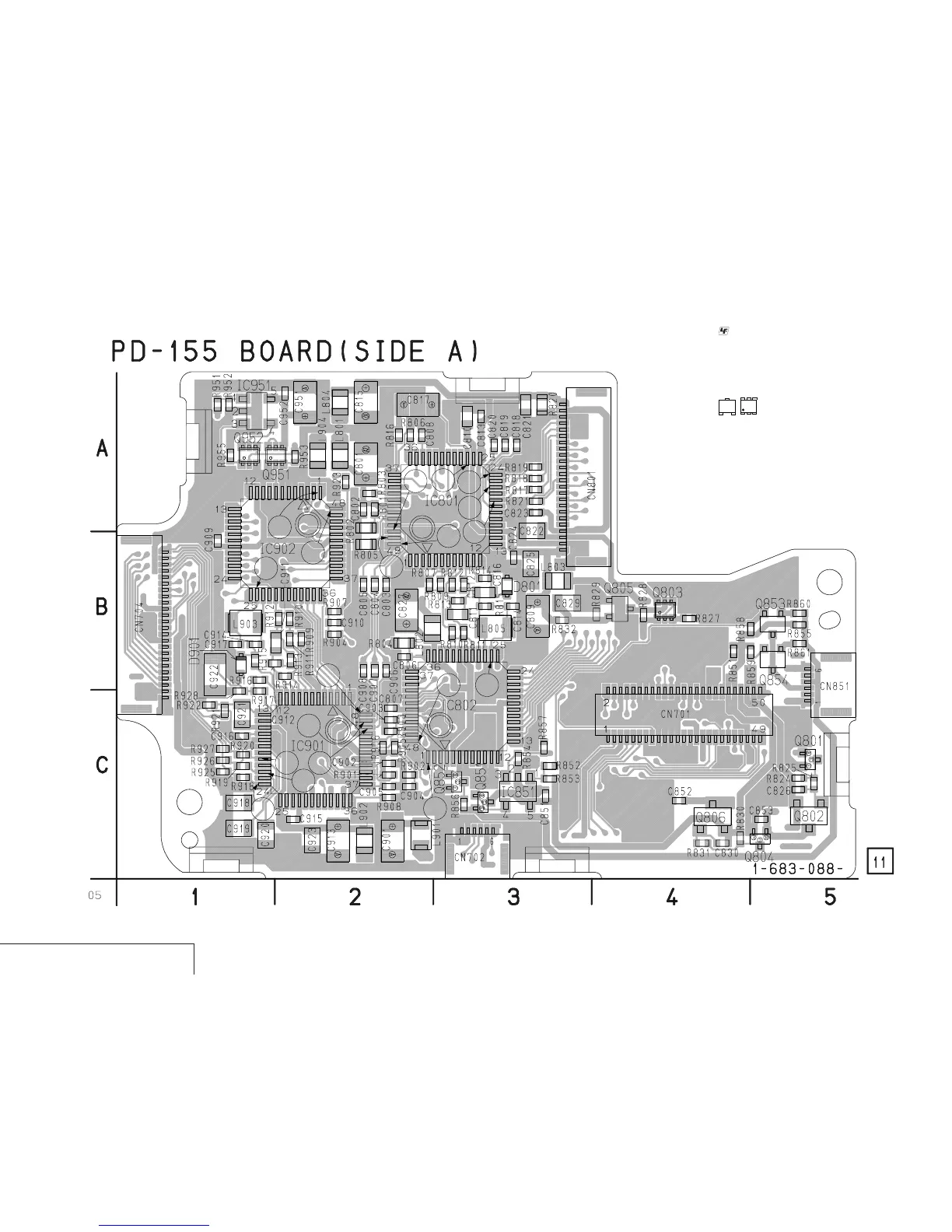

PD-155 (LCD DRIVE, TIMING GENERATOR) PRINTED WIRING BOARD
– Ref. No.: PD-155 board; 4,000 series –
