2-8

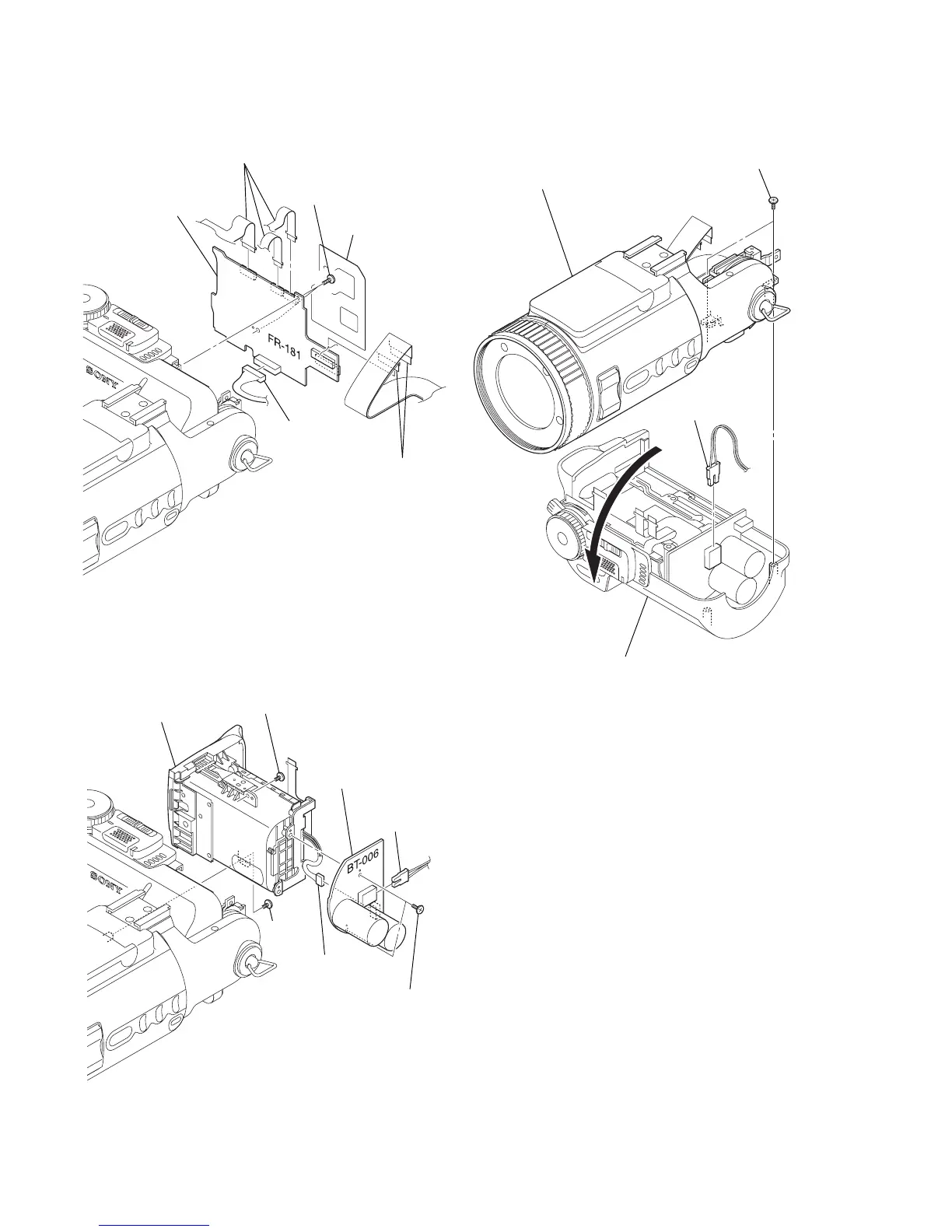

2-13. FR-181 BOARD
2-14. BT-006 BOARD
2-15. CABINET (L) ASSEMBLY
1 Three flexible boards
(CN304, 306, 307)
5 Two flexible boards
(CN301, 853)
6 Connector
(CN001)
4 FR-181 board
2 Spacer (FR)
3 Two screws
(DIA.1.7 × 4.5)
1 Connector
(CN404)
5 Connector
(CN402)
7 BT-006 board
6 Two screws
(DIA.1.7 × 4.5)
2 Screw
(M1.7)
3 Screw
(M1.7)
4 BT holder assembly
1 Turn the cabinet (front) assembly
in the direction of the arrow.
2 Connector
(CN404)
4 Cabinet (L) assembly
3 Two screws
(P M2)
Ver. 1.1 2002. 02
