DSC-F707
RESET
(ACCESS LED(RED))
S101
C
E
B
3
4-35
4-36
DC CONTROL, FRONT CONTROL, AUDIO, VIDEO AMP, CONNECTION
FR-181
• For Printed Wiring Board.
• :Uses unleaded solder.
• FR-181 board is six-layer print board. However, the patterns
of layers 2 to 5 have not been included in the diagram.
• There are a few cases that the part isn't mounted in this model
is printed on this diagram.
• See page 4-68 for printed parts location.
• Chip transistor
EB
C
31
5
5
2
46
543
12

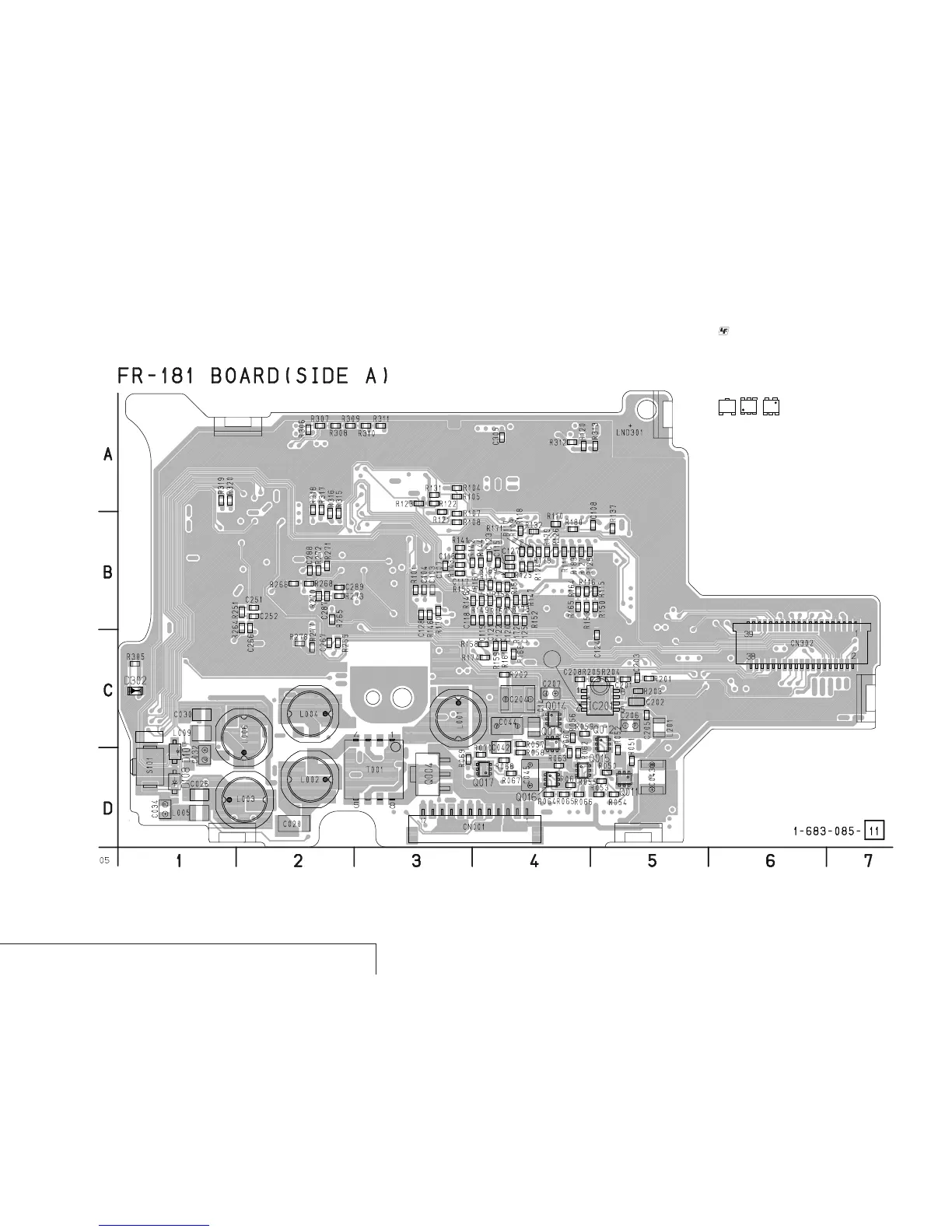

FR-181 (DC CONTROL, FRONT CONTROL, AUDIO, VIDEO AMP, CONNECTION) PRINTED WIRING BOARD
– Ref. No.: FR-181 board; 2,000 series –
To Next Page
