DSC-F707
2-10

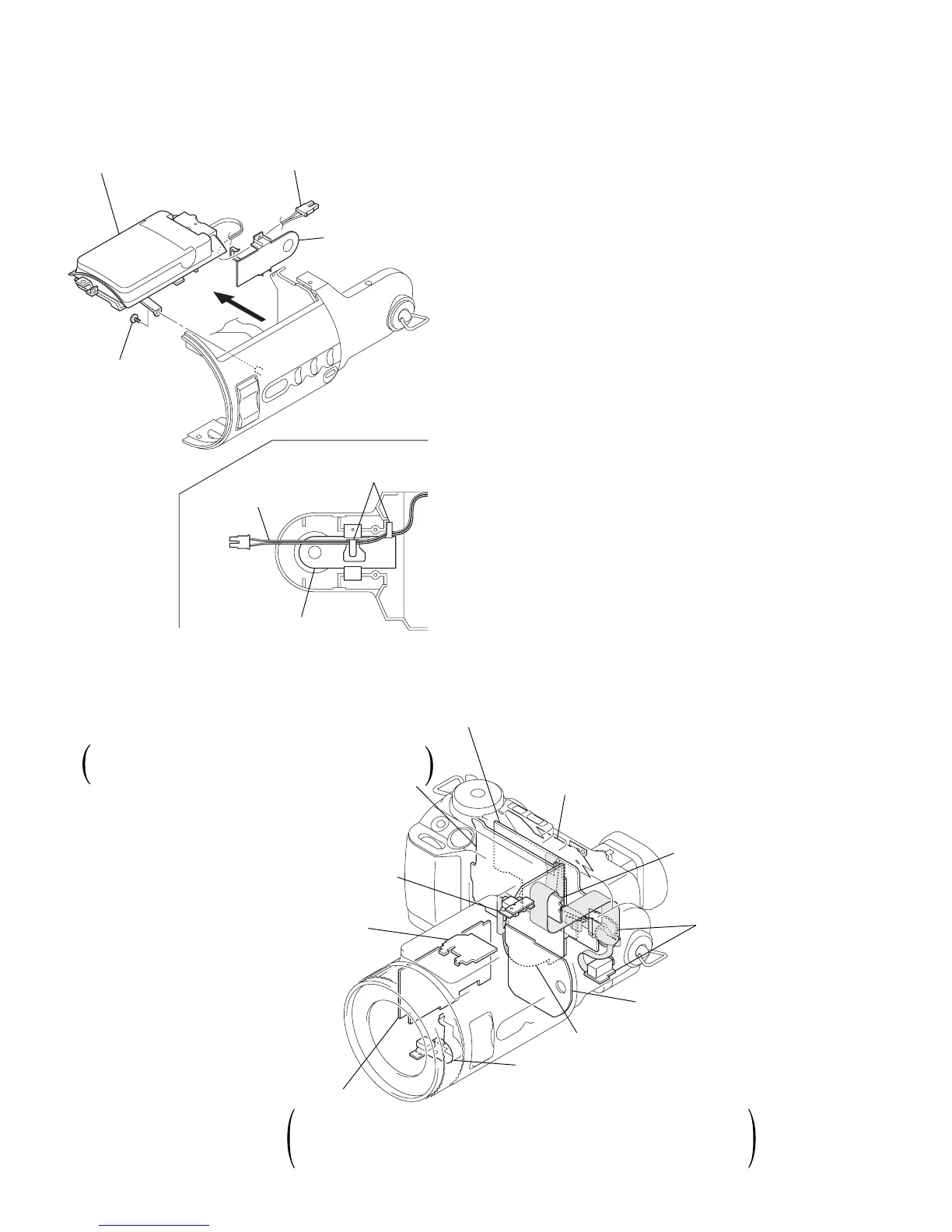

2-18. CIRCUIT BOARDS LOCATION
2-17. STROBOSCOPE ASSEMBLY
4 Stroboscope assembly
2 PT-130 harness
PT-130 harness
Hook the claw of FP guard (L).
1 FP guard (L)
FP guard (L)
3 Screw
(M1.7)
PT-130 HARNESS SETTING
FR-181
DC CONTROL, FRONT CONTROL, AUDIO,
VIDEO AMP, CONNECTION
BT-006
(BATT/STROBO CHARGE)
PD-155
(LCD DRIVE, TIMING GENERATOR)
SW-362
(CONTROL SWITCH)
AL-012
(A/V JACK)
LB-075
(EVF)
CD-355
(CCD IMAGER)
UJ-001
(USB)
AJ-004
(ACC JACK)
Flash unit
SY-072
CAMERA PROCESS, LENS DRIVE, LASER/IR LED DRIVE,
CAMERA DSP, MEMORY, SH DSP, FLASH MEMORY,
CLOCK GENERATOR
Ver. 1.1 2002. 02
