Sony DCR-PC103E User Manual

2-5
DCR-PC103E/PC104E/PC105/PC105E

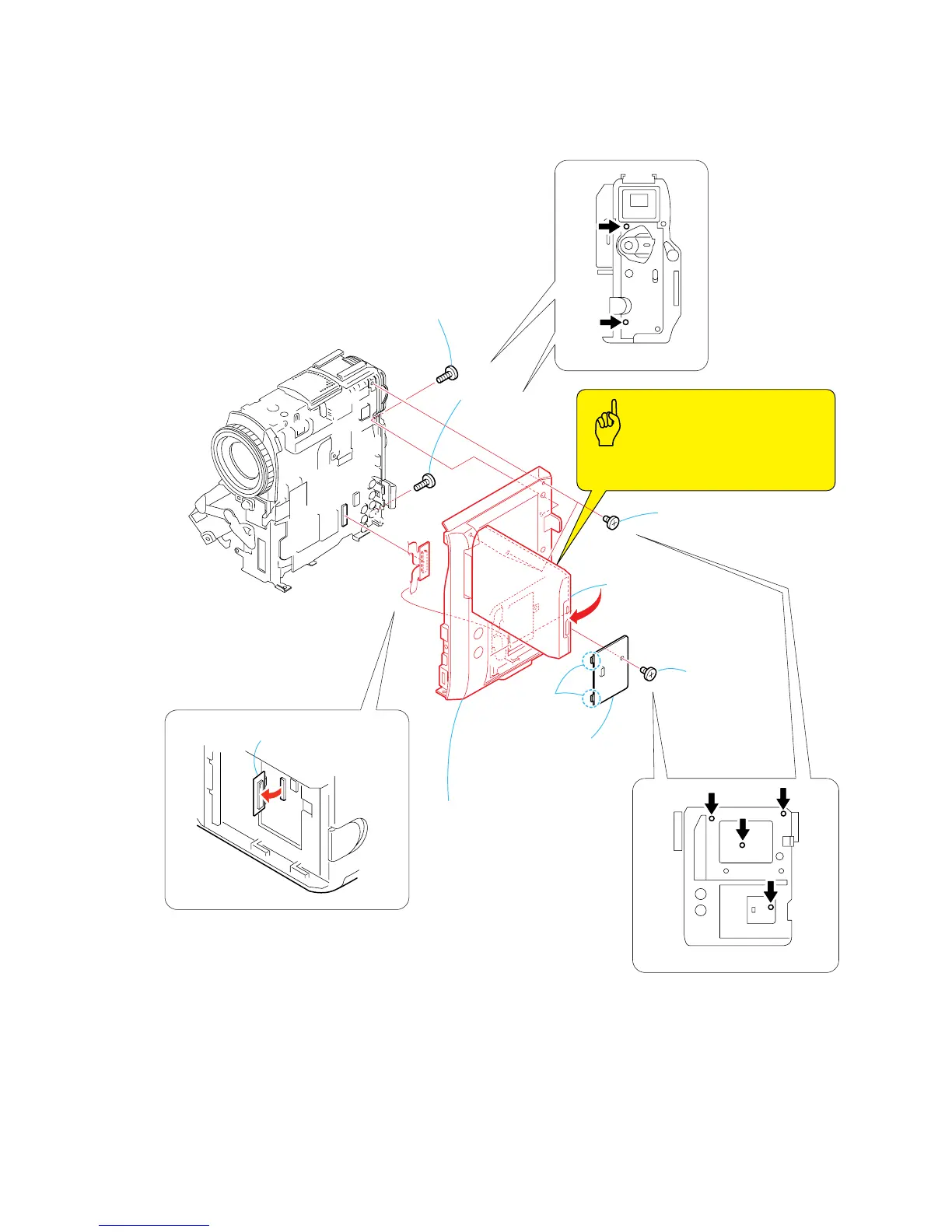

4 Remove the connector.
1 Screw
(M1.7
× 2.5),
lock ace, p2
7 Screw
(M1.7
× 4),
lock ace, p2
8 Screw
(M1.7
× 2.5),
lock ace, p2
6 Three screws
(M1.7
× 2.5),
lock ace, p2
5 Open the LCD unit.
2 Two claws
3 CPC lid
9 Cabinet (R) section
Caution
When installing the cabinet (R) section, install
it while the LCD unit is in the opened condition.
2-6. CABINET (R) SECTION
