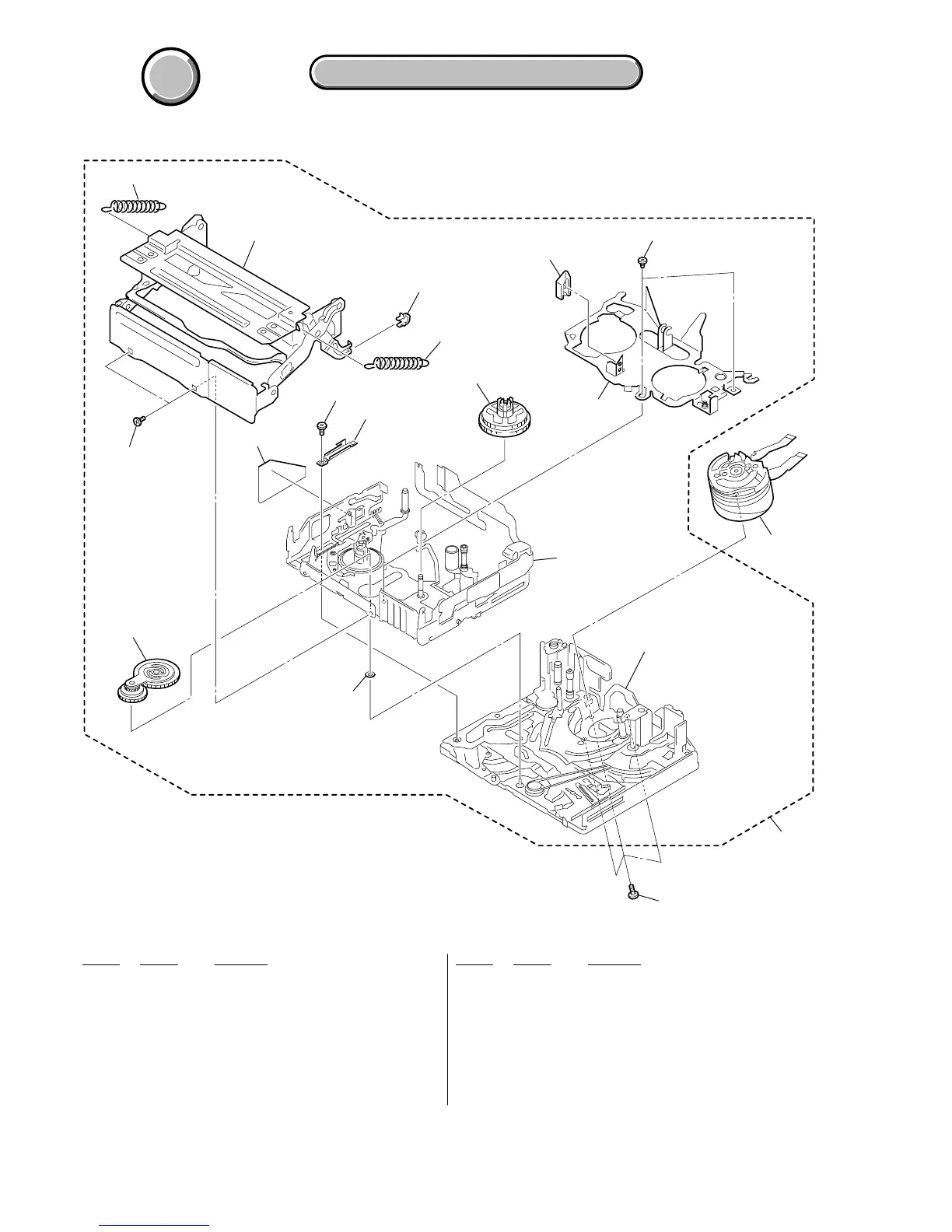

5-1-8. MECHANISM DECK OVERALL (Z100)
Ref. No. Part No. Description Ref. No. Part No. Description
701 X-3952-938-3 GEAR ASSY, GOOSENECK
702 3-075-097-11 SCREW (M1.4X1.4), SPECIAL HEAD
703 3-079-206-02 SPRING (POP UP S), TXTENSION
704 X-3952-939-4 COMPARTMENT ASSY, CASSETTE
705 3-079-367-01 DAMPER, CASSETTE COMPARTMENT
706 3-079-215-02 SPRING (POP UP T), EXTENSION
707 3-703-816-15 SCREW (M1.4), SPECIAL HEAD
708 3-080-545-01 COVER, SENSOR S
709 3-079-364-01 RETAINER, LS GUIDE
710 X-3952-937-1 TABLE ASSY, T REEL
711 3-079-366-01 RELEASE, REEL LOCK
712 X-3953-257-1 PLATE ASSY,RETAINER
713 A-7095-393-A MD (Z100) SUB ASSY
714 3-079-741-02 SCREW,DRUM FIXING
715 3-748-682-01 WASHER, T
M901 A-7048-981-A DRUM BLOCK ASSY (DEH-30A-R) (SERVICE)
701
702
703
704
705
707
707
708
709
710
711
712
713
714
706
M901
Mechancal chassis
block assembly
(See page 5-12)
LS chassis block assembly
(See page 5-11)
715
