2-19
DCR-PC103E/PC104E/PC105/PC105E

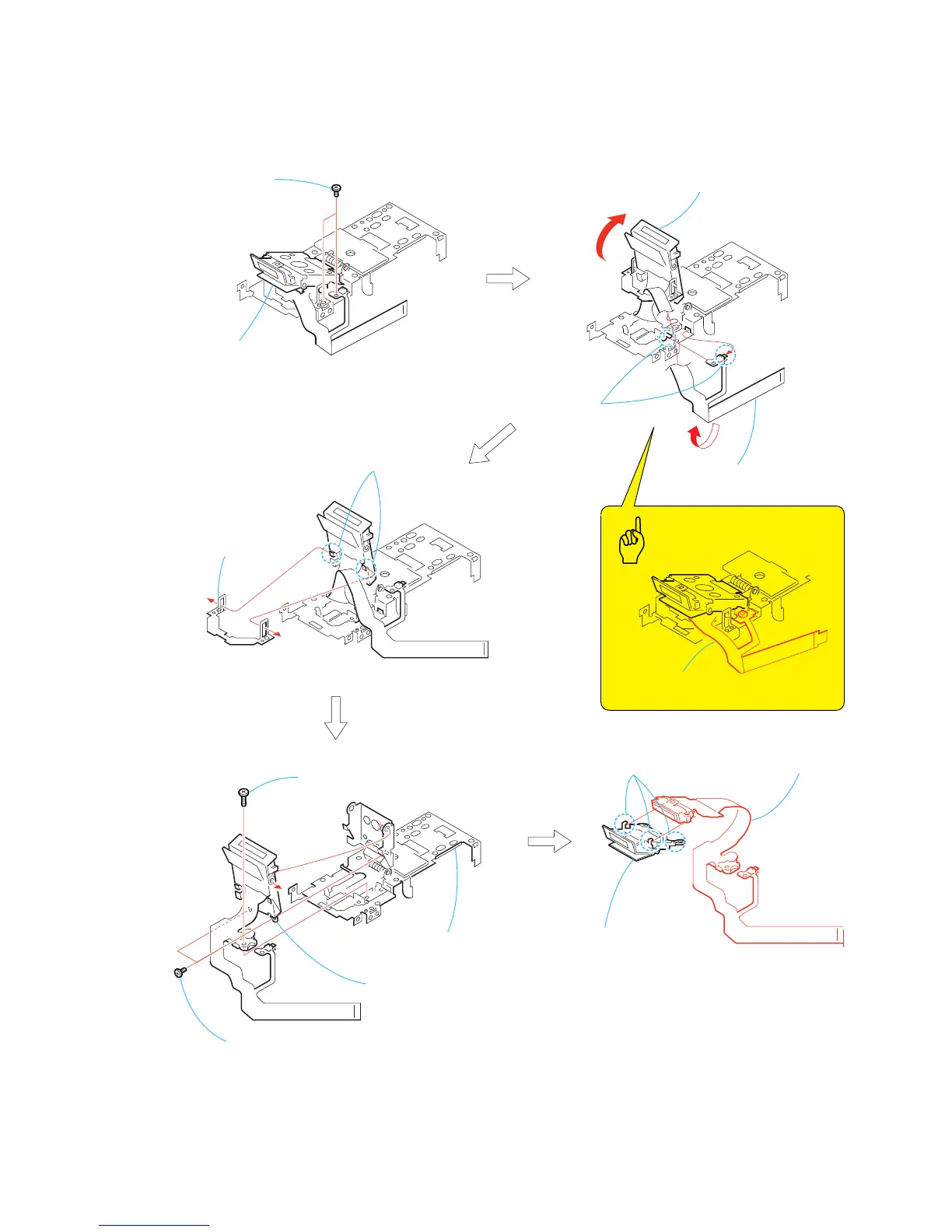

2-24. FLASH UNIT (FL4400) (PC105/PC105E)
1
Two EG grip screws
(M1.7
×
2.5)
2
Turn over the Flash unit (FL4400),
ST cabinet (lower) assembly,
ST stopper in the direction of the arrow
A
.
Flash unit (FL4400),
ST cabinet (lower) assembly,
ST stopper
Flexible board
(From the flash unit (FL4400))
3
Two claws
5
ST stopper
9
ST frame assembly (N)
qs
ST cabinet
(lower) assembly
6
Two claws
q;
Flash unit (FL4400),
ST cabinet (lower) assembly
qd
Flash unit
(FL4400)
qa
Three claws
7
Two EG grip screws
(M1.7
×
2.5)
8
EG grip screws
(M1.4)
Caution
4
Turn over the flexible board
in the direction of the arrow
B
.
B
A
To Next Page
