Sony DCR-PC103E User Manual

2-22
DCR-PC103E/PC104E/PC105/PC105E

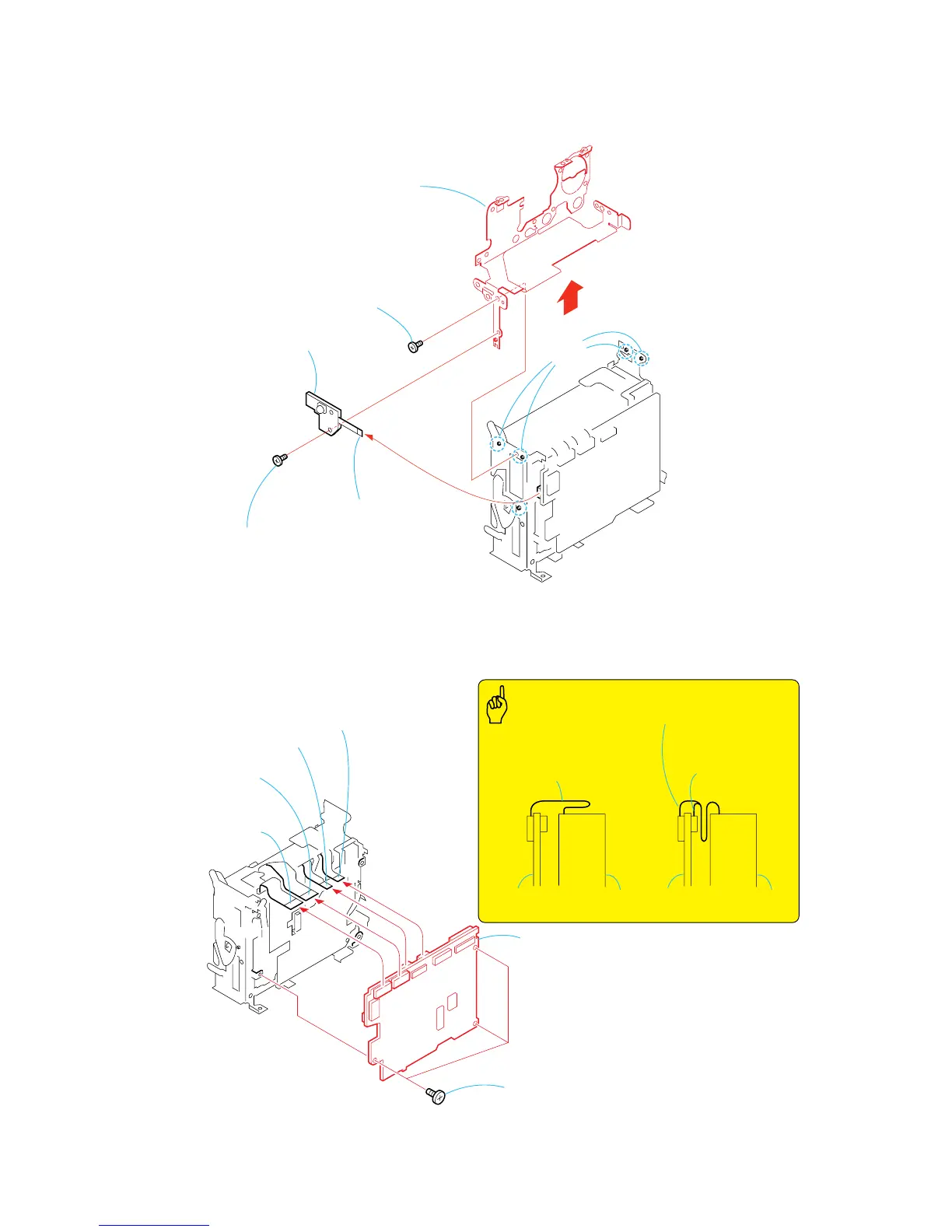

2-27.NS-018 BOARD, FK FRAME ASSEMBLY
VC-319
6 FK frame assembly
1 Screw
(M1.7 × 2.5),
lock ace, p2
4 Screw
(M1.7 × 2.5),
lock ace, p2
3 NS-018 board
2 NS-018 board
(8P)
5 Four
dowels
2-28. VC-319 BOARD
VC-319
3 Three screws
(M1.7
× 2.5),
lock ace, p2
6 VC-319 board
VC-319
board
Mechanism
deck
1 Flexible board
(from the capstan motor) (27P)
Flexible board
(from the capstan motor)
2 Flexible board
(from the sensor) (27P)
4 Flexible board
(from the drum motor) (10P)
5 Flexible board
(from the video head) (10P)
Flexible board
(from the sensor)
Flexible boards
(from the video head,
from the drum motor)
VC-319
board
Mechanism
deck
Caution
