DCR-PC103E/PC104E/PC105/PC105E

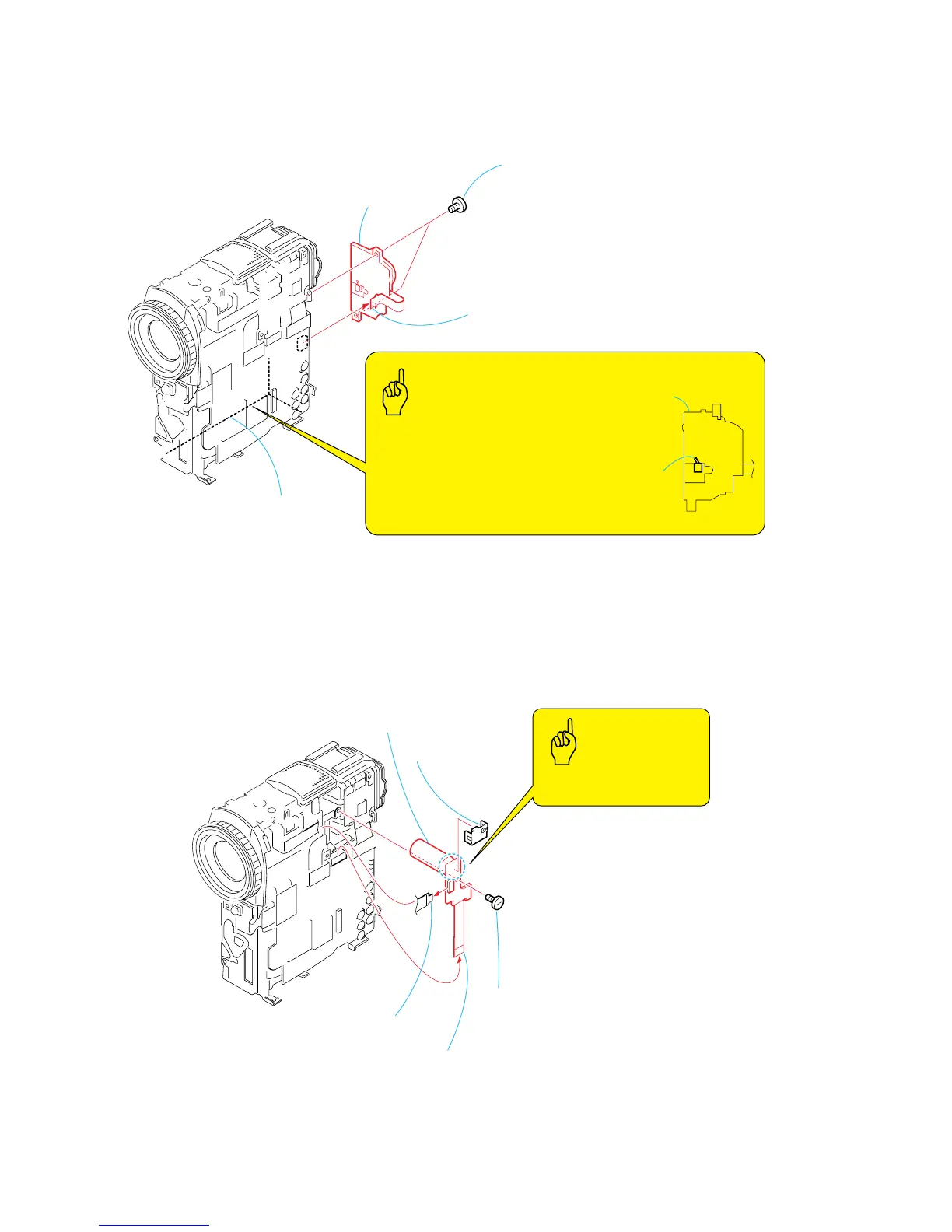

2-15. ST-084 BOARD (PC105/PC105E)
2-14. CONTROL SWITCH BLOCK (PS4400)
2 Control switch block
(PS4400) (10P)
3 Control switch block
(PS4400)
Open/close switch
If you install the Operation Switch
Block (PS4400) while the G Frame
Assy is left open, the open/close
switch will be broken. To install the
Operation Switch Block (PS4400),
be sure to install it after the G
Frame Assy is closed.
Control switch block
(PS4400)
G frame assembly
1 Screw
(M1.7
× 2.5),
lock ace, p2
Caution
3 Flash unit (FL4400)
(19P)
2 Condenser holder
5 ST-084 board
4 ST-084 board (16P)
Caution
Note: High-voltage cautions.
(See page 1-2)
1 Screw
(M1.7
× 2.5),
lock ace, p2
