Sony DCR-PC103E - Mechanism Deck (Z100)

2-23
DCR-PC103E/PC104E/PC105/PC105E

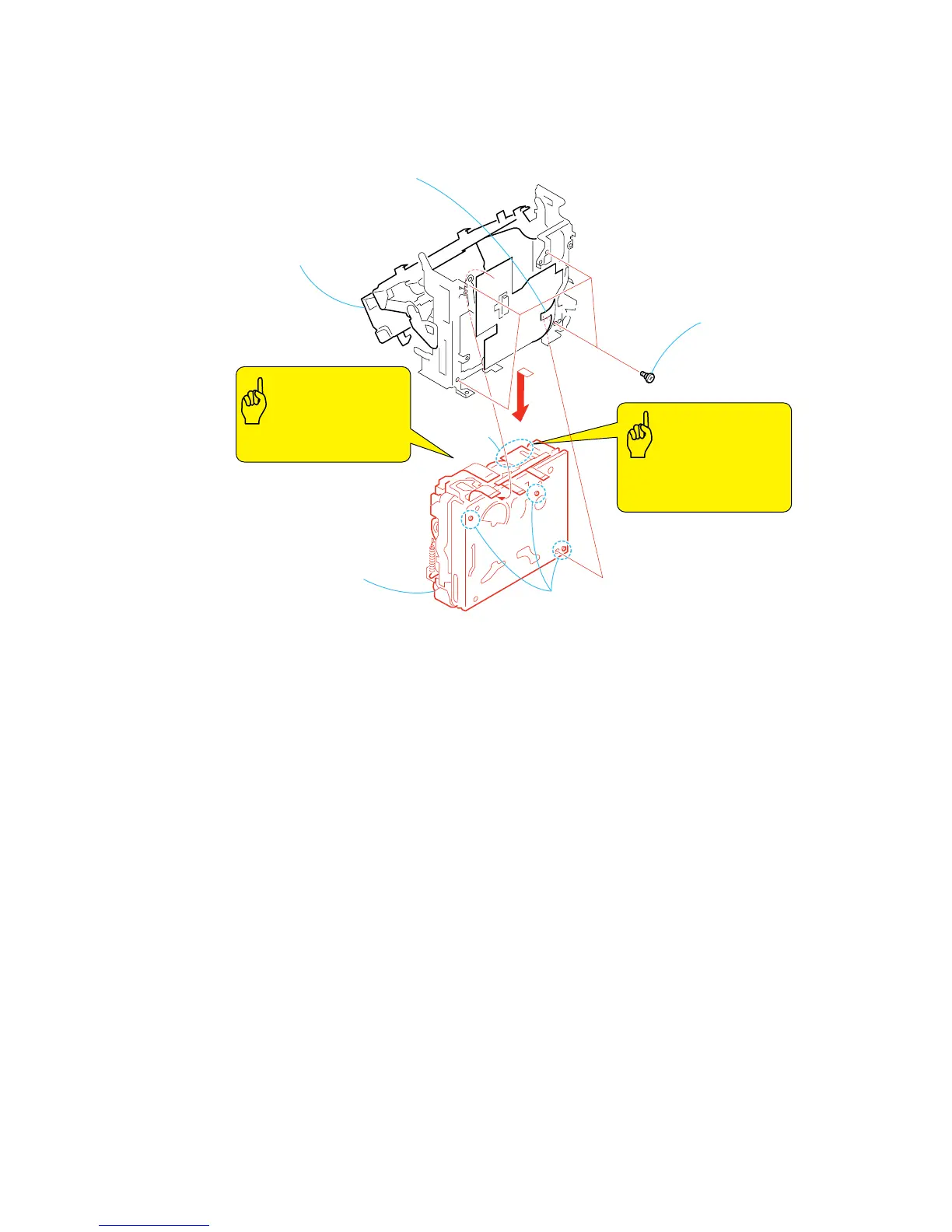

2-29. MECHANISM DECK (Z100)
1 Flip over the VC heat
insulation sheet
2 Four screws
(M1.4 × 1.5)
3 Open the G frame
assembly
A
B
4
Three dowels
Caution
Caution
Be careful not to
break the flexible board.
Be careful not to touch the
portion
B of the mechanism
deck.
5 Remove the mechanism deck
in the direction of the arrow A .
